Installation, Operating and Servicing
Instructions
Please make a note of your product details for
future use:
Date Purchased:_________________________
Model Number:__________________________
Serial Number:__________________________
Dealer:_________________________________
________________________________
_______
A34/038 R11

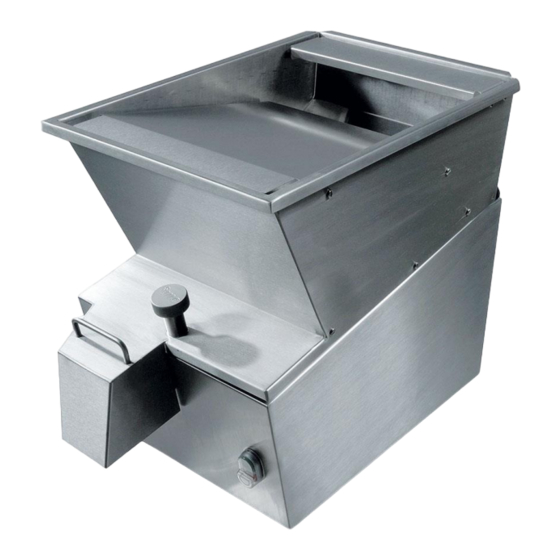

CHIPPER – CS-C1
ECN 4825 February 2021
Advertisement
Table of Contents
Related Manuals for IMC CS-C1
Summary of Contents for IMC CS-C1
- Page 1 CHIPPER – CS-C1 Installation, Operating and Servicing Instructions Please make a note of your product details for future use: Date Purchased:_________________________ Model Number:__________________________ Serial Number:__________________________ Dealer:_________________________________ ________________________________ _______ A34/038 R11 ECN 4825 February 2021...
-
Page 2: Table Of Contents
CONTENTS DELIVERY ......................1 INTRODUCTION ....................1 CHIPPER DIMENSIONS ..................1 INSTALLATION ....................2 PROCEDURE ....................... 2 ELECTRICITY SUPPLY CONNECTION .............. 2 COMMISSIONING ....................3 OPERATION ......................3 KNIFE BLOCK FITTING ..................4 CHANGE CHIP SIZES ..................5 CLEANING ......................5 CHANGING KNIFE BLADES ................ -
Page 3: Delivery
DELIVERY The packaged machine consists of: Chipper Unit, Comprising: Hopper Knife Block Main Unit Instruction Booklet Wall Plaque Please notify both the carrier and the supplier within 24 hours of receipt if anything is missing or damaged. Check that the correct machine has been supplied and that the voltage, marked on the rating plate, is suitable for the supply available. -
Page 4: Installation
The IMC Chipper has a top loading hopper into which potatoes can be tipped from either side or from the front. It is not handed, and no consideration need be given to its loading direction. -
Page 5: Commissioning
(green button). To stop the machine press the red button. One of the safety features provided on the IMC Chipper are the interlock devices that ensures that the machine cannot run unless both the knife block and the hopper are properly and fully in position. -
Page 6: Knife Block Fitting
resume operation by pressing the start button. Should a stone damage the knife blades they must be replaced as further use could break the blades. This Chipper is designed for batch process work; switch the machine off once all the potatoes have been cut. The motor is fitted with a thermal trip that will stop the machine if the motor overheats. -
Page 7: Change Chip Sizes
CHANGE CHIP SIZES To change to a different size of chip, change the knife block assembly. Spare knife block assemblies are available from Lincat. Open the hopper, lift out the knife block and replace with the alternative selected. Knife blocks are available in the following sizes from the standard range: 12mm, 14mm, 14 x 17mm and 17 x 21mm. - Page 8 For optimum performance Lincat recommend changing the blade pack every 6 months, or sooner depending on usage. NOTE: Take care when handling the knife block. The blades are sharp.
-
Page 9: Wiring Diagram For Chipper
WIRING DIAGRAM FOR CHIPPER... -
Page 10: Exploded View
EXPLODED VIEW... -
Page 11: Electrical Control Parts
ELECTRICAL CONTROL PARTS... -
Page 12: Spares List
SPARES LIST ITEM PART NO DESCRIPTION S61/150 HOPPER ASSEMBLY, INCORPORATING: M81A INTERLOCK BODY & MAGNET A12/011 INTERLOCK SPRING L61/024 HOPPER KNOB D26/017 INTERLOCK PIN S61/184 21x17mm KNIFE BLOCK S61/145 12mm KNIFE BLOCK S61/151 14mm KNIFE BLOCK S61/144 14x17mm KNIFE BLOCK S61/183 21x17mm KNIFE PACK ASSY S61/134... -
Page 13: Parts List Continued
PARTS LIST CONTINUED… 11o D25/004 WASHER M5 SHAKEPROOF 11p D20/038 NUT M5 FULL S.S. 11q D25/062 LOCK WASHER M8 S.S. D20/014 M8 FULL S.S. NUT K08/043 GASKET STRIP S61/177 MOTOR ASSY, INCORPORATING: 13a E61/014 MOTOR MOUNTING BRACKET 13b D19/032 SCREW M5 X 12MM HEX S.S. 13c D19/115 SCREW M6 X 30MM HEX S.S. -
Page 14: Guarantee
GUARANTEE This unit carries a comprehensive UK mainland 2 year warranty. The guarantee is in addition to, and does not diminish your statutory or legal rights. The guarantee does not cover: Accidental damage, misuse or use not in accordance with the manufacturer’s instructions. -
Page 15: Service Information
SERVICE INFORMATION For help with the installation, maintenance and use of your Lincat equipment, please contact our service department: UK: 01522 875520 For non-UK customers, please contact your local Lincat dealer All service work, other than routine cleaning should be carried out by one of our authorised service agents.
