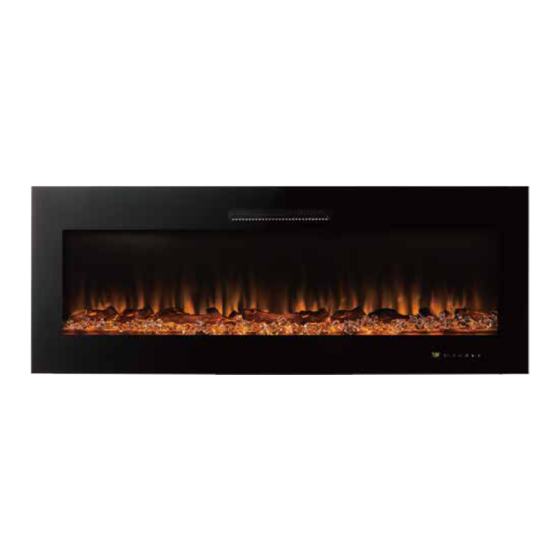

50 Inch Mounted Electric Fireplace
User Instruction
CONSUMER SAFETY INFORMATION
Read this manual before installing and operating this appliance.
Failure to follow these instructions may result in electric shock, fire property, or personal injury.
Do not store or use gasoline or other flammable liquids in vicinity of this appliance.

Advertisement

Table of Contents
loading

Summary of Contents for OAK PLUS

  • Page 1 50 Inch Mounted Electric Fireplace User Instruction CONSUMER SAFETY INFORMATION Read this manual before installing and operating this appliance. Failure to follow these instructions may result in electric shock, fire property, or personal injury. Do not store or use gasoline or other flammable liquids in vicinity of this appliance.

  • Page 2: Important Safety Information

    IMPORTANT SAFETY INFORMATION! WARNING 1. Read all instructions before using this heater! 2. This heater is hot when in use. To avoid burns, DO NOT let bare skin touch hot surfaces. If provided, use handles when moving this heater. Keep combustible materials, such as furniture, pillows, bedding, papers, clothes, and curtains at least 3 feet (0.9m) from the front of the heater, and keep them away from the sides and rear.
  • Page 3 NEVER use a wall mount bracket from another manufacturer. • • This product is not intended to be a primary heat source. It is for supplemental heat only. • INDOOR use only! NEVER use this heater outdoors! Doing so may result in electric shock! Risk of electric shock! DO NOT OPEN! No user-serviceable parts inside! •...

  • Page 4: Parts & Hardware

    PARTS & HARDWARE B-Wood Screws C-Drywall anchors A-Fireplace D-Decorative Crystals E-Log set Remote control Specification and Dimension PRODUCT DIMENSIONS Model Number 50" 19" 5.1" 46. 5" 18" 10.6" 43.3" 2050FU 110CM 127CM 48CM 13CM 118CM 45.5CM 27CM User Instrustion...
  • Page 5 Features • 50 inch Wall mounted fireplace. • 12 hours timer. • Fan heater with 2 heat setting options. With Log flame and Crystals flame. • • Black Flat tempered glass front panel. • Big front panel for better viewing. Adjustable flame brightness.
  • Page 6 MINUMUM MANTEL CLEARANCES WARNING WHEN USING PAINT OR LACQUER TO FINISH THE MANTEL, THE PAINT OR LACQUER MUST BE HEAT RESISTANT TO PREVENT DISCOLOURATION. MANTEL 11.8" (300mm) FLOOR SIDE VIEW RECESSED TO WALL INSTALLATION WARNING Only qualified person can perform the installation. User Instrustion...
  • Page 7 STEP A. Select a dry wall to open a hole for fireplace box. Size of hole as below chat. Framing Hole Size Model Number EF - 2050FU 47.5" (120.6cm) 19" (48.3cm) STEP B. Punch 4 holes around the wall and install 4 Drywall anchors (Part C) , please drive C completely into the wall.
  • Page 8 STEP F. Take off the two screws in both sides of fireplace. Figure (C) If the appliance is fully recessed into the wall: • Use the 4 screws (provided) to lock the appliance into wall with the existing two side flanges, see Figure (F) •...
  • Page 9 3. Install 4 wood screws,taking care 4. Two people lift the fireplace and not to screw them in completely. hang the 4 clipson the back on the Screw head exposed 0.12-0.19inch 4 dry wall anchors. distance. Logset/Crystal Ember Installation WARNING Only qualified person can perform the installation.
  • Page 10 4. Install the glass plate. WARNING Read and understand this entire owner's manual, including all safety information, before plugging in or using this product. Failure do to so could result in electric shock, fire,serious injury, or death. OPERATION INSTRUCTION: Plug in a power plug hear a long buzzer and the electric fireplace is in standby mode. Press the POWER key on the keyboard to show red, and the rest of the display is not displayed.
  • Page 11 ICONS FUNCTIONS Switch on/off button, turn on operation: click the POWER button on keyboard or on remote control with a short buzzer sound, the electric fireplace starts to work, the POWER button on the keyboard with blue color, other keys with white color, the LED lights on the front and back start to light up, the display window shows the room temperature.
  • Page 12 Temperature setting increase buttons: Temperature setting range is 60°F (15°C) -97°F (36°C), (the default setting temperature is 72°F/22°C) , press the UP button on the keypad or remote control by each time, the temperature will add 1 °F/1 °C. lf long time press on keypad (don't lose the button, then the Numbers changes) set temperature will continue to increase until maximum.

  • Page 13: Temperature Limiting Control

    13. Room temperature display error correction function: When in use of the heater, if the heater display the actual room temperature in error, you can use the temperature display error correction function to change the display window room temperature, through long time press TIME key on the keypad by 3 seconds, then the display window of room temperature normally light change to temperature correction display, the digital display is in the flashing display mode.

  • Page 14: Care And Maintenance

    Remote Control Battery Information Small remote control uses one CR2025 battery (included) Remote control battery used depends on the remote control type NOTICE which selected above. Remote control battery used depends on the remote control type NOTICE which selected above. NEVER dispose of batteries in fire.

  • Page 15: Maintenance

    Vents: Use a vacuum or duster to remove dust and dirt from the heater and vent areas. • • Clean the exterior of the fireplace with a slightly damp cloth or duster. Maintenance Risk of electric shock! DO NOT OPEN! No user-serviceable parts inside! ALWAYS turn the heater OFF and unplug the power cord from the outlet before cleaning, performing maintenance, or moving this fireplace.
  • Page 16 Problem Possible Cause Solution 1. Fireplace turns 1. Fireplace has overheated and 1. Pull the plug, wait 5 minutes to plug off and will not safety devise has caused it back in and turn it on. turn on. thermal switch to disconnect or home circuit breaker has opened.
