Summary of Contents for SainSmart 101-40-173

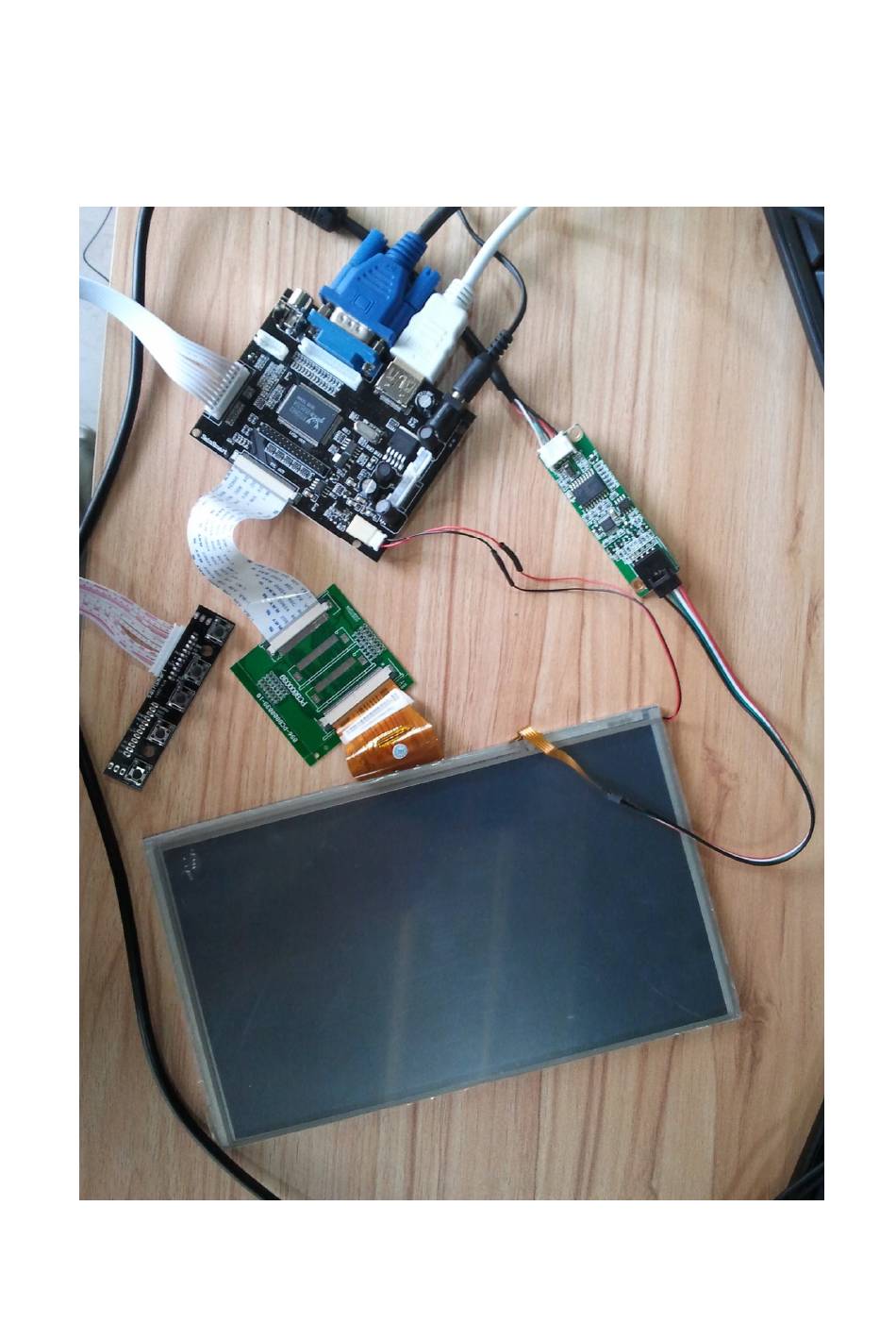

- Page 1 Assembly 1. The complete picture after assembly...
- Page 3 2. Get the product in hand, assembly steps are as follows：First, face up flat the main screen, and connect the screen data cable to the small adapter board, be sure to insert the black clip card of two ends of the slot into inside. IF the card is not tight enough, it may cause abnormal display. In the tutorials, all have clips apply the same settings.
- Page 6 3. Connect the other end of the adapter plate to a small boost driver board.
- Page 7 4.Connect the “screen menu control button board” to the “boost driver board”. Please do not anti-plug. 5.Connect the power supply line of the screen to the “boost driver board”. Please do not anti-plug.
- Page 8 5.Connecting the touch USB cable, Please do not plug it in the opposite direction. The easy way to check is to straighten the touch screen control cable flat and “the flexible flat cable” with ‘silk printing’ should face up. The order of 4-pin plug wire is black, green, white, and red, as below shown.
- Page 9 Then, connect the other end of the 4-pin USB cable with the control board. Please do not anti-plug.
- Page 10 Connect the other end of the USB control board to the a standard USB interface...
- Page 11 Connect 12V DC power supply and HDMI VGA plug to the boost driver board. Reminder: before power supply to the boost driver board, take away all conductors, under the boost drive board, which may cause a short circuit, such as electronic components, metal plates, and other electronic boards.
- Page 12 At this point, the connection assembly of the whole equipment has completed. Tutorials 1. Plug the HDMI of the signal source pc (windows ubuntu) raspberry pcduino (here HDMI cable needs connected before powered) or VGA cable into the corresponding boost driver board interface tightly.
-
Page 13: Windows System
Windows System Connect PC / laptop's video output cable to the boost driver board, and connect the USB cable of touch screen driver to the PC / laptop, and then install XP-win7-win8 driver.rar. You can calibrate the screen after the installation is completed. LINUX Similarly, connecting with linux kernel system, connect the video output devices to the boost driver board, and connect the USB cable of touch screen drive to the device. - Page 14 1. Press ctrl + shift + t, open a terminal window, enter sudo uname --m ， press enter 2. 2 If shows i686, means it installed the 32-bit operating system If shows i686, means it installed the 64-bit operating system After install the driver, calibrate the touch screen, then it can be used normally.
- Page 15 Please compile the system image ( Recommend to use 8G card to Import mirror, the 4G card may be not enough ) on latest debain-02-09 version. Network location https://s3-ap-northeast-1.amazonaws.com/sain-amzn/20/20-011-208/raspbian0209_4G_touchsc reen.zip refresh system and pie，using “ lsusb” Start the raspberries command to check if the touch screen is recognized or not : pi@raspberrypi ~ $ lsusb Bus 001 Device 002: ID 0424:9512 Standard Microsystems Corp.
- Page 16 ， The screen will have a notice and mention you to click the Small fork diagonally After you clicking, the ，as following： screen will prompt a adjustment of information Calibrating EVDEV driver for “eGalax Inc. USB TouchController” id=8 current calibration values (from XInput): min_x=1938, max_x=114 and min_y=1745, max_y=341 Doing dynamic recalibration: Setting new calibration data: 121, 1917, 317, 1741...
- Page 17 pi@raspberrypi ~ $sudo nano /usr/share/X11/xorg.conf.d/01-input.conf Restart the raspberries pie, then you can enjoy your touch screen well.
