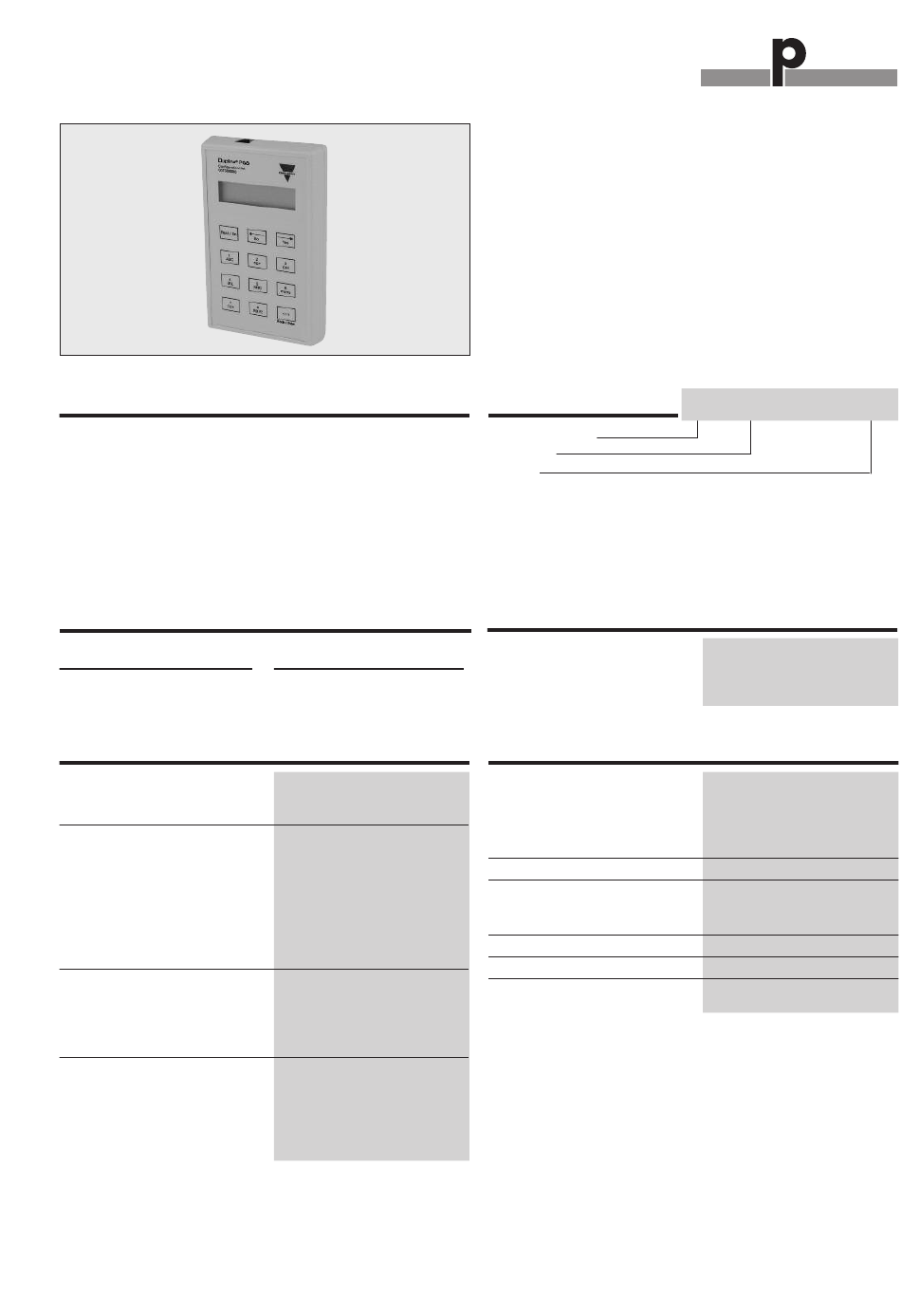

Carpark
Configuration and Test Unit
Type GP 7380 0080
Product Description
Configuration and Test/ Sim-
ulations Unit for Carpark.
The configurator configures
the
Carpark
Sensors
GP622022xx and monitor
units GP34829091.
®
Monitors the Dupline
bus in
GTU mode and are able to
Type Selection
Supply
Internal battery
Product Specifications
Display
Type
Height of dots
Keyboard
No. of keys
Channel keys
Command keys
Cable 1
GP73800080 connector
Monitor or sensor
Programmer cable
Cable 2
GP73800080 connector
Dupline® Bus
Test cable
Specifications are subject to change without notice (12.12.2008)
Dupline®
®
is a registered trademark. A product of the CARLO GAVAZZI Group
simulate the precense of
sensors.
Highly recommended for
Carpark configuration, trou-
bleshoothing and mainte-
nance
Ordering no.
GP 7380 0080
2 x 16 characters
LCD
5 mm
Tactile keys
12
1-8
« ← » « → » (scroll up/down)
« NO », « YES », « READ/ON »
Note: Command key 0/9
performs the function as
mode/Enter in GTU mode.
GP73800080 to sensor or
monitor
1 6/6 modular plug
1 6/6 modular plug
GAP-CAB
®
GP73800080 to Dupline
3 mm jack socket
GRIP
GTU8-GRIB-CAB
• Portable Configuration and Test Unit
• Configures the Carpark sensors GP622022xx
• Configures the Carpark monitor GP34829091
• Monitors the status of Dupline
• LCD-display
• 12-key tactile keyboard
• Supplied by standard 9V battery
• Multi calibration of the Carpark sensors
• Possibility of simulating sensors
Ordering Key
®
Type: Dupline
Type no.
Supply
Supply Specifications
Power supply
Type
Battery Life Time (Sleep)
General Specifications
Environment
Degree of protection
Pollution degree
Operating temperature
Storage temperature
Humidity (non-condensing)
Mechanical resistance
Shock
Vibration
Dimensions (l x w x d)
Material
Weight
Du line
Fieldbus
Installationbus
®
addresses
GP 7380 0080 709
9V battery (not included)
6LR61
Typ. 2 years
IP 40
3 (IEC 60664)
0° to +50°C (+32° to +122°F)
-20° to +60°C (-4° to +140°F)
20 to 80%
15 G (11 ms)
2 G (6 to 55 Hz)
145 x 90 x 28 mm
ABS, grey
250 g excluding battery
®
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the Carpark GP 7380 0080 and is the answer not in the manual?

Questions and answers

Summary of Contents for Dupline Carpark GP 7380 0080

  • Page 1 Type GP 7380 0080 • Portable Configuration and Test Unit • Configures the Carpark sensors GP622022xx • Configures the Carpark monitor GP34829091 ® • Monitors the status of Dupline addresses • LCD-display • 12-key tactile keyboard • Supplied by standard 9V battery •...

  • Page 2: Mode Of Operation

    In GTU mode the unit can monitor the between “Normal” mode or “Lane” tion between the Slave monitors and ® Carpark units on the Dupline bus. mode. the Master monitor is named the L2 Pressing the ”Read/ On” button powers bus.
  • Page 3 A small system has less than ® 240 Slave monitor connected. If a Dupline channels. If, for some reason large system is selected then there are there is a mismatch with the correct...
  • Page 4 The channel status of the two ® selected groups can now be moni- - Mode 2 - Able to two Dupline tored, but changing the channel status groups. * See note through the keys «1» ... «8» only...

  • Page 5: Dditional Information

    Do not plug in the Jack connector take out the PCB, change the 9V bat- ® tery and then reassemble the unit. when it is connected to Dupline the configuration unit is ON. This will cause a short-circuit of the two wires. Note: If the Dupline ®...
