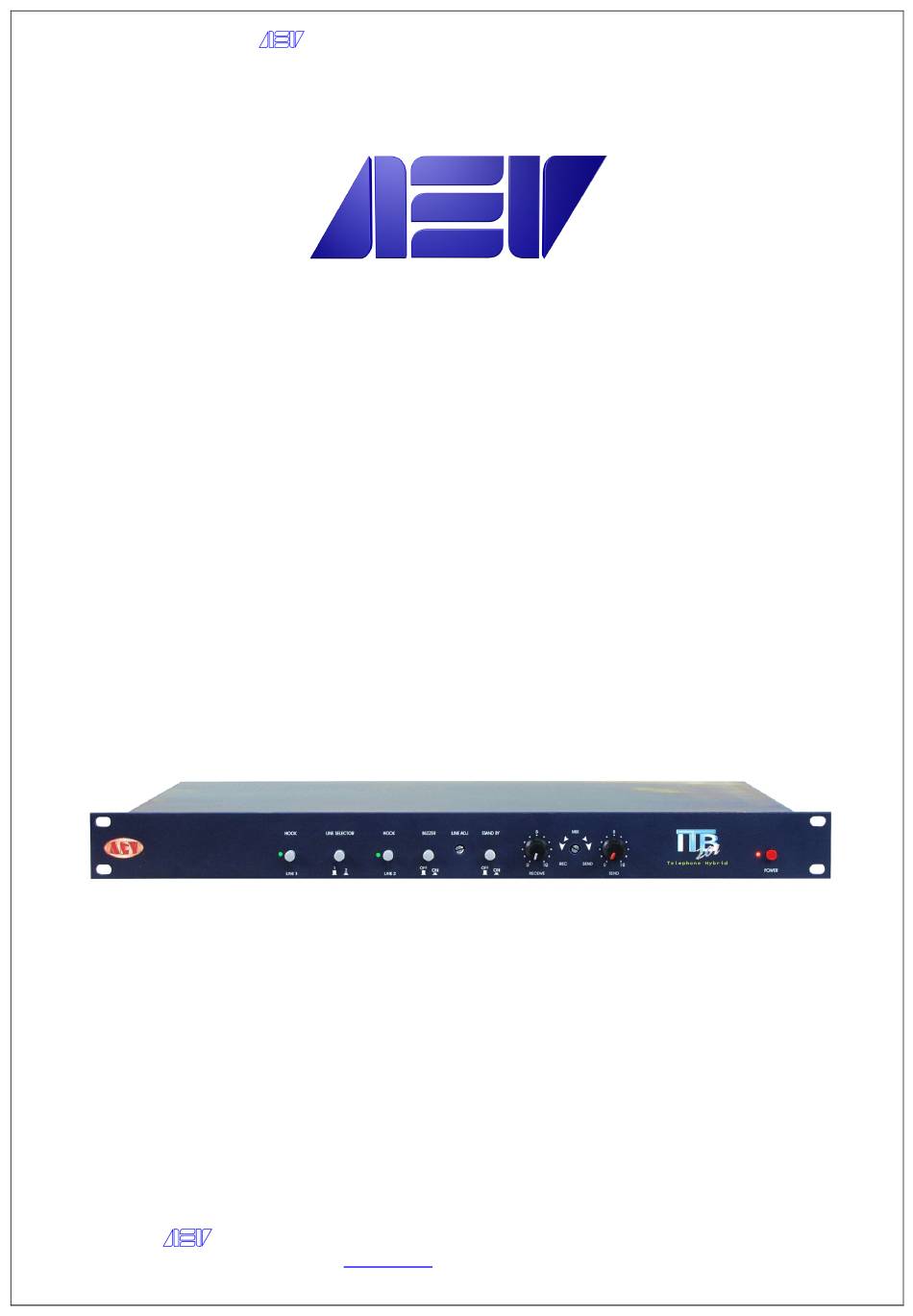

- Page 1 AEV ITB201 - dual telephone hibryd AEV ITB 2O1 Dual Telephone Hybrid AEV Broadcast srl - via della Tecnica 33, 40050 Argelato Bologna ITALY www.aev.eu info@aev.eu...
- Page 2 (if required) the name of the employee at the AEV SERVICE Dept. you have spoken to. No repairs will be made if the cost of shipment is charged to AEV. In this case, we will not accept the delivery.
- Page 3 AEV ITB201 - dual telephone hibryd Shipping Instruction When shipping the equipment to AEV, use the original package in order to be certain that it will be fully protected during handling If you need the original package, call us for a new one.
- Page 4 The rear panel........6 Connection to mixer and lines......7 Line Hook..........7 Adjusting level........7 Line compensation ........7 Technical data........7 Audio levels..........7 Hybrid circuit........7 General Data..........8 Connection..........8 Remote..........8 AEV Broadcast srl - via della Tecnica 33, 40050 Argelato Bologna ITALY www.aev.eu info@aev.eu...
- Page 5 This is particularly necessary for Meetings General Features AEV ITB-201 MKII is a studio telephone hybrid. It is designed in a 19", 1 unit rack mount. ITB-201 MKII allows the connection of 2 phone lines individually commutable during transmission. By means of an extra telephone, to be plugged into 2 special connectors, you may call or receive on both lines.
-
Page 6: General Description
RF, as long as the high frequency units have been correctly connected. The AEV ITB-201 MKII is anyhow fitted with RF filters on its inputs in order to eliminate annoying interference. Gas discharge tubes are fitted to the telephone lines to guarantee immunity from static charges or over-voltage. - Page 7 AEV ITB201 - dual telephone hibryd Connections to mixer and lines The connection of the AEV ITB-201 MKII to 2- wire telephone lines is made by inserting the telephone cable into the corresponding socket on the ITB-201 MKII using a standard telephone line connector.
- Page 8 9 - Rem 1 (active low TTL input : internal pull-up 4K7) + 5 Volt (50 mA max) LED 1 (50 mA max) LED 2 (50 mA max) AEV Broadcast srl - via della Tecnica 33, 40050 Argelato Bologna ITALY www.aev.eu info@aev.eu...
