5485C HIGH-TEMPERATURE VELOCITY TRANSDUCER
Installa on Manual

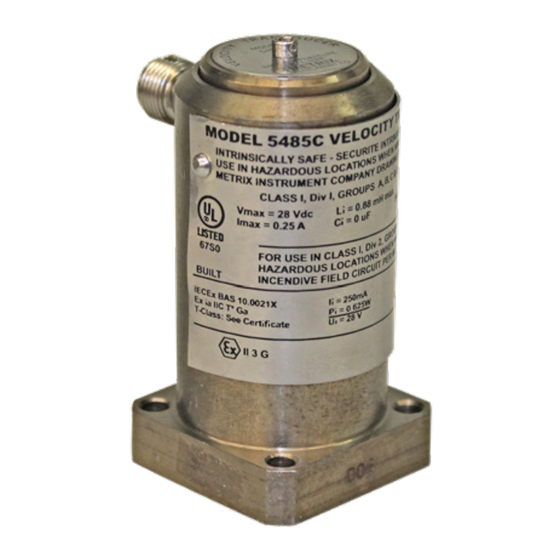

2-PIN CONNECTOR VERSION
(requires ma ng Model 4850-XXXX cable)
FIXED ARMORED CABLE VERSION
1180
DOC # M8109 • REV K (Feb 2015)

OVERVIEW

The Metrix 5485C High-Temperature Veloc-
ity Sensor is suitable for use in temperatures
up to 375 C. It is designed for gas turbines
and other machinery with high surface tem-
peratures where a velocity signal is desired.
The sensor's moving-coil design requires no
external power as it self-generates a signal
propor onal to vibra on velocity.

FEATURES

• Self genera ng, no power required
• Stainless Steel Housing
• Zero fric on - infi nite analog resolu on

APPLICATIONS

• Large industrial gas turbines
• Furnace fan monitoring

HAZARDOUS AREAS

UL intrinsically safe for Class 1, Div. 1, Grps
(A-D); Non-incendive for Class 1, Div. 2,
Grps. (A-D). CSA intrinsically safe for: Class
1, Div. 1, Grps (A-D); ATEX/IECEx intrinsically
safe for: EEx ia IIC T1-T6 Ga.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 5485C and is the answer not in the manual?

Questions and answers

Summary of Contents for Metrix 5485C

  • Page 1 5485C HIGH-TEMPERATURE VELOCITY TRANSDUCER Installa on Manual OVERVIEW The Metrix 5485C High-Temperature Veloc- ity Sensor is suitable for use in temperatures up to 375 C. It is designed for gas turbines and other machinery with high surface tem- peratures where a velocity signal is desired.
  • Page 2 INSTALLATION The sensi ve axis of the transducer can be oriented in any direc on. To ensure clean response to high frequency vibra ons, the transducer must be securely mounted to a fl at machined surface using four #6 (or 3mm) socket head screws. If a bracket is required, it should be of rigid construc on to prevent spurious mechanical resonances in the pass band.
  • Page 3 Doc# M8109 • REV K (Feb 2015) Page 3 of 8...
  • Page 4 Doc# M8109 • REV K (Feb 2015) Page 4 of 8...
  • Page 5 Doc# M8109 • REV K (Feb 2015) Page 5 of 8...
  • Page 6 Doc# M8109 • REV K (Feb 2015) Page 6 of 8...
  • Page 7 SENSOR VERIFICATION CALIBRATION PROCEDURE Mount the 5485C on a shaker table and verify the RMS output per table below. CALIBRATION VERIFICATION TABLE 1 ips peak @ 150Hz Calibrated Sensi vity Calibrated Sensi vity RMS Output mV mV/in/s mV/mm/s Min/Max. 4.14 67/81 5.71...
  • Page 8 “Crossed-Out Waste Bin” label affi xed to this product is a reminder to dispose of this product in accordance with local WEEE regula ons. If you have ques ons about the disposal pro- cess, please contact Metrix Customer Service. info@metrixvibra on.com www.metrixvibra on.com...
