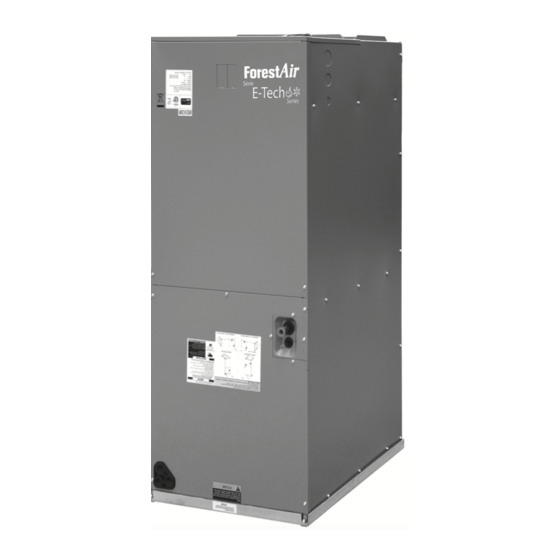

Air Handlers : FDAH-24HDC-AHU, FDAH-36HDC-AHU
Outdoor Units : FDAH-24HDC-CDU, FDAH-36HDC-CDU
Electric Heaters : ET-1500, ET-2000
Sunrise Tradex Corp.
Saint-Mathieu-de-Beloeil, Quebec, Canada
ETECH-FDAH-18011
Installation Manual
FDAH-48HDC-AHU, FDAH-60HDC-AHU
FDAH-48HDC-CDU, FDAH-60HDC-CDU
Thank you for choosing our product. Please read this owner's manual
carefully before operation and retain it for future reference.
MODELS
© Copyright, Sunrise Tradex Corp., 2018
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Summary of Contents for ForestAir E-Tech Series
- Page 1 Installation Manual MODELS Air Handlers : FDAH-24HDC-AHU, FDAH-36HDC-AHU FDAH-48HDC-AHU, FDAH-60HDC-AHU Outdoor Units : FDAH-24HDC-CDU, FDAH-36HDC-CDU FDAH-48HDC-CDU, FDAH-60HDC-CDU Electric Heaters : ET-1500, ET-2000 Thank you for choosing our product. Please read this owner’s manual carefully before operation and retain it for future reference. Sunrise Tradex Corp.
- Page 2 Installation Manual This document is the customer's property and must remain with the unit. These instructions do not cover all the different system variations nor does it provide for every possible contingency in regard to installation. All phases of this installation must comply with national, state and local codes.
- Page 3 Installation Manual WARNING The unit must be permanently grounded. Failure to do so can result in electrical shock causing personal injury or death. WARNING PROPOSITION 65: This appliance contains fiberglass insulation. Respirable particles of fiberglass are known to cause cancer. All manufacturer products meet current federal OSHA Guidelines for safety.
- Page 4 Installation Manual WARNING WARNING The first 6 inches of supply air plenum and ductwork must be constructed of sheet metal as required by NFPA 90B. The supply air plenum or duct must have a solid sheet metal bottom directly under the unit with no openings, registers or flexible air ducts located in it.
-
Page 5: Unit Dimensions
Installation Manual 2.1 UNIT DIMENSIONS NOTE: 63.5 CM (25") CLEARANCE IS REQUIRED IN THE FRONT OF THE UNIT FOR FILTER AND COIL MAINTENANCE. ELECTRICAL CONNECTIORS MAY EXIT FROM THE TOP OR EITHER SIDE SUPPLY AIR HIGH VOLTAGE CONNECTIONS FLANGES ARE PROVIDED 22.23 mm, 9.12 mm &... -
Page 6: Vertical Downflow
Installation Manual 3.0 APPLICATIONS 3.1 VERTICAL UPFLOW ▪ Vertical upflow configuration is the factory set on all models (see fig. 1). ▪ If return air is to be ducted, install duct flush with floor. Use fireproof gaskets of 3.2 to 6.4 mm (⅛... - Page 7 Installation Manual ▪ Using a screwdriver or pencil, lift the blue plastic tab with a hole away from the breaker until the breaker releases from the mounting opening. ▪ With the breaker held in hand, rotate the breaker so that the “ON” position is up, and the “OFF”...
- Page 8 Installation Manual MAKE SURE THE RETAINING CHANNEL IS FULLY ENGAGED UNTO THE COIL RAIL. DETAIL A RAILS AIRFLOW AIRFLOW RAILS FIG. 3 VERTICAL & HORIZONTAL APPLICATIONS (lower front service panel removed) STRAPS HORIZONTAL ADAPTER KIT REAR WATER CATCHER TOP AIR STOP FRONT WATER CATCHER AUXILIARY HORIZONTAL...
-
Page 9: Installation In An Unconditioned Space
Installation Manual WARNING Horizontal units must be configured for right or left air supply. Horizontal drain pan must be placed under indoor coil. Failure to use the drain pan can result in property damage. Conversion in Horizontal Direction: Horizontal right air supply can be changed to horizontal left air supply by removing the indoor coil and reinstalling 180°... -
Page 10: Control Wiring
Installation Manual 4.2 CONTROL WIRING IMPORTANT : Low voltage Class 2 control wiring should not be run in the conduit with the main power wiring and must be separated from the power wiring, unless class 1 wire of proper voltage rating is used. ▪... - Page 11 Installation Manual 4.5 ELECTRIC KIT MCA/MOP DATA MAXIMUM FUSE & MINIMUM CIRCUIT HEATER ELECTRIC BREAKER (HACR) FAN SPEED AMPACITY HANDLER HEATER AMPACITY MODEL MODEL (kW) HIGH ● ● EHK05A 27.2 24.6 ● ● EHK08A 40.8 36.9 – ● EHK10A 54.4 49.2 ●...
-
Page 12: Airflow Performance Data
Installation Manual 5.0 AIRFLOW PERFORMANCE Airflow performance data is based on cooling performance with a coil and no filter in place. Selecting the appropriate unit size performance table for external static applied to the unit allows operation within the minimum and maximum limits shown in the table below for both cooling and electric heat operations. - Page 13 Installation Manual The air distribution system has the greatest effect on airflow. The duct system is totally controlled by the contractor. For this reason, the contractor should use only industry-recognized procedures. Heat pump systems require a specified airflow. Each ton of cooling requires between 350 and 450 cubic feet of air per minute (CFM), or 400 CFM nominally.
-
Page 14: Refrigerant Connections
Installation Manual 7.0 REFRIGERANT CONNECTIONS Keep the coil connections sealed until refrigerant connections are made. See the installation instructions for the outdoor unit for details on line sizing, tubing installation, and charging information. The coil is shipped at no charge. Evacuate the system before charging with refrigerant. -
Page 15: Air Filter (Not Factory-Installed)
Installation Manual ▪ Install drain lines so that they do not block the service access to the front of the unit. Minimum clearance of 24 inches) is required for filter, coil or blower removal and service access. 61 cm ( ▪... -
Page 16: Air Filter Removal
Installation Manual 9.0 FILTER INSTALLATION DIMENSIONS FILTER RAILS FILTER COVER MANUAL BOLT NOTE: Air filter is factory supplied (optional) FIG. 6 EXTERNAL FILTER BASE DIMENSIONAL DATA RETURN AIR RETURN AIR MODEL FILTER SIZE WIDTH DEPTH HEIGHT WIDTH LENGHT 406 x 508 mm 426 mm 518 mm 25.4 mm... - Page 17 Installation Master Plan CONNECTING PIPE HIGH PRESSURE VALVE LOW PRESSURE VALVE SERVICE VALVE The left side of the unit must be have 45 to 50 cm (17 23/32" to 19 11/16") of clearance, 10 cm (4") at the back DRAIN TUBE SIGNAL CORD WATERPROOF COVER 230 V / 60 Hz...
-
Page 18: Parts List
Parts List 24K / 36K OUTDOOR UNIT PART QUANTITY PART QUANTITY Top panel Liquid valve Back grill Capillary Outdoor fan Rev valve coil Condenser Side panel Handle Access plate Front grill Capacitor clips Front panel Compressor capacitor Bottom plate Wire clip Filter capacitor Electric box Partition board... - Page 19 Parts List 48K / 60K INDOOR UNIT PART QUANTITY PART QUANTITY Electric box Handle Side rail network Front panel Back grill Top panel Access plate Control panel Side panel Modules Pipeline Main board Gas valve Terminal Liquid valve Electrical inductance Storage tank Gas valve Compressor...
-
Page 20: Dehumidification Mode
Thermostat LED INDICATORS DESCRIPTION COOLING MODE AUTOMATIC MODE HEATING MODE DEHUMIDIFICATION MODE VENTILATION MODE © Copyright, Sunrise Tradex Corp., 2018... - Page 21 Thermostat ENVIRONMENT SET TEMPERATURE DISPLAY TEMPERATURE DISPLAY SET TEMPERATURE / COMPRESSOR OPERATION ENVIRONMENT TEMPERATURE CURRENT TIME / PANEL LOCK SET TIMER TIMER - ON / OFF ELECTRIC HEATING OPERATION HIGH BREEZE LOW BREEZE MEDIUM BREEZE AUTOMATIC BREEZE CONTROL KEYS DESCRIPTION AND OPERATION ON / OFF ▪...
- Page 22 Thermostat TIME / TIMER ▪ Setting the current time and day : In the main interface, press the time key until the indicators representing the days of the week start blinking. This means you can now set the current day of the week. Using the arrow keys , select the desired day, then press once to confirm your choice.
-
Page 23: Up And Down Arrows
Thermostat ▪ Cancelling a timer : In order to cancel a timer, you must enter the same time value set as the "ON" setting for the "OFF" setting. For example, if your timer was set to turn on at 8:00, enter 8:00 as the value for the "OFF" setting. Pressing will confirm and effectively cancel the timer. -
Page 24: Setting Mode
Thermostat SYSTEM PARAMETERS CODE SETTING MODE DATA RANGE 0: Auto Mode - 1: Force Type of electric heating Default :0 3 to 180 minutes, Duration of electric heating Default : 20 minutes 15°C to 30°C (59°F to 86°F) Electric heating temperature Default : 23°C (73°F) COOLING AND HEATING TEMPERATURES MODEL... -
Page 25: Troubleshooting Guide
Troubleshooting Guide CODE ERROR CODE DESCRIPTION E 01 Wired controller EEPROM fault E 02 PCB of indoor unit fault E 03 Communication problem between PCB of outdoor unit modular inverter board E 05 Outdoor unit fan coil temperature sensor fault E 06 Outdoor unit surroundings temperature sensor fault E 07... -
Page 26: Outdoor Wiring Diagram
24000 / 36000 BTU/h Electrical Wiring Diagram OUTDOOR WIRING DIAGRAM INDOOR WIRING DIAGRAM © Copyright, Sunrise Tradex Corp., 2018... - Page 27 48000 / 60000 BTU/h Electrical Wiring Diagram OUTDOOR WIRING DIAGRAM INDOOR WIRING DIAGRAM © Copyright, Sunrise Tradex Corp., 2018...
