  • Page 1 1000 PACK ™ OPERATOR’S MANUAL...

  • Page 3: Table Of Contents

    CONTENTS EQUIPMENT INFORMATION INTRODUCTION CONFIGURATION OVERVIEW COMPONENT DESCRIPTIONS MISSION SPECIFIC CONFIGURATIONS AVS™ SELF-ACCESS CONFIGURATION AVS™ SEMI-FIXED CONFIGURATION FIXED (PLATE BAG) CONFIGURATION MOLLE-ATTACH CONFIGURATION SHOULDER PAD CONFIGURATION COMMON INSTALLATIONS SHOULDER COMPONENT INSTALLATION FRAME SHEET REMOVAL FRONT ADJUSTMENT STRAP INSTALLATION ADJUSTMENT STRAP INSTALLATION...

  • Page 4: Introduction

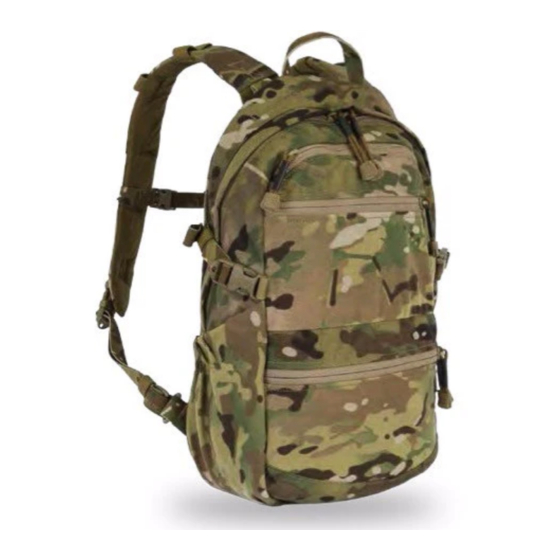

    AVS™ 1000 PACK INTRODUCTION AVS™ 1000 Pack is a small, lightweight assault pack designed to provide the user with a variety of access and attachment options. The configuration allows AVS™ SELF-ACCESS users to secure the pack to the AVS™ without bulky shoulder pads while still allowing the user to easily access the pack.

  • Page 5: Configuration Overview

    EQUIPMENT INFORMATION CONFIGURATION OVERVIEW AVS ™ SELF-ACCESS AVS ™ SEMI-FIXED (PG 7) (PG 11) FIXED (PLATE BAG) (PG 13) MOLLE-ATTACH (PG 17) SHOULDER PAD (PG 19)

  • Page 6: Component Descriptions

    AVS™ 1000 PACK COMPONENT DESCRIPTIONS...
  • Page 7 EQUIPMENT INFORMATION COMPONENT DESCRIPTIONS AVS™ PACK BACK PAD FRAME SHEET SELF-ACCESS SHOULDER STRAP (x2) SELF-ACCESS SHOULDER STRAP ANCHOR (x2) RIGHT HINGE LEFT HINGE SEMI-FIXED HARDWARE (x2) SHOULDER PADS FRONT ADJUSTMENT STRAP ADJUSTMENT STRAP (x3) STERNUM STRAP, FEMALE...

  • Page 9: Mission Specific Configurations

    MISSION SPECIFIC CONFIGURATIONS...

  • Page 10: Avs™ Self-Access Configuration

    AVS™ 1000 PACK AVS™ SELF-ACCESS CONFIGURATION Complete SHOULDER COMPONENT 23), FRONT ADJUSTMENT STRAP installations for this section. 26), ADJUSTMENT STRAP (PG 27) configuration is for AVS™ users who AVS™ SELF-ACCESS are looking for a low-profile option for carrying their pack. Without excessive layers and added bulk of shoulder pads, this configuration is well-suited for maintaining the ability to quickly don and doff (partially or fully) without teammate assistance.
  • Page 11 MISSION SPECIFIC CONFIGURATIONS Remove the shoulder strap covers from the AVS™ and disconnect the components. Pass the AVS™ strap through the HINGE and adjust the location of the pivot point. The webbing should be higher inboard and lower outboard. Ensure the is positioned correctly on HINGE the reverse side of the strap.
  • Page 12 AVS™ 1000 PACK Locate the SELF-ACCESS SHOULDER STRAP . Pass the snap end through the ANCHOR PALS stow on front of the AVS™ then pass the strap behind the vertical webbing and snap it back onto itself. Pull the adjustment end of the anchor down through the PALS webbing.
  • Page 13 MISSION SPECIFIC CONFIGURATIONS To deploy, disconnect the FRONT and the ADJUSTMENT STRAP SELF-ACCESS on the same side. SHOULDER STRAP ANCHOR This will release the pack, allowing it to swing around to the front. To redeploy, swing the pack around or the pass the buckle around your neck.

  • Page 14: Avs Semi-Fixed Configuration

    AVS™ 1000 PACK SEMI-FIXED CONFIGURATION ™ Complete SHOULDER COMPONENT 23), FRONT ADJUSTMENT STRAP installations before beginning 26), ADJUSTMENT STRAP (PG 27) this section. configuration is for AVS™ users who are AVS™ SEMI-FIXED looking for a low-profile option for carrying heavier items in their pack that don’t require personal access.
  • Page 15 MISSION SPECIFIC CONFIGURATIONS Locate the webbing loop on the back of the AVS™. Install the Attach the pack via the installed at the top SEMI-FIXED HARDWARE female by rotating the split bar onto the loop. of the pack. SEMI-FIXED HARDWARE Connect the to the Cinch the pack by pulling forward on the...

  • Page 16: Fixed (Plate Bag) Configuration

    AVS™ 1000 PACK FIXED (PLATE BAG) CONFIGURATION Complete FRONT ADJUSTMENT STRAP (PG 24) ADJUSTMENT STRAP installations before beginning this section. (PG 25) configuration replaces the rear plate bag of either FIXED the AVS™ or JPC™ with the AVS™ 1000 Pack. The FIXED configuration accommodates all ESAPI and swimmer-cut plate sizes.
  • Page 17 MISSION SPECIFIC CONFIGURATIONS AVS™ FIXED CONFIGURATION Remove the rear plate bag from the AVS™ Harness. Pass the AVS™ tabs through the respective slots located on the back of the pack. Snap the AVS™ tabs closed and repeat on the opposite side. Extend the pack shoulder straps and secure on the AVS™...
  • Page 18 AVS™ 1000 PACK FIXED CONFIGURATION ™ Remove the rear portion of the JPC™. Push the shoulder strap Extend the pack shoulder straps and secure to the shoulder straps covers below the shoulder strap loop. of the JPC™ front. Reinstall the JPC™ shoulder strap covers. On the reverse side of the pack, pass the 3-band cummerbund webbing ends through the stows.
  • Page 19 MISSION SPECIFIC CONFIGURATIONS Install the bungee cord and secure it with an overhand knot. Drop the plate into the hydration sleeve and secure the adjustable plate strap. Adjust the plate to desired height. Secure the foam pad on the corresponding loop channels. Completed set-up.

  • Page 20: Molle-Attach Configuration

    AVS™ 1000 PACK MOLLE-ATTACH CONFIGURATION Complete FRONT ADJUSTMENT STRAP (PG 24) ADJUSTMENT STRAP installations before beginning this section. (PG 25) configuration allows the user to secure the pack MOLLE-ATTACH to any PALS platform with a 4-stow by 6-row area available. For additional stability, the user can utilize FRONT ADJUSTMENT STRAPS and/or...
  • Page 21 MISSION SPECIFIC CONFIGURATIONS Pass the shoulder strap through the back webbing stow #2 on the Pass the tab through the top row of PALS on the platform. back of the pack. Then, pass the tab through the bottom webbing stow on the pack. Route the shoulder strap through the second row of PALS on the platform.

  • Page 22: Shoulder Pad Configuration

    AVS™ 1000 PACK SHOULDER PAD CONFIGURATION Complete SHOULDER COMPONENT (PG 23) ADJUSTMENT STRAP installations before beginning this section. (PG 27) Geared toward everyday use, the configuration works SHOULDER PAD well as a communications pack. Radio equipment—such as a PRC117G radio—fit securely via internal radio straps. REQUIRED COMPONENTS ƒ...
  • Page 23 MISSION SPECIFIC CONFIGURATIONS Find the and move the tri-glide all the Place the behind the as shown. STERNUM STRAP, FEMALE STERNUM STRAP SHOULDER PAD way to the bar tack. Locate the remaining Pass the running end around and through the stow bar on the front ADJUSTMENT STRAP replicate the tri-glide position of the sternum strap.

  • Page 25: Common Installations

    COMMON INSTALLATIONS...
  • Page 26 AVS™ 1000 PACK SHOULDER COMPONENT INSTALLATION Used with configurations. AVS™ SELF-ACCESS, AVS™ SEMI-FIXED, SHOULDER PAD Locate the hook side of the shoulder tab. Pass the folded Velcro tab through the D-ring. ® SHOULDER STRAP Ensure the components are oriented as shown in FIGURES A–C.
  • Page 27 COMMON INSTALLATIONS installed for configuration. installed for configuration. SHOULDER PADS SHOULDER PAD SEMI-FIXED HARDWARE AVS™ SEMI-FIXED installed for configuration. Close-up of Ensure relevant components are SHOULDER STRAPS AVS™ SELF-ACCESS FIGURES A oriented as above for respective configurations.

  • Page 28: Frame Sheet Removal

    AVS™ 1000 PACK FRAME SHEET REMOVAL Used with configurations optional for all other configurations. FIXED (PLATE BAG) Invert the zipper and crown on the pack to expose the frame Locate the three buttonholes on the sleeve. The pack can be sheet sleeve.

  • Page 29: Front Adjustment Strap Installation

    COMMON INSTALLATIONS FRONT ADJUSTMENT STRAP INSTALLATION Used with configuration optional for configurations. AVS™ SELF-ACCESS AVS™ SEMI-FIXED MOLLE-ATTACH Secure the horizontally across the plate carrier. FRONT ADJUSTMENT STRAP...

  • Page 30: Adjustment Strap Installation

    AVS™ 1000 PACK ADJUSTMENT STRAP INSTALLATION Used with configurations. AVS™ SELF-ACCESS, AVS™ SEMI-FIXED, MOLLE-ATTACH, SHOULDER PAD Ensure the tri-glide on the is approximately 5” Pass the webbing end through the strap anchor D-ring from bottom ADJUSTMENT STRAP from the end of the strap. to top and pass it through the tri-glide.
  • Page 31 NOTES NOTES...
  • Page 32 AVS™ 1000 PACK NOTES...
  • Page 33 NOTES...
  • Page 34 ABOUT US BODY ARMOR CONTACT INFO Crye Precision designs and manufactures It is against Federal Law for a person Crye Precision LLC truly innovative equipment for America’s convicted of a violent felony to purchase Brooklyn Navy Yard fighting forces. We are proud and or possess body armor.
