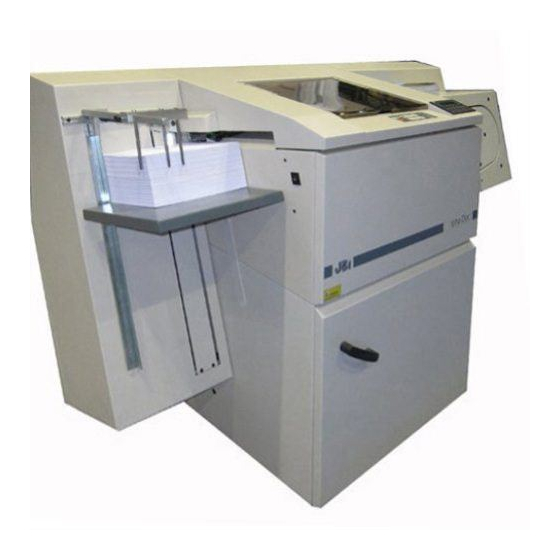

Summary of Contents for JBI Alphadoc
- Page 1 JBI Alphadoc Automatic Punch Setup Procedures Provided By http://www.MyBinding.com http://www.MyBindingBlog.com...
- Page 2 Quick Reference Guide James Burn AlphaDoc Automatic Punch Note: This Quick Resource Guide provides all co-workers with step-by-step procedures for use of all nationally supported finishing equipment. Set Up Procedures Note: Refer to the Control Panel Diagrams section on page two for button descriptions and locations.
- Page 3 Set Up Procedures, Continued Changing the Die 1. From the Ready Screen, press the Die Change button to bring the die into the down position. 2. Open the rear access door. Loosen and remove the bolts securing the die into place. Insert the new die and secure into place with the same bolts that were removed from the last die.
- Page 4 Quick Reference Guide James Burn AlphaDoc, Continued Maintenance & Troubleshooting Procedures Maintenance Use the die oil that is shipped with each die to lubricate the felt pad. Locate the oil holes using the Operator Manual under MAINTENANCE. This should be done ONCE A WEEK! Clean outside covers with mild detergent.
