Introductions:
►Baud Rate: 9600bps
►Parity: none
►Data bits: 8
►Stop bits: 1
►Bluetooth name: IRXON (no Bluetooth host name)
►Bluetooth passkey: 0000

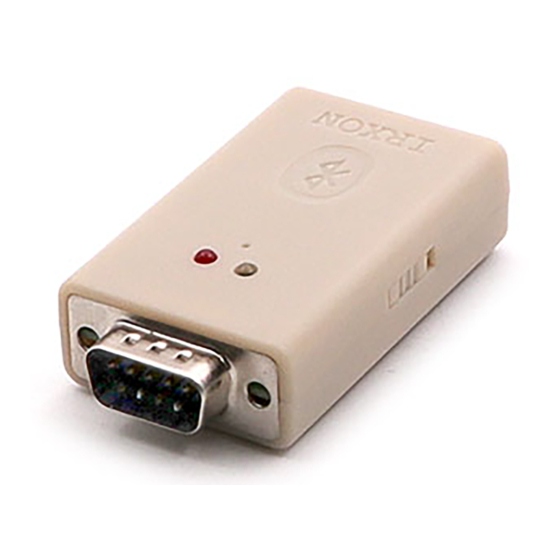

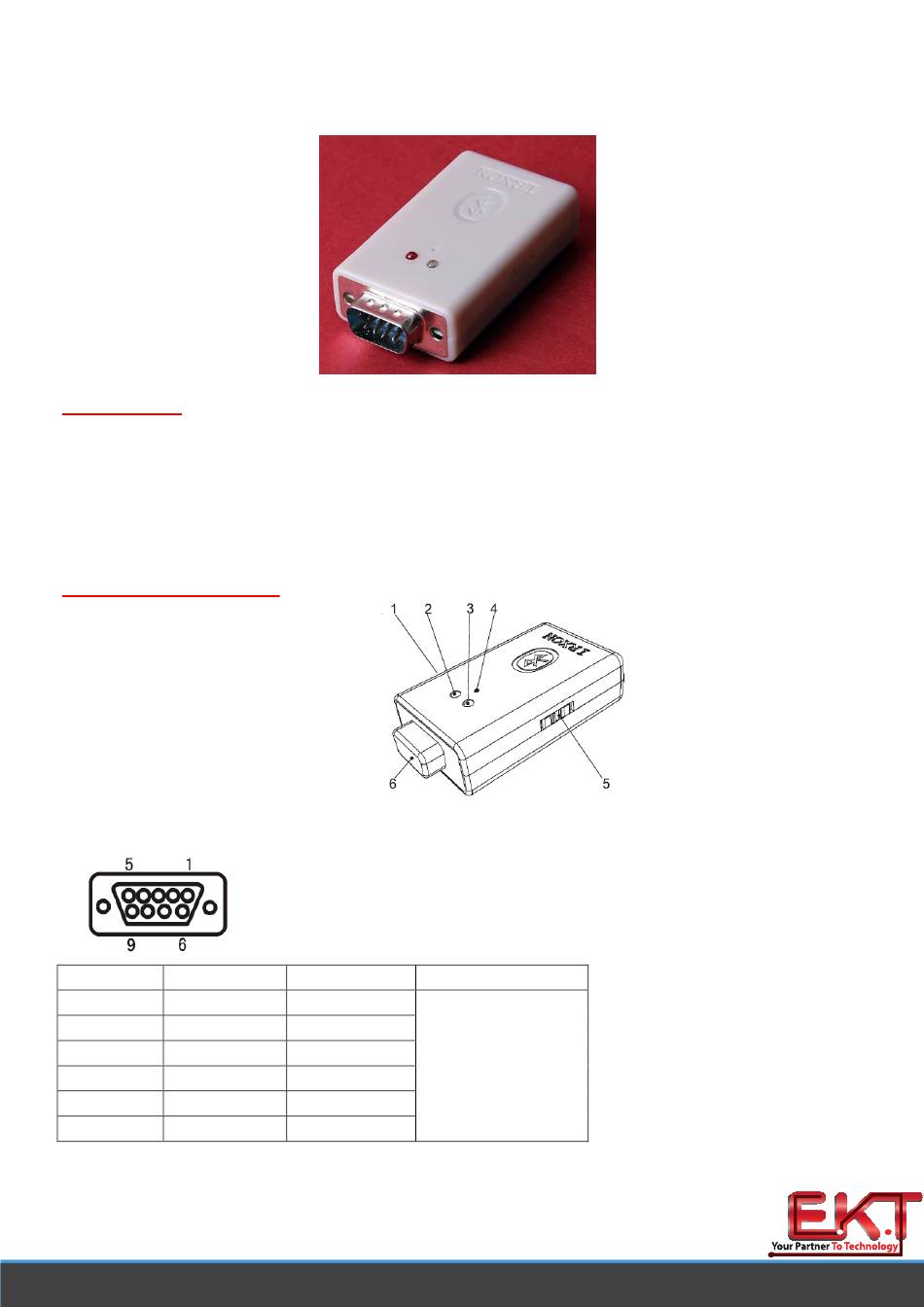

Hardware configurations:
Instructions:
1. MINI USB powered charging port
2. External power indicator
3. Bluetooth status indicator
4. Host pairing Clear button
5. Battery-powered switch
Serial interface adapter:
Stitch
DB9 Male
1
GND
2
NC
3
TXD
4
RXD
5
NC
6-9
NC
Serial Bluetooth Adapter
Model: BT5701
DB9 Female
NC
TXD
NC: No connection
RXD
TXD: Transmit data
NC
RXD: Receive data
GND: Signal ground
GND
NC
