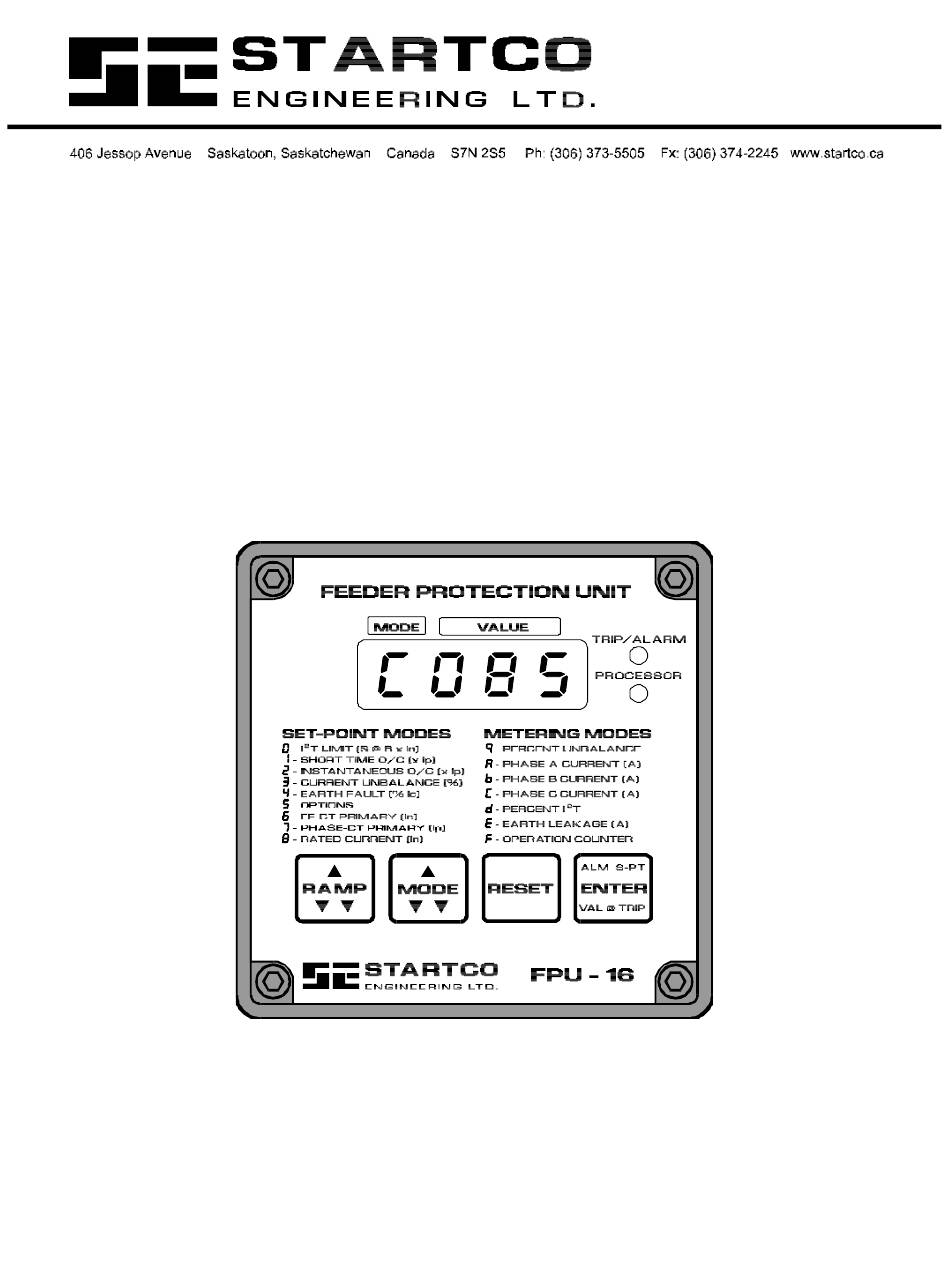

FPU-16 MANUAL
FEEDER PROTECTION UNIT
REVISION 2
NOVEMBER 1997
©
Copyright
1997 by Startco Engineering Ltd.
All rights reserved.
Publication: FPU-16-M
Document: S95-FPU-00000
Printed in Canada.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FPU-16 and is the answer not in the manual?

Questions and answers

Summary of Contents for Startco FPU-16

  • Page 1 FPU-16 MANUAL FEEDER PROTECTION UNIT REVISION 2 NOVEMBER 1997 © Copyright 1997 by Startco Engineering Ltd. All rights reserved. Publication: FPU-16-M Document: S95-FPU-00000 Printed in Canada.
  • Page 2 This document has been downloaded from the Internet and might not be complete— document quality and formatting depend on the user's computer. This Internet manual is intended as a temporary guide—obtain an original document from Startco or from an authorized Startco distributor.

  • Page 3: Table Of Contents

    Startco Engineering Ltd. Page i FPU-16 Feeder Protection Unit Rev. 0 TABLE OF CONTENTS PAGE TABLE OF CONTENTS ..................LIST OF FIGURES ..................... LIST OF TABLES....................INTRODUCTION ..................FEATURES AND OPTIONS..............ORDERING INFORMATION ..............FRONT-PANEL ANNUNCIATION, INDICATION, AND PROGRAMMING..GENERAL....................
  • Page 4 Startco Engineering Ltd. Page ii FPU-16 Feeder Protection Unit Rev. 1 TABLE OF CONTENTS PAGE INSTALLATION ..................GENERAL....................COMPONENT MOUNTING............... 4.2.1 PANEL-MOUNT CONFIGURATION ........4.2.2 SURFACE-MOUNT CONFIGURATION........4.2.3 ICT-2 INTERFACE CT............4.2.4 EFCT-1 AND EFCT-2 EARTH-FAULT CT’S......SHIELDED CABLES................. FPU-16 CONNECTIONS ................
  • Page 5 ICT-2 OUTLINE AND MOUNTING DETAILS ..........EFCT-1 OUTLINE AND MOUNTING DETAILS .......... EFCT-2 OUTLINE AND MOUNTING DETAILS .......... SHIELDED CABLE PREPARATION ............TYPICAL FPU-16 CONNECTION DIAGRAM ..........ICT-2 SCHEMATIC ................... ICT-2 STANDARD CONNECTIONS ............OTHER ICT-2 CONNECTIONS..............CABLE TERMINATION AND RESTRAINT ..........

  • Page 6: Introduction

    — Optional remote-keypad input. — Optional RS-485 communications interface. ORDERING INFORMATION — Determine FPU-16 model number from Table 1. — Supplied with ICT-2, ICT-2 interconnection cable (6 m, 20 ft), and mounting hardware. — Order window-type CT (EFCT-1, EFCT-2, or other) for zero-sequence earth-fault detection.

  • Page 7: Fpu-16 Model Number

    Startco Engineering Ltd. Page 2 FPU-16 Feeder Protection Unit Rev. 2 TABLE 1 Pub. FPU-16-M, November, 1997 Downloaded from the Internet, see Disclaimer.

  • Page 8: Front-Panel Annunciation, Indication, And Programming

    FRONT-PANEL ANNUNCIATION, INDICATION, AND PROGRAMMING GENERAL (See Figure 1) FPU-16 modes are listed on the front panel. Modes 0 to 4 are used to enter trip- and-alarm set points and to annunciate trips and alarms. Mode 5 is used to select options.

  • Page 9: Fpu-16 Front Panel

    Startco Engineering Ltd. Page 4 FPU-16 Feeder Protection Unit Rev. 0 FPU-16 FRONT PANEL FIGURE 1 Pub. FPU-16-M, November, 1997 Downloaded from the Internet, see Disclaimer.

  • Page 10: Led Indicators

    PROGRAMMING The FPU-16 has individual trip-and-alarm control relays and all trip-and-alarm set points can be individually adjusted or deleted. At the top of each set-point range, the delete code "ddd" is displayed. If "ddd" is entered, the set point is deleted and the associated protection is disabled.

  • Page 11: Trips And Alarms

    To reload factory default values: — Remove the supply voltage, — connect FPU-16 terminals 20 and 21 to enable program changes, and — with RESET pressed, apply the supply voltage. Pub. FPU-16-M, November, 1997 Downloaded from the Internet, see Disclaimer.

  • Page 12: Mode Descriptions

    This mode is used to enter long-time overcurrent set points and to annunciate long-time overcurrent alarms and trips. Thermal protection provided by the FPU-16 is based upon a constant I characteristic that is defined by the Mode-0 set point and the rated current (I programmed in Mode 8.

  • Page 13: Fpu-16 Class-20 Thermal Curve

    Startco Engineering Ltd. Page 8 FPU-16 Feeder Protection Unit Rev. 0 FPU-16 CLASS-20 THERMAL CURVE FIGURE 2 Pub. FPU-16-M, November, 1997 Downloaded from the Internet, see Disclaimer.

  • Page 14: Mode 1 - Short-Time Overcurrent

    Startco Engineering Ltd. Page 9 FPU-16 Feeder Protection Unit Rev. 0 All programmed values and values-at-trip are stored in nonvolatile memory. When data are retrieved from this memory, error-detection techniques check for corrupted data. If data are suspect, the unit will trip, “0bAd” will be displayed, and default values will be loaded.

  • Page 15: Mode 2 - Instantaneous Overcurrent

    Startco Engineering Ltd. Page 10 FPU-16 Feeder Protection Unit Rev. 0 MODE 2 — INSTANTANEOUS OVERCURRENT This mode is used to enter instantaneous overcurrent set points and to annunciate instantaneous overcurrent alarms and trips. The instantaneous overcurrent trip-and-alarm time is fixed.

  • Page 16: Mode 4 - Earth Fault

    Startco Engineering Ltd. Page 11 FPU-16 Feeder Protection Unit Rev. 1 Default Values: Trip ..........25% Alarm.......... 15% MODE 4 — EARTH FAULT This mode is used to enter earth-fault set points and to annunciate earth-fault alarms and trips. Set points are expressed in percent of the earth-fault-CT- primary rating entered in Mode 6.

  • Page 17: Mode 5 - Options

    Startco Engineering Ltd. Page 12 FPU-16 Feeder Protection Unit Rev. 0 MODE 5 — OPTIONS (See Tables 2 & 3) This mode is used to select special program options. Any combination in Tables 2 and 3 can be selected by entering the appropriate hexadecimal numbers in...

  • Page 18: Mode 5-Options

    Startco Engineering Ltd. Page 13 FPU-16 Feeder Protection Unit Rev. 1 MODE 5 — OPTIONS TABLE 2 Pub. FPU-16-M, November, 1997 Downloaded from the Internet, see Disclaimer.

  • Page 19: Mode 5-Options (2Nd Level Without Communications Interface)

    Startco Engineering Ltd. Page 14 FPU-16 Feeder Protection Unit Rev. 0 MODE 5 — OPTIONS (2nd Level Without Communications Interface) TABLE 3 Pub. FPU-16-M, November, 1997 Downloaded from the Internet, see Disclaimer.

  • Page 20: Short-Time Trip-And-Alarm Time

    The output relays are de-energized if supply voltage is off or if a trip-or-alarm condition occurs. FPU-16 labelling shows the relays de-energized. In the non-fail-safe mode, the output relays are energized only during a trip-or-alarm condition.

  • Page 21: Mode 7 - Phase-Ct-Primary Rating (I )

    Startco Engineering Ltd. Page 16 FPU-16 Feeder Protection Unit Rev. 1 Earth-Fault-CT-Primary Ratings: EFCT-1 and EFCT-2 ....5 A 5-A- or 1-A-Secondary CT ... 50 A to 2000 A in 50-A increments Default Value ........5 A (EFCT-1 or EFCT-2) MODE 7 —...

  • Page 22: Mode 9 - Percent Unbalance

    EMERGENCY THERMAL RESET will set I t to 0% and reset Mode 0. EMERGENCY THERMAL RESET: — Defeat program-change lockout by connecting FPU-16 terminals 20 and — select Mode d, and — press RESET and ENTER simultaneously. Pub. FPU-16-M, November, 1997...

  • Page 23: Mode E - Earth Leakage

    The value digits display the three least-significant digits of the counter. When ENTER is pressed, the two most-significant digits are displayed. To reset the counter, defeat the program-change lockout by connecting FPU-16 terminals 20 and 21 and press RESET and ENTER simultaneously in Mode F.

  • Page 24: Installation

    4.2.1 PANEL-MOUNT CONFIGURATION Outline dimensions and mounting details for the panel-mount FPU-16 are shown in Figure 3. The FPU-16 mounts in a 92-mm (3.62-in) square cutout (1/4 DIN) and is secured to the panel by the panel-mount clamp. To mount the FPU-16, insert it through the panel cutout and slip the panel-mount clamp over the FPU-16 body.

  • Page 25: Panel-Mount Fpu-16

    Startco Engineering Ltd. Page 20 FPU-16 Feeder Protection Unit Rev. 0 PANEL-MOUNT FPU-16 OUTLINE AND MOUNTING DETAILS FIGURE 3 Pub. FPU-16-M, November, 1997 Downloaded from the Internet, see Disclaimer.

  • Page 26: Surface-Mount Fpu-16

    Startco Engineering Ltd. Page 21 FPU-16 Feeder Protection Unit Rev. 0 SURFACE-MOUNT FPU-16 OUTLINE AND MOUNTING DETAILS FIGURE 4 Pub. FPU-16-M, November, 1997 Downloaded from the Internet, see Disclaimer.

  • Page 27: Ict-2 Outline And Mounting Details

    Startco Engineering Ltd. Page 22 FPU-16 Feeder Protection Unit Rev. 0 ICT-2 OUTLINE AND MOUNTING DETAILS FIGURE 5 Pub. FPU-16-M, November, 1997 Downloaded from the Internet, see Disclaimer.

  • Page 28: Efct-1 Outline And Mounting Details

    Startco Engineering Ltd. Page 23 FPU-16 Feeder Protection Unit Rev. 0 EFCT-1 OUTLINE AND MOUNTING DETAILS FIGURE 6 Pub. FPU-16-M, November, 1997 Downloaded from the Internet, see Disclaimer.

  • Page 29: Efct-2 Outline And Mounting Details

    Startco Engineering Ltd. Page 24 FPU-16 Feeder Protection Unit Rev. 0 EFCT-2 OUTLINE AND MOUNTING DETAILS FIGURE 7 Pub. FPU-16-M, November, 1997 Downloaded from the Internet, see Disclaimer.

  • Page 30: Shielded Cables

    Input-cable shields from the ICT-2, the operation-counter switch, and the remote program-enable switch must be grounded at the FPU-16 end only. Analog- and communications-output cables should be grounded at the receiver end only. Terminate foil-shielded input cables as shown in Figure 8: Strip 150 mm (6") of outer jacket from the cable.

  • Page 31: Shielded Cable Preparation

    Startco Engineering Ltd. Page 26 FPU-16 Feeder Protection Unit Rev. 0 SHIELDED-CABLE PREPARATION FIGURE 8 Pub. FPU-16-M, November, 1997 Downloaded from the Internet, see Disclaimer.

  • Page 32: Typical Fpu-16 Connection Diagram

    Startco Engineering Ltd. Page 27 FPU-16 Feeder Protection Unit Rev. 1 TYPICAL FPU-16 CONNECTION DIAGRAM FIGURE 9 Pub. FPU-16-M, November, 1997 Downloaded from the Internet, see Disclaimer.

  • Page 33: Ict-2 Interconnection Cable

    Ground the cable shields at the FPU-16 only. 4.4.2 POWER SUPPLY The FPU-16 power supply is protected by a time-delay fuse, F3, which is externally accessible only on units with SW, D1, D2, and D4 power supplies. SW units are supplied with fuses for 120-Vac operation. D1, D2, and D4 units are fused for 12, 24, and 48 Vdc operation respectively.

  • Page 34: Operation Count Input

    FPU-16 terminals 20 and 21 to allow programming. If the switch is mounted more than 1 m (3 ft) from the FPU-16, use shielded cable and ground the shield at the FPU-16 end only. 4.4.7 ANALOG OUTPUT An isolated analog output is available at terminals 23 and 24.

  • Page 35: Residual Earth-Fault Connection

    For surface-mount units, restrain the conductors by fastening the "P" clips to the mounting surface. For panel-mount units, secure the "P" clips to the FPU-16 rear panel. Secure cables to the ICT-2 using the cable-tie eyelets and the cable ties provided.

  • Page 36: Ict-2 Schematic

    Startco Engineering Ltd. Page 31 FPU-16 Feeder Protection Unit Rev. 0 ICT-2 SCHEMATIC FIGURE 10 Pub. FPU-16-M, November, 1997 Downloaded from the Internet, see Disclaimer.

  • Page 37: Ict-2 Standard Connections

    Startco Engineering Ltd. Page 32 FPU-16 Feeder Protection Unit Rev. 0 ICT-2 STANDARD CONNECTIONS FIGURE 11 Pub. FPU-16-M, November, 1997 Downloaded from the Internet, see Disclaimer.

  • Page 38: Other Ict-2 Connections

    Startco Engineering Ltd. Page 33 FPU-16 Feeder Protection Unit Rev. 0 OTHER ICT-2 CONNECTIONS FIGURE 12 Pub. FPU-16-M, November, 1997 Downloaded from the Internet, see Disclaimer.

  • Page 39: Cable Termination And Restraint

    Startco Engineering Ltd. Page 34 FPU-16 Feeder Protection Unit Rev. 0 CABLE TERMINATION AND RESTRAINT FIGURE 13 Pub. FPU-16-M, November, 1997 Downloaded from the Internet, see Disclaimer.

  • Page 40: Theory Of Operation

    FPU-16 Feeder Protection Unit Rev. 1 THEORY OF OPERATION GENERAL (See Figure 14) A basic FPU-16 consists of a display module, a power-supply module, a processor module, and an analog module. The display module is a "motherboard" for the other modules.

  • Page 41: Fpu-16 Functional Block Diagram

    Startco Engineering Ltd. Page 36 FPU-16 Feeder Protection Unit Rev. 1 FPU-16 FUNCTIONAL BLOCK DIAGRAM FIGURE 14 Pub. FPU-16-M, November, 1997 Downloaded from the Internet, see Disclaimer.

  • Page 42: Analog Module

    A 50-pin bus connector on the display module accepts a backlighting, remote input, or RS-485 communications interface module. FIRMWARE The FPU-16 has a two-cycle sampling interval followed by a one-cycle calculation interval. In each sampling interval, the multiplexed A/D converter obtains 200 samples of the earth-fault and phase-current signals.

  • Page 43: Technical Specifications

    Rev. 1 TECHNICAL SPECIFICATIONS SPECIFICATIONS APPLY TO FIXED-FREQUENCY APPLICATIONS. Specify supply voltage and frequency in FPU-16 model number. See Table 1. Supply: AC (supply voltage codes: 12, 24, SW, and AD*): 120/240 Vac, 50/60 ± 1 Hz ..10 VA Maximum Continuous ....
  • Page 44 Operating Temperature....-40°C to 60°C Storage Temperature ....-55°C to 80°C Terminal Block Ratings: FPU-16 ........10 A, 300 Vac, No. 14 AWG ICT-2, CT Inputs ......25 A, 500 Vac, No. 10 AWG Compliance: Impulse Voltage Withstand to IEC 255-4,...
  • Page 45 Startco Engineering Ltd. Page 40 FPU-16 Feeder Protection Unit Rev. 2 Fuse-Selection Chart: FUSE VOLTAGE RATING DESCRIPTION F1, F2 120/240 8 A, 250 Vac ¼" x 1¼" CSA/UL Normal IEC 127/I F Quick Acting 100 mA, 250 Vac ¼" x 1¼" CSA/UL Time...

  • Page 46: Fpu-16 Manual Compatibility

    FPU-16 revision level and the firmware revision level. The FPU-16 revision level is shown on its nameplate and the firmware revision level is accessed by selecting Mode 8 and pressing ENTER. The manual revision level is listed on the manual title page.

  • Page 47: Warranty

    Startco Engineering Ltd. will (at Startco's option) repair, replace, or refund the original purchase price of a unit which is determined by Startco to be defective if it is returned to Startco, prepaid, within the warranty period.
