Summary of Contents for Datamars Livestock Speedrite SV170

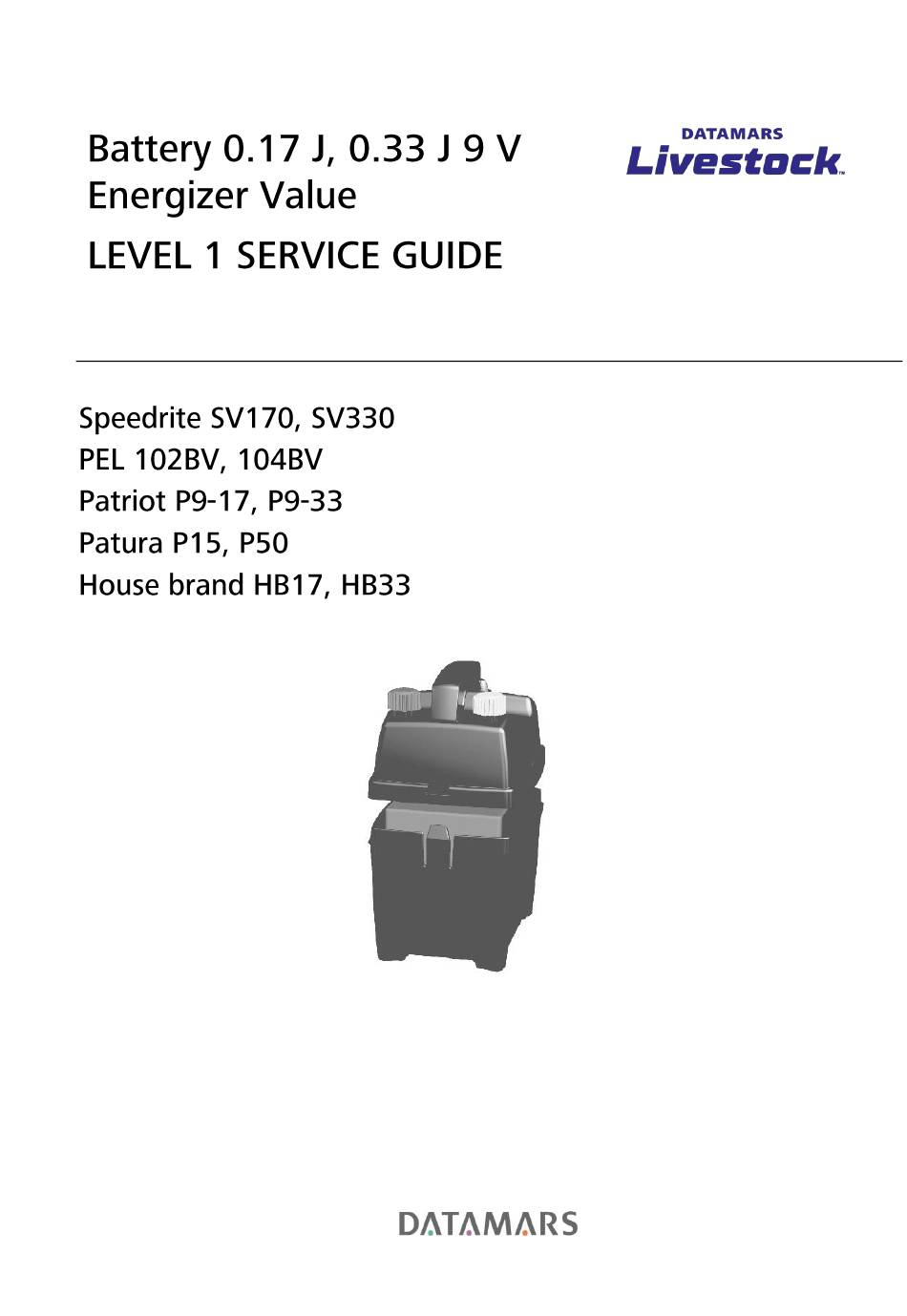

- Page 1 Issue 4, 08/2020 1 of 18...
- Page 2 P O Box 51078 Mt Wellington Pakuranga Auckland 1060 Auckland 2140 New Zealand New Zealand All trademarks with an * are neither owned by nor licensed to Datamars SA and belong to their respective owners. Issue 4, 08/2020 2 of 18...
- Page 3 Using Personal Protective Equipment (PPE)....................4 Service centre requirements ..........................4 Product and documentation feedback ..................... 4 Datamars Livestock service portal ......................5 Returning a product ..........................5 Taking precautions ..........................5 Deciding whether to undertake a repair ....................6 Service levels ............................
- Page 4 Datamars Livestock service portal , see page 5. We This service guide and other resources are available on the encourage you to provide us with feedback on the documentation. All feedback communications can be sent to: service.dept@datamars.com Issue 4, 08/2020 4 of 18...
- Page 5 Before a product or assembly is returned to Datamars Ltd for service or analysis, please advise us beforehand so that a Return Authorisation (RA) number can be allocated. The RA number will ensure that we are ready for the product when it is received and assist us in providing efficient and prompt service.
- Page 6 This service guide and all instructions are designed for Service Level 1 assistance. Where more involved or skilled repairs or servicing is required please arrange by contacting Datamars. See page 4. A glossary of terms/acronyms used is available at the end of this service guide. See page 15.
- Page 7 Battery 0.17 J, 0.33 J 9 V Energizer Value Service Guide When ordering parts, use the Datamars part number highlighted in bold text. The number in brackets is the previous Tru-Test part number, shown for cross-reference purposes. Battery Black battery compartments...
- Page 8 Battery 0.17 J, 0.33 J 9 V Energizer Value Service Guide Insert a known good battery. Test the energizer’s output voltage and output energy. Measure the energizer’s pulse interval, see page 9. If the energizer passes these performance tests, advise the customer that their own battery is likely to be faulty.
- Page 9 Battery 0.17 J, 0.33 J 9 V Energizer Value Service Guide WARNING! Do not connect to mains or line operated equipment (e.g. mains/line power supply). When performing this test, always use a battery to power the energizer. To ensure accuracy of measurement, the output voltage of this energizer should be tested using either an Energizer Performance Meter (EPM) or a Digital Voltmeter (DVM) (part number 880 0001-487 (822645) PEL, 880 0000-178 (806217) Patriot, 880 0001-528 (824663) Stafix, 880 0001-529 (824724) Speedrite).
- Page 10 Battery 0.17 J, 0.33 J 9 V Energizer Value Service Guide To remove the old handle: Tap the handle sharply with the palm of your hand in the direction shown: Continue tapping until the handle slides away from the case lid. If the handle has broken off, use a flat bladed screwdriver or blunt chisel and a hammer to tap away the stump of the handle.
- Page 11 Battery 0.17 J, 0.33 J 9 V Energizer Value Service Guide Only replace faulty components (i.e. if the switch knob is damaged but the magnet is OK, recycle the magnet. If the magnet is missing but the switch knob is OK, recycle the switch knob). Turn the switch so that the pointer is at approximately 1 o'clock (30°...
- Page 12 Battery 0.17 J, 0.33 J 9 V Energizer Value Service Guide Holding the switch as shown below, use the fingers of your right hand to gently lever the switch up while holding it vertical using the fingers of your left hand. Fit the magnet into the new switch.
- Page 13 Battery 0.17 J, 0.33 J 9 V Energizer Value Service Guide Align the new switch in the 1 o'clock (30°) position. Align it with the spigot and press down firmly. Rotate the switch from 'off' to 'on' and check that it clicks into each position. spigot Connect a battery and check that the energizer functions correctly.
- Page 14 Battery 0.17 J, 0.33 J 9 V Energizer Value Service Guide The module and output transformer are supplied in the case lid. You will need to recycle the handle and terminal Replacing the handle knobs from the old case lid. See on page 10.
- Page 15 Datamars part Part numbers are being transitioned from the older Tru-Test manufacturing system format (JDE) to the new Datamars part number format (SAP). Both numbers can be used for number ordering parts for 2020/2021 and are displayed in the format SAP # (JDE#). For example: 880 0000-963 (830037P).
- Page 16 Technical bulletin Special technical documents, available with in depth information about a topic. Technical Datamars Livestock service portal bulletins and other service guides are available on the EID stick reader An EID (electronic identification) stick reader, in terms of scales, is a device that provides a digital readout.
- Page 17 An electric fence used to contain animals within or exclude animals from a particular area. fence Digital Volt Meter is used to measure the electrical output of an energizer. Datamars recommends use of a late model DVM. Electric fence This comprises the following elements, an energizer, an earth system, insulated underground cables, insulated fence.
- Page 18 Energizers that can be connected to a battery or a specified power adaptor Only use with a Datamars Ltd approved power adaptor. This must be either the power adaptor provided with the energizer or a genuine replacement part supplied by Datamars (see details marked on the energizer, beside the power inlet).
