Bush Baby BBWiFiAlarmClock User Manual

Alarm clock with wi-fi hidden camera
Hide thumbs

Advertisement

Quick Links

Download this manual
Bush Baby Alarm
Clock with Wi-Fi
Hidden Camera
SKU: BBWiFiAlarmClock
1
Version 1.2

Advertisement

loading
Need help?

Need help?

Do you have a question about the BBWiFiAlarmClock and is the answer not in the manual?

Questions and answers

Summary of Contents for Bush Baby BBWiFiAlarmClock

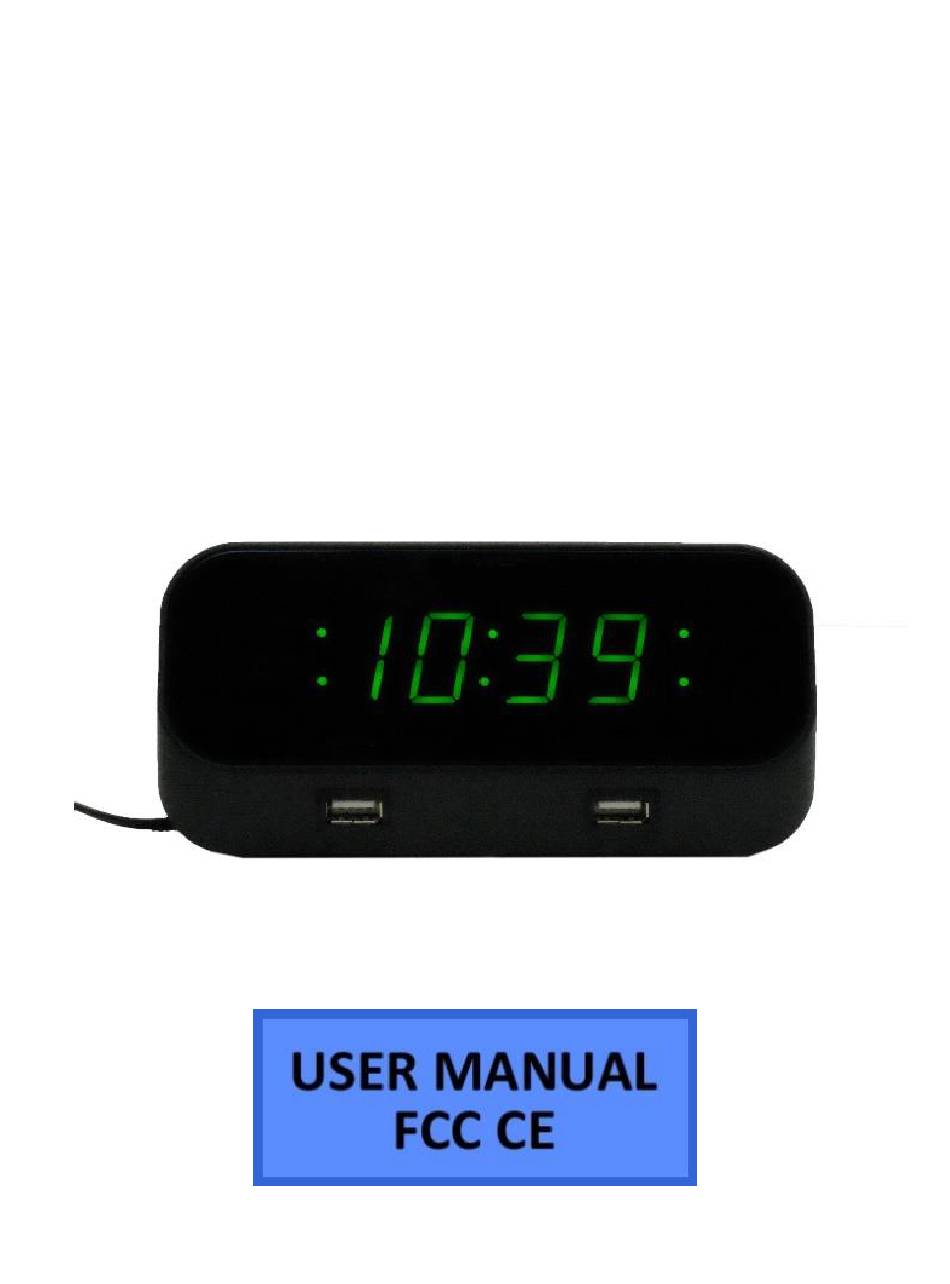

  • Page 1 Bush Baby Alarm Clock with Wi-Fi Hidden Camera SKU: BBWiFiAlarmClock Version 1.2...
  • Page 2 THANK YOU FOR PURCHASING THE BBWIFIALARMCLOCK Please read this manual before operating the BBWiFiAlarmClock and keep it handy. Cheating Spouse and running out of plug room? No need to worry, this all-in-one unit is what you need! With this BBWIFI camera, you can...
  • Page 3 GET FAMILIAR WITH YOUR BBWIFIALARMCLOCK Version 1.2...
  • Page 4 Version 1.2...
  • Page 5 OPERATING THE BBWIFIALARMCLOCK BEFORE YOU START 1. First you must download the P2PLiveCam app from the Google Play Store or the iPhone App Store. o Android: https://play.google.com/store/a pps/details?id=com.g_zhang.my p2pcam&hl=en o iPhone: https://itunes.apple.com/us/app /p2plivecam/id789572618?mt=8 2. If you wish to enable SD Card recording, you must insert a MicroSD card into the unit.
  • Page 6 network. Otherwise, the device will not connect to the new network. Note: If you are not located in the US, or if you intend to use this product anywhere other than the US, you will need to purchase a converter in order to use the AC wall plug in and avoid damaging the product.
  • Page 7 In order to view your device remotely, you must complete the following two-part sequence of steps. 1. Plug the device into the wall or insert batteries. 2. Turn on your phone’s Wi-Fi and wait up to 7 minutes for the device to generate a Wi-Fi signal.
  • Page 8 4. After connecting to the Wi-Fi Signal with your mobile device, open the P2PLiveCam App. NOTE: For iOS devices you must wait until the Wi-Fi Signal appears next to your Phone Carrier Name in the status bar at the top of your phone screen.
  • Page 9 NOTE: You will be prompted to change the device password the first time you view the camera video feed. We suggest that you do change this to prevent any unauthorized viewing of your camera. IMPORTANT: You must keep this password in a safe place.
  • Page 10 1. From the home screen of the app, tap the settings gear next to the camera name. 2. A menu will pop up, choose “Device Settings”. o For Android devices, the option will be “Advanced Config”. 3. Next choose “WiFi Config”. 4.
  • Page 11 7. Once the device shows as Online, confirm that it connected to your Wi-Fi successfully by opening the settings app on your phone and choosing your Wi-Fi settings. If you connected successfully, the device will no longer be generating its own Wi-Fi signal, and you should be connected to your own Wi-Fi.
  • Page 12 HOW TO ADJUST THE VIDEO QUALITY OF THE STREAM 1. Open the live video stream of your camera. 2. Once the video is streaming, tap the screen once to reveal the options. 3. In the top right of the screen there will be a video quality setting (HD, High, Normal, and Low Bandwidth).
  • Page 13 3. Tap “Motion Detection Sensitivity” and set according to your preference. (We suggest a setting near the middle of the available options.) 4. Tap OK at the bottom of the screen, and you will receive notifications on your phone when motion is detected. 5.
  • Page 14 1. Remove the MicroSD Card from your device (see page 4). 2. Use the MicroSD Card Reader to connect the MicroSD card to your computer. 3. Locate “Removable Disk” inside the (My) Computer folder.  AutoPlay Removable Disk > Open folder to view files Or…...
  • Page 15 Go to Start > Computer > Removable Disk 4. Open the Removable Disk drive. 5. Open the folder containing the files. 6. Double click the file you want to view. Note: You can easily view, control, and delete your MicroSD card recordings using the phone app.
  • Page 16 COPYING AND DELETING YOUR FILES The video files created are just like any other file on your computer, and can be managed in the exact same manner.  To save a file, you want to select the file, right click your mouse on the file name, and then choose “Copy”...
  • Page 17  If you are using MAC OS X, you must empty the trashcan after you delete a file. If this is not done, the SD card will fill with hidden files, and the device will no longer record new files. Version 1.2...

  • Page 18: Troubleshooting

    TROUBLESHOOTING THE DEVICE WON’T TURN ON  Make sure the device is plugged into an electrical outlet. CANNOT RECORD TO SD CARD  Confirm you have inserted the MicroSD Card into the unit. HOW TO SOFT RESET THE DEVICE  You can reset the camera from the app by opening the app, going to the device’s settings, scrolling to the bottom, and selecting “Reset Device”.
  • Page 19  Most of the time, you will need to send the device in for us to perform a factory reset. Please contact us at the number below for more information. CAN’T FIND DEVICE’S WIFI SIGNAL  Please unplug the device, wait 30 seconds, plug your camera back in, and try again.
  • Page 20  Call our technical support at 770–694– 6921 Version 1.2...

  • Page 21: Specifications

    SPECIFICATIONS Video Resolution 1080P, 720P, 480P Streaming 1080P, 720P, 480P Resolution Recording 720P, 480P, 320x240 Resolution Video Format Type of Memory External MicroSD Card Memory Capacity Up to 128GB Recording Capacity 1GB ≈ 15 minutes USB Interface 2.0 USB Player Software Time Date Stamp Loop Recording Operating Systems...
  • Page 22 Version 1.2...
  • Page 23 Version 1.2...
  • Page 24 QUALITY CONTROL CHECKLIST ☐ Instruction Manual ☐ MicroSD Card Reader ☐ BBWifi Alarm Clock ☐ MicroSD Card ____GB QC Tech Name: _______________________________ Date: ______________________________ Version 1.2...
