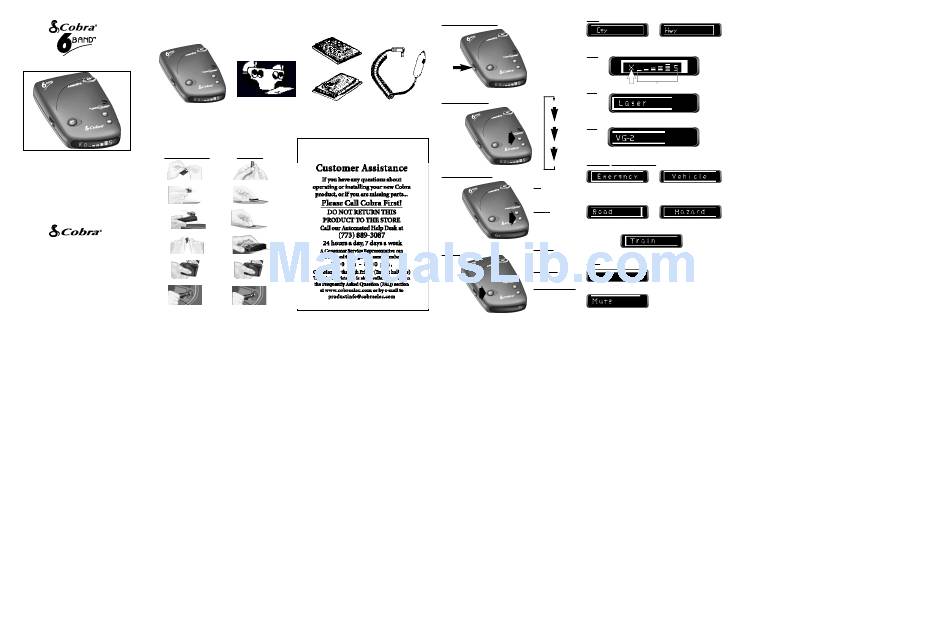

Cobra ESD-6500 User Manual

1. What You'll Need To Install The ESD-6500:
Installing and Using Your
NOTE: Detailed instructions on opposite side
DETECTION SYSTEM
Model ESD ™ -6500
ESD-6500
2. Installing The ESD-6500:
ON WINDSHIELD
U.S. Patent No. 5,497,148
ATTACH CUPS TO BRACKET
ATTACH BRACKET TO WINDSHIELD
ATTACH DETECTOR TO BRACKET
Cobra Electronics Corporation
6500 West Cortland Street,
Chicago, Illinois 60707
BEND BRACKET FOR CORRECT DETECTION ANGLE (IF NEEDED)
PLUG POWER CORD INTO DETECTOR
PLUG POWER CORD INTO CIGARETTE LIGHTER
PRINTED IN KOREA ©1997 COBRAELECTRONICS CORPORATION 480-265-P-001
Windshield Bracket Hook and Loop Material Power Cord
(For on-dash mounting)
NEED HELP?
ON DASH
PEEL PROTECTIVE PAPER OFF ONE SIDE OF HOOK AND LOOP
PLACE ON DASH
PEEL TOP PAPER OFF
PLACE DETECTOR ON HOOK AND LOOP PAD
POWER CORD INTO DETECTOR
PLUG POWER CORD INTO CIGARETTE LIGHTER
3. Operating The ESD-6500:
E. Indicators and Visual Alerts
Power
A. Turn On and Adjust Volume
Display is briefly
illuminated in the Test
mode at Power ON.
Radar
NOTE: For your
convenience, Display Dim,
City/Highway, and Muting
mode settings are retained
in memory.
Laser
B. Set Display Brightness
NORMAL
LOW 1
VG-2
LOW 2
Safety Alert Traffic Warning System
OFF ®
C. Set City/Highway Mode
CITY
For urban driving-re d u c e s
number of X-Band audible
a l e rt s .
HIGHWAY
For all other driving.
Auto Muting
D. Set Muting Mode
Automatically reduces
volume of alert in progress
Muting
after 3 seconds.
Manual Muting
Press to reduce volume of
alert in progress.
To Switch Between Modes
OR
P ress the Mute Button when
no signal is being received. In
Auto mode, the display will
show an "M" on the far right.
OR
(Shows City/Highway Mode when power is on)
Band Signal Strength
OR
OR
Auto Mode
Manual Mode when Mute Button is pressed
