LDI Spaces Safco Serenity 3470 Assembly Instructions

Serenity Leather Office Chair
an LDI Spaces Company
Minneapolis, MN 55428
www.safcoproducts.com
PRODUCT WARRANTY REGISTRATION is available online at: www.safcoproducts.com
READ THESE INSTRUCTIONS BEFORE STARTING
FOLLOW THE ASSEMBLY PROCEDURES CAREFULLY

PARTS LIST

LETTER
DESCRIPTION
CODE
Base
A
Casters
B
Pump Assembly
C
Pump Dust Cover (3-piece)
D
Seat Assembly: 3470
E
or 3471
or 3472
Small Screw (Silver)
F
(temporarily installed on sides of
seat cushion and back rest)
Back Rest: 3470
G
or 3471
or 3472
Screw Cover
H
Right Arm (marked "R")
I
Left Arm (marked "L ")
J
1

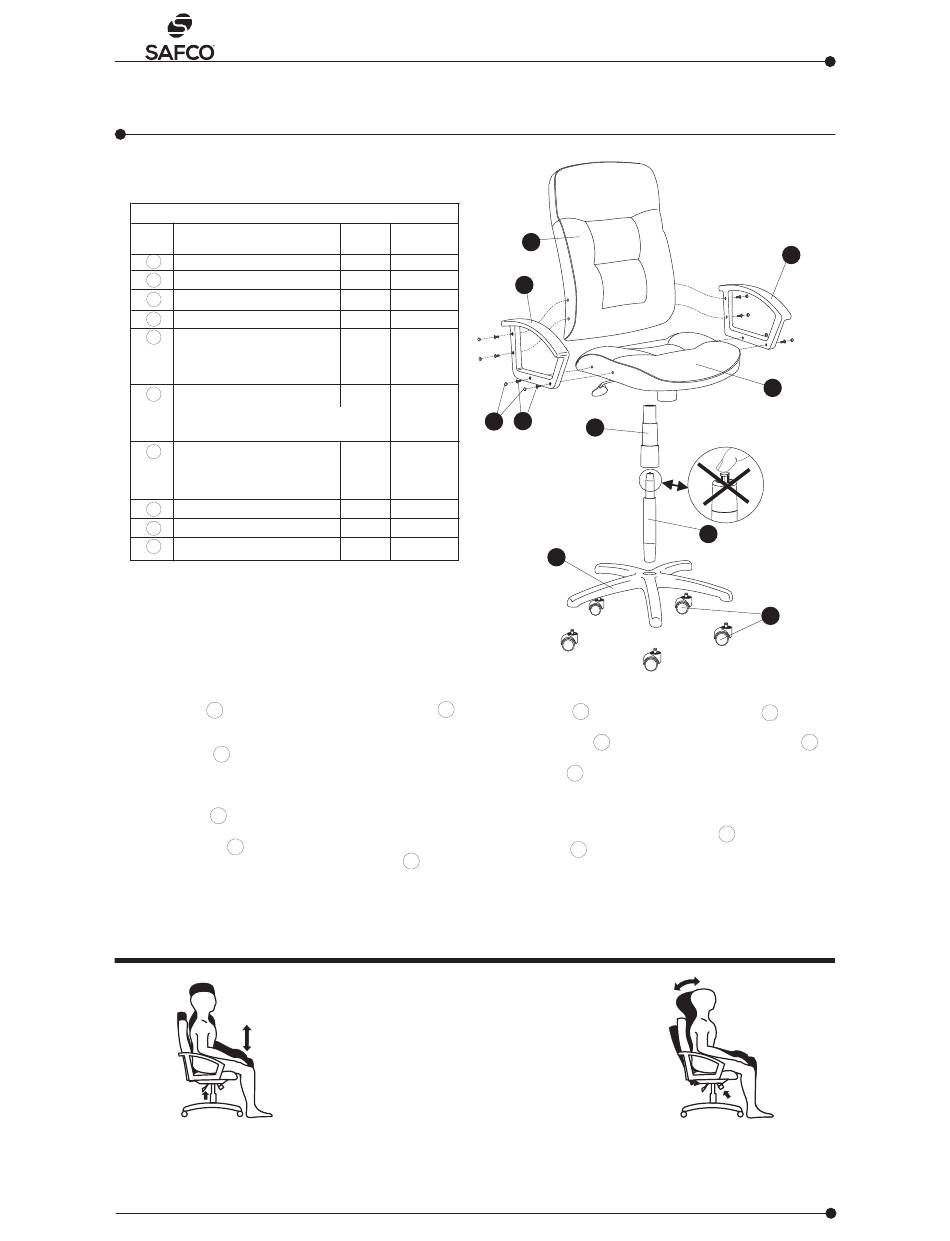

Turn the A Base upside down and insert the five B
Casters into the ends of the Base spokes. Turn the
Base right side up.
2
Insert the C Pump Assembly into the base, tapered
end down. Secure the Pump Assembly by applying a
little downward pressure. DO NOT PUSH ON BUTTON
AT THE TOP!
3
Slide the D Dust Cover over the Pump Assembly until
it meets the Base.
4
Remove the F Small Screws (Silver) from the sides of
the Seat Cushion and from the sides of the G Back
Rest.
ATTENTION:
For steps 5 and 6, temporarily
fasten the screws; do NOT fully tighten the screws until all
screws are properly inserted. THEN, go back and tighten
each screw evenly.
1. Adjust height of chair:
•
Keep feet flat on the floor.
•
With lever on right side,
adjust height so you feel NO
pressure under the back of
your thighs.
3470-37: 1 of 2; Rev. 4; 9/05
A S S E M B L Y
TOOLS REQUIRED: Screwdriver
QTY. PART NO.
1 3470-02
5 3470-25
1 3470-11
1 3470-14
1 3470-51
1 3471-51
1 3470-51
8 3470-23
1 3470-04
1 3471-04
1 3472-04
8 3470-22
1 3470-08
1 3470-09
5
6
7
8
9
For questions or concerns, please call the
Safco Consumer Hot Line 1-800-664-0042
available Monday-Friday 8:00 AM to 4:30 PM (Central Time)
(English-speaking operators)
Safco Products Company, New Hope, MN 55428
INSTRUCTIONS
G
I
F
H
D
A
Mount the J Left Arm to the left side of the G Back
Rest, using two Small Screws (Silver). Now do the
same with the I Right Arm on the right side of the G
Back Rest.
Place the E Seat Assembly between the Arms and line
up the holes in its sides with those in the Arms. Secure
with the Small Screws.
Go back and tighten each screw evenly using a screw-
driver and cover the screws with the H Screw Covers.
Place the E Seat Assembly onto the Pump Assembly.
Press down firmly (or sit) to lock into place.
Adjust the chair height and chair tension as needed, fol-
lowing the instructions shown below.
2. Adjust the chair tension:
•
Loosen the knob under the front
of the chair to allow easier tilting.
•
Tighten the knob to provide a
firmer action.
3470
MODEL
3471
NUMBERS
3472
