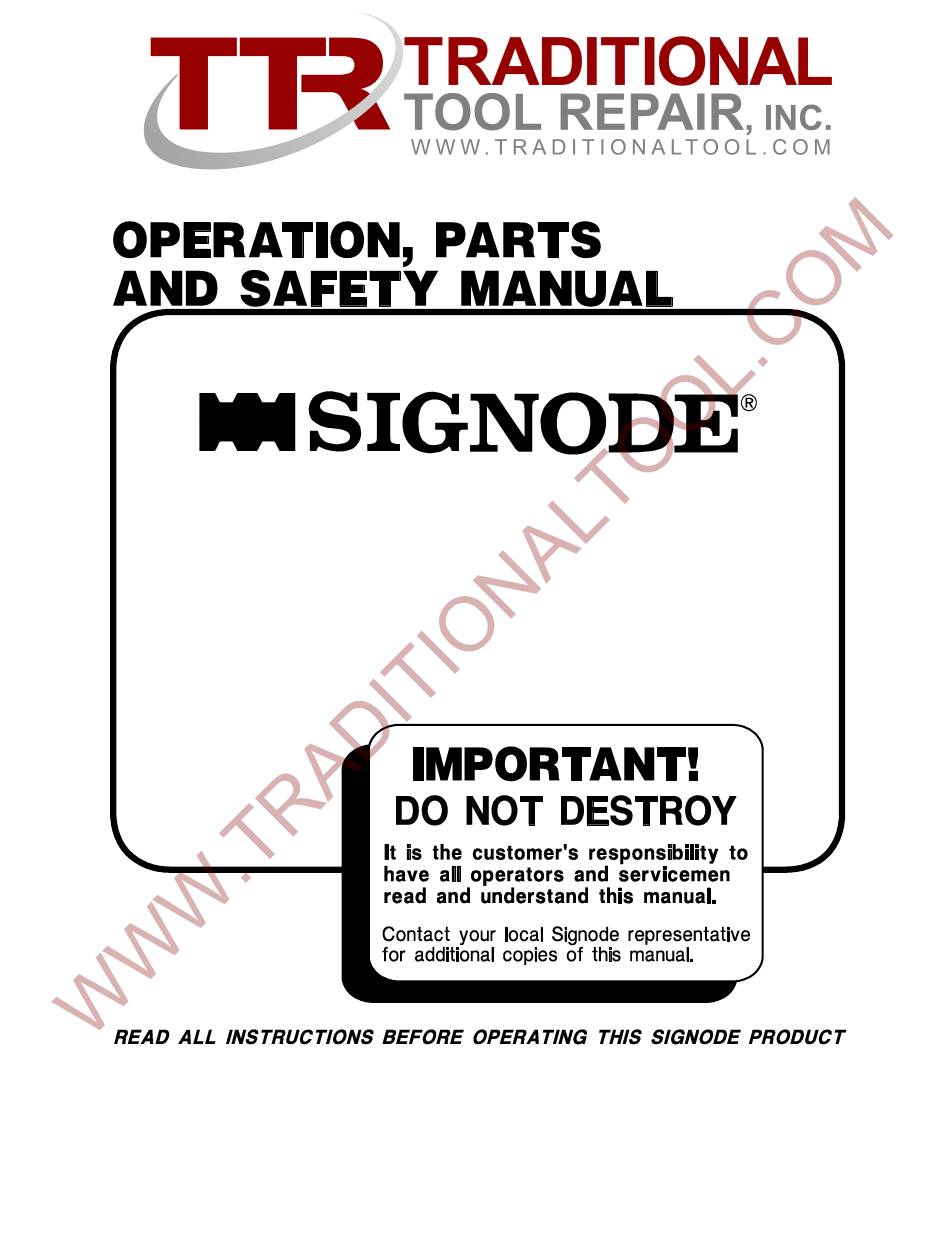

- Page 1 RC-1435-50 MANUAL SEALER For Parts & Service 1-877-862-6699...
- Page 2 READ THESE INSTRUCTIONS CAREFULLY. FAILURE TO FOLLOW THESE INSTRUCTIONS CAN RESULT IN SERIOUS PERSONAL INJURY. STRAP BREAKAGE HAZARD Improper operation of the tool or sharp corners on the load can result in strap breakage during tensioning, which could result in the following: A sudden loss of balance causing you to fall.
- Page 3 READ THESE INSTRUCTIONS CAREFULLY. FAILURE TO FOLLOW THESE INSTRUCTIONS CAN RESULT IN SERIOUS PERSONAL INJURY. Signode tools and machines are designed and warranted to work together with Signode strapping and seals. Use of non-Signode strap and seals and/or manufactured or specified replacement parts may result in strap breakage or joint separation while applying strapping to a load or during normal shipping and handling.
- Page 4 TABLE OF CONTENTS Page General Safety Information Specifications Signode tools and machines are designed and warranted to work together with Operating Instructions Signode strapping and seals. Use of non- Signode strap and seals and/or Parts List manufactured or specified replacement parts may result in strap breakage or joint Maintenance separation while applying strapping to a...
- Page 5 OPERATING INSTRUCTIONS Wear safety glasses which conform to ANSI Standard Z87.1 or EN 166. Stand to one side of the strap while tensioning. Make sure all bystanders are clear before proceeding. Failure to follow the above could result in serious personal injury. NEVER HANDLE OR SHIP ANY LOAD WITH IMPROPERLY FORMED JOINTS.
- Page 6 PARTS LIST QTY. PART NO. DESCRIPTION 003911 004047 Side plate 004056 Jaw pin 004046 Notcher 004049 Link pin 004048 Front link 004057 Spacer 004053 Rear link 004052 003974 Fulcrum pin 004054 Upper handle assembly 020378 Handle grip 003972 Tie bolt 020396 Lower handle assembly 003132...
- Page 7 For Parts & Service 1-877-862-6699...
