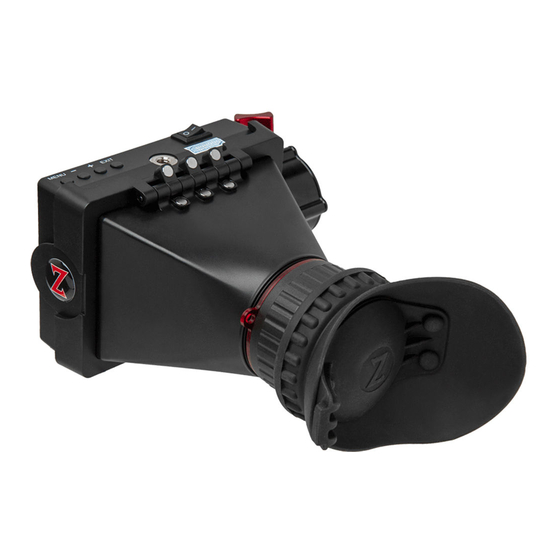

ACT EVF PRO Instructions

WARNING
• Please do not expose this product to direct
sunlight, heat or humid conditions.
• Avoid heavy impacts or dropping this
product.
• Do NOT use chemical solutions to clean this
product. Please wipe with a clean soft cloth to
maintain the integrity of the surface.
5
4
3
2
1
8
9
10
11
14
13
12
BUTTON OPERATION
MENU: Activates the menu. After menu opens, press (+) or (–) to select
menu header. Press (MENU) again to enter the sub-menu and cycle
through items within the sub menu. While menu is not active, use as
programmable function button. While menu is active, use to advance
the currently selected menu item.
EXIT: While menu is inactive, use as programmable function button.
While menu is active, use to exit the menu or to back out of a sub menu.
1
2
6
7
3
4
5
6
7
8
9
10
11
12
13
14
MENU: opens and closes menu
(-) Button:
Selects highlighted menu
item or advances selection;
programmable function button
when menu is not active.
(+) Button:
Selects highlighted menu
item or advances selection;
programmable function button
when menu is not active.
EXIT Button:
Exits menu when menu is
active; programmable function
button when menu is not active.
Power Button (ON/OFF)
Diopter Adjustment
Auto-Closing Eyecup
HDMI Input
HDMI Output
1/4"-20 Mounting Hole
Arri Rosette (1/4"-20)
Headphone Audio Output
Power input (DC12V)
LP-E6 Battery
