H0FL-EthMux.SA16/SAP16 Series
E1/T1 over Ethernet Converter

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the H0FL-EthMux.SA16 and is the answer not in the manual?

Questions and answers

Related Manuals for Huahuan Electronics H0FL-EthMux.SA16

Summary of Contents for Huahuan Electronics H0FL-EthMux.SA16

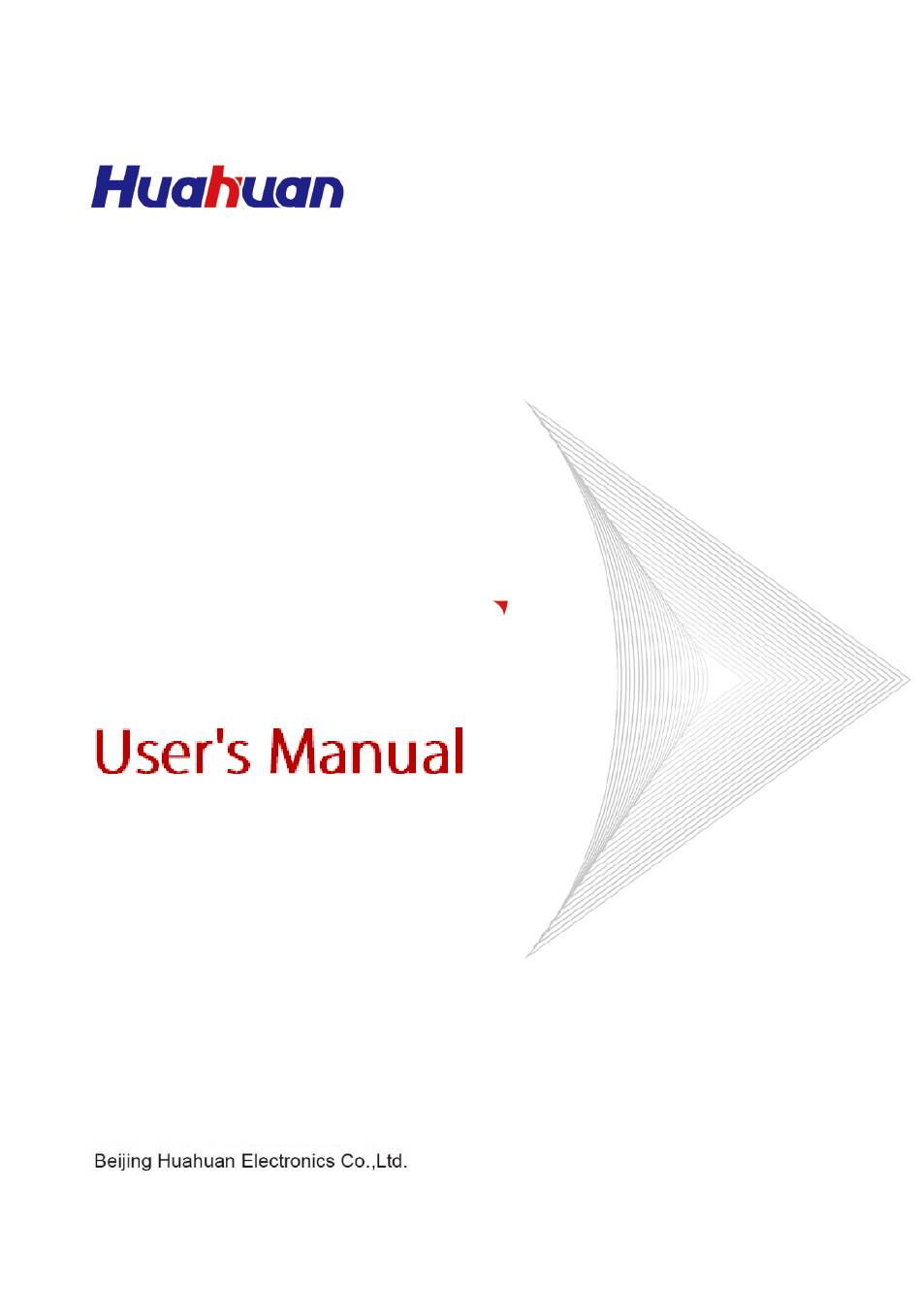

  • Page 1 H0FL-EthMux.SA16/SAP16 Series E1/T1 over Ethernet Converter...
  • Page 2 H0FL-EthMux.SA16/SAP16 Series E1/T1 over Ethernet Converter User’s Manual Beijing Huahuan Electronics Co., Ltd. Sept.2019...
  • Page 3 Copyright Notice The intellectual property rights of all parts of this product, including this manual and accessories etc., are owned by Beijing Huahuan Electronics Co., Ltd. (Beijing Huahuan for short). Without prior written consent of Beijing Huahuan, no part of this document may be reproduced or transmitted in any form or by any means.

  • Page 5: Table Of Contents

    3.3 Timing Modes ......................... 43 3.4 System Structure ......................46 4 Cable Introduction ................... 48 4.1 AC Power Cable ......................48 4.1.1 AC Power Cable (ZJN.BH4.855.080) ..............48 4.1.2 AC Power Cable (ZJN.BH4.855.035) ..............51 Version 2.1(Sept.2019) Beijing Huahuan Electronics Co., Ltd.

  • Page 6: Contents

    7 Device Monitoring ................... 82 7.1 System Info ........................83 7.2 Alarm Status ........................83 7.2.1 E1 Channel Status ....................84 7.2.2 Ethernet Port Status ....................84 7.2.3 Power Status......................84 7.2.4 Alarm Log ......................85 Version 2.1(Sept.2019) Beijing Huahuan Electronics Co., Ltd.
  • Page 7 8.2 E1/T1 Interface Features ....................114 8.3 Ethernet Port........................115 8.4 POE ..........................116 8.5 Power Supply ........................ 117 8.6 Operating Environment ....................117 8.7 Dimensions ........................117 8.8 Weight ........................... 118 Appendix Acronyms and Abbreviation ............119 Version 2.1(Sept.2019) Beijing Huahuan Electronics Co., Ltd.

  • Page 8: List Of Figures

    H0FL-EthMux.SA16/SAP16 Series Devices List of Figures Figure 2-1 Typical application of H0FL-EthMux SA16/SAP16 series devices ....22 Figure 2-2 Typical application of H0FL-EthMux.SA16/SAP16 series devices in wireless network..........................23 Figure 2-3 Typical application of H0FL-EthMux.SA16/SAP16 series device in cable network..........................23 Figure 3-1 The front panel diagram of H0FL-EthMux.SA1604 (-48V DC/100~240V AC) 25...
  • Page 9 Figure 3-14 The front panel diagram of H0FL-EthMux.SAP1608.ES (-48V DC/100~240V AC) ............................28 Figure 3-15 The front panel diagram of H0FL-EthMux.SA16 (-48V DC/100~240V AC) .. 29 Figure 3-16 The front panel diagram of H0FL-EthMux.SA16 (dual -48V DC) ....29 Figure 3-17 The front panel diagram of H0FL-EthMux.SA16 (dual 100~240V AC) ..29 Figure 3-18 The front panel diagram of H0FL-EthMux.SAP16.MS (-48V DC/100~240V...
  • Page 10 Figure 5-15 Connect dual ~220V AC power cable ............... 75 Figure 7-1 System Info ......................83 Figure 7-2 E1 channel Alarm Status ..................84 Figure 7-3 ETH port Alarm Status ..................84 Figure 7-4 Power Status ....................... 85 Beijing Huahuan Electronics Co., Ltd. Version 2.1(Sept.2019)
  • Page 11 Figure 7-7 ETH alarm shielding management..............86 Figure 7-8 Power alarm shielding management ..............86 Figure 7-9 Ethernet port management of H0FL-EthMux.SA16 ........... 87 Figure 7-10 Ethernet port management of H0FL-EthMux.SAP1602 ........87 Figure 7-11 Ethernet advance management ................89 Figure 7-12 Ethernet port QoS configuration ...............
  • Page 12 Figure 7-41 Upgrade online 4—upgrade is completed ............112 Figure 7-42 Download the configuration file ..............112 Figure 7-43 Upload the configuration file ................113 Figure 7-44 Reboot device ....................113 Figure 7-45 CLI settings ..................... 113 viii Beijing Huahuan Electronics Co., Ltd. Version 2.1(Sept.2019)
  • Page 13 Table 1-2 Product ordering information ................15 Table 3-1 LED functional descriptions of H0FL-EthMux.SA16/SAP16 series devices..30 Table 3-2 DIP switches definition on the front panel of H0FL-EthMux.SA16/ SAP16 series device ............................ 33 Table 3-3 DIP switches definition on bottom panel of H0FL-EthMux.SA16/SAP16 series device ............................
  • Page 14 Table 7-1 Ethernet port management parameters ..............87 Table 7-2 Speed class of Ethernet interface ................90 Table 7-3 VLAN management parameters ................93 Table 7-4 E1 Management parameters ................. 97 Table 7-5 SNMP management parameters ................105 Beijing Huahuan Electronics Co., Ltd. Version 2.1(Sept.2019)

  • Page 15: Overview

    Please read this manual carefully before using the product. Specific models of H0FL-EthMux.SA16/SAP16 series devices are listed in Table 1-1. According to different PoE modes, H0FL-EthMux.SAP16 series devices can be divided into two types: MS (Mid-span PSE) and ES (Endpoint PSE).

  • Page 16: Table 1-1 H0Fl-Ethmux.sa16 Series Device Models

    User's Manual 1 Overview H0FL-EthMux.SA16/SAP16 Series Devices Table 1-1 H0FL-EthMux.SA16 series device models 100Base-Tx 100Base-Fx Type E1/T1 Remark electrical optical E1/T1 port port port number number number H0FL-EthMux. SA16 H0FL-EthMux. SA1608 H0FL-EthMux. SA1604 H0FL-EthMux. MS: 2 SAP16.MS uplink ports H0FL-EthMux.

  • Page 17: Features

    Ethernet built-in layer 2 switch; VLAN (802.1Q based and QinQ based); QoS (port based, 802.1P based and ToS based); port speed limit, flow control, MAC address automatic learning and MAC address aging time setting; Version 2.1(Sept.2019) Beijing Huahuan Electronics Co., Ltd.

  • Page 18: Product Ordering Information

    H0FL-EthMux. SA16 series devices: AC + DC, dual AC or dual DC power supply, 1 + 1 backup. 1.3 Product Ordering Information Product ordering information of H0FL-EthMux.SA16/SAP16 series products is shown in Table 1-2. Beijing Huahuan Electronics Co., Ltd. Version 2.1(Sept.2019)

  • Page 19: Table 1-2 Product Ordering Information

    MAC address automatic learning and MAC address aging time setting; Provides 8 E1/T1 ports, 120Ω-E1/100Ω-T1  balanced interface, using RJ-48C socket;  Supports AC+DC, dual AC or dual DC power supply, realizing 1+1 backup Version 2.1(Sept.2019) Beijing Huahuan Electronics Co., Ltd.
  • Page 20 55V DC, feeding power can be up to 50W, which is MS (Mid-span PSE); Provides 16 E1/T1 ports, 120Ω-E1/100Ω-T1  balanced interface, using dual-E1 socket;  Supports AC 100~240V and DC -48V dual-power supply Beijing Huahuan Electronics Co., Ltd. Version 2.1(Sept.2019)
  • Page 21 55V DC, feeding power can be up to 50W, which is MS (Mid-span PSE); Provides 4 E1/T1 ports, 120Ω-E1/100Ω-T1  balanced interface, using RJ-48C socket;  Supports AC 100~240V and DC -48V dual-power supply Version 2.1(Sept.2019) Beijing Huahuan Electronics Co., Ltd.
  • Page 22 18W (0.75A), which is MS (Mid-span PSE); Provides 2 E1/T1 ports, 120Ω-E1/100Ω-T1  balanced interface, using RJ-48C socket;  Supports AC 100~240V and DC -48V dual-power supply Beijing Huahuan Electronics Co., Ltd. Version 2.1(Sept.2019)
  • Page 23 55V DC, feeding power can be up to 50W, which is ES (Endpoint PSE); Provides 16 E1/T1 ports, 120Ω-E1/100Ω-T1  balanced interface, using dual-E1 socket;  Supports AC 100~240V and DC -48V dual-power supply Version 2.1(Sept.2019) Beijing Huahuan Electronics Co., Ltd.
  • Page 24 55V DC, feeding power can be up to 50W, which is ES (Endpoint PSE); Provides 4 E1/T1 ports, 120Ω-E1/100Ω-T1  balanced interface, using RJ-48C socket;  Supports AC 100~240V and DC -48V dual-power supply Beijing Huahuan Electronics Co., Ltd. Version 2.1(Sept.2019)
  • Page 25 55V DC, feeding power can be up to 50W, which is ES (Endpoint PSE); 120Ω-E1/100Ω-T1  Provides E1/T1 port, balanced interface, using RJ-48C socket;  Supports AC 100~240V and DC -48V dual-power supply Version 2.1(Sept.2019) Beijing Huahuan Electronics Co., Ltd.

  • Page 26: Typical Applications

    2 Typical Applications H0FL-EthMux.SA16/SAP16 Series Devices Typical Applications H0FL-EthMux.SA16/SAP16 series devices can be interconnected with CO aggregation E1 over Ethernet interface converter H0FL-EthMux.SA63, making point-to-multipoint application. And can also make point to point connection realize interconnections within the same Ethernet sub-network,...

  • Page 27: Figure 2-2 Typical Application Of H0Fl-Ethmux.sa16/Sap16 Series Devices In Wireless Network

    User's Manual H0FL-EthMux.SA16/SAP16 Series Devices 2 Typical Applications Figure 2-2 Typical application of H0FL-EthMux.SA16/SAP16 series devices in wireless network E1/T1 Uplink Uplink Wireless Transport E1/T1 H0FL- H0FL- E 1/T1 EthMux EthMux E1/T1 SA16/SAP16 series SA16/SAP16 series Computer Local Ethernet Figure 2-3 Typical application of H0FL-EthMux.SA16/SAP16 series device...
  • Page 28 At this time, Ethernet lightning protection protector must be combined with the uplink network cable; otherwise, the lightning will seriously damage device and pose threat to the field staff! Beijing Huahuan Electronics Co., Ltd. Version 2.1(Sept.2019)

  • Page 29: System Architecture

    LEDs DIPs H0FL-EthMux.SA16/SAP16 series devices are located on the front panel. The front panels are shown in Figure 3-1 and Figure 3-19 (not in the exact proportion, some interfaces and LEDs are added or removed according to selection of actual devices).

  • Page 30: Figure 3-3 The Front Panel Diagram Of H0Fl-Ethmux.sa1604 (Dual 100~240V Ac)

    LOS/ AIS E1/T1 E1/T1 /ERR /ERR Data 1 Data 2/NM OLOS FAIL NOTE front rear panels H0FL-EthMux.SAP1602.MS H0FL-EthMux.SAP1602.MS2410 are the same, we can distinguish these two types through the labels on their baseplates. Beijing Huahuan Electronics Co., Ltd. Version 2.1(Sept.2019)

  • Page 31: Figure 3-7 The Front Panel Diagram Of H0Fl-Ethmux.sap1602.Es (-48V Dc/100~240V Ac)

    Figure 3-10 The front panel diagram of H0FL-EthMux.SA1608 (-48V DC/100~240V AC) Uplink1 Uplink2 H0FL- EthMux.SA1608 MASK E1/T1 100FX TMP _IP FAR-END LOS/AIS/ 1 2 3 4 5 6 7 8 Data1 Data2/NM OLOS FAIL Version 2.1(Sept.2019) Beijing Huahuan Electronics Co., Ltd.

  • Page 32: Figure 3-11 The Front Panel Diagram Of H0Fl-Ethmux.sa1608 (Dual -48V Dc)

    FAIL Figure 3-14 The front panel diagram of H0FL-EthMux.SAP1608.ES (-48V DC/100~240V AC) Uplink1 Uplink2 H0FL-EthMux.SAP1608.ES MASK E1/T1 100FX TMP_IP FAR-END UP PKT LOS LOS/AIS/ERR OLOS 3 4 5 6 Data 1 Data2/NM FAIL Beijing Huahuan Electronics Co., Ltd. Version 2.1(Sept.2019)

  • Page 33: Figure 3-15 The Front Panel Diagram Of H0Fl-Ethmux.sa16 (-48V Dc/100~240V Ac)

    LOS/AIS/E FAR-END H0FL-EthMux.SA16 MASK 100FX TMP _IP E1/T1 Data 1 Data2/NM OLOS FAIL Figure 3-16 The front panel diagram of H0FL-EthMux.SA16 (dual -48V DC) Uplink1 Uplink2 9 10 11 12 13 14 15 16 FAR-END LOS/AIS/E H0FL-EthMux.SA16 DC 48V DC 48V...

  • Page 34: Led Functional Descriptions

    User's Manual 3 System Architecture H0FL-EthMux.SA16/SAP16 Series Devices 3.1.2 LED Functional Descriptions Front panel LED functional descriptions of H0FL-EthMux.SA16/SAP16 series devices are shown in Table 3-1. Table 3-1 LED functional descriptions of H0FL-EthMux.SA16/SAP16 series devices Definition Label Color Remark System working state...
  • Page 35 Off: Link abnormally (Ethernet Yellow Ethernet electrical One FDX electrical port rate instructions: indicator on the port FDX) right of On : rate is HULL Ethernet Off : rate is HALF electrical port socket Version 2.1(Sept.2019) Beijing Huahuan Electronics Co., Ltd.
  • Page 36 E1/T1 service lost package instructions 1~16 in Ethernet link: On: cannot receive the E1/T1 remote package Blink: remote E1/T1 lost package or disorderly sequence Off: remote E1/T1 no lost package and disorderly sequence Beijing Huahuan Electronics Co., Ltd. Version 2.1(Sept.2019)

  • Page 37: Dip Switch

    Off: no alarm 3.1.3 DIP Switch There is a 4-position DIP switch on the front panel of H0FL-EthMux.SA16 /SAP16 series device; the definition is show in Table 3-2. Table 3-2 DIP switches definition on the front panel of H0FL-EthMux.SA16/...
  • Page 38 H0FL-EthMux.SA1608/ SAP1608.MS/SAP1608.ES; four groups of 8-position DIP switches--DIP1 ~DIP4 on the bottom of H0FL-EthMux.SA16/SAP16.MS/SAP16.ES, used to control the E1/T1 interface impedance and 75 Ω unbalanced interface shell grounding, every 8 dips control 4 channels E1/T1 interface, DIP1 definiation is shown in Table 3-3, DIP2-DIP4 definition is on the analogy of this.

  • Page 39: Table 3-3 Dip Switches Definition On Bottom Panel Of H0Fl-Ethmux.sa16/Sap16 Series Device

    Shared by all the types impedance is 75 Ω except H0FL-EthMux.SAP1601/ OFF: the 3 E1/T1 Interface SAP1602 impedance is 120Ω-E1/100Ω-T1 ON: the 3 E1/T1 interface shell grounding OFF: the 3 E1/T1 interface shell suspended Version 2.1(Sept.2019) Beijing Huahuan Electronics Co., Ltd.

  • Page 40: E1/T1 Interface

    /SAP1602.MS2410/SAP1601.ES are not defined. 3.1.4 E1/T1 Interface H0FL-EthMux.SAP1601.MS/SAP1601.ES/SAP1602.MS/SAP1602.MS24 10/SAP1602.ES/SA1604/SAP1604.MS/SAP1604.ES/SA1608/SAP1608.M S/SAP1608.ES uses RJ-48C socket, and H0FL-EthMux.SA16/SAP16.MS /SAP16.ES uses dual-E1 socket. RJ-48C and dual-E1 connectors, line orders and signals are defined in Table 3-4 and Table 3-5. H0FL-EthMux.SA16/SAP16 series can implement 75Ω/120Ω unbalanced...

  • Page 41: Figure 3-20 Pin Order Of Rj48-C And Dual-E1 Connectors

    Using 5 cables to make pairs pair colors of the recommended E1_IN(1)- paired Blue E1_IN(1)+ Blue white E1_OUT(1)+ paired Orange E1_OUT(1)- Orange white E1_IN(2)- paired Green E1_IN(2)+ Green white E1_OUT(2)+ paired Brown E1_OUT(2)- Brown and white Version 2.1(Sept.2019) Beijing Huahuan Electronics Co., Ltd.

  • Page 42: Figure 3-21 E1/T1 Loop Back

    User's Manual 3 System Architecture H0FL-EthMux.SA16/SAP16 Series Devices On the bottom of H0FL-EthMux.SA16/SAP16 series device, there are 1~4 groups of 2/4/8-position DIP switches, used to control the impedance of the E1/T1 interface and 75 Ω unbalanced interface shell grounded. When the...

  • Page 43: Ethernet Port

    E1/T1 interface card doesn’t support hot plug. If it needs to be replaced, please shut off the power first.  E1/T1 interface of H0FL-EthMux.SA16/SAP16 device uses dual E1 socket, that is one socket corresponds two channels of E1/T1, belonging to proprietary definition, don't make the interface with the H0FL-EthMux.SA1604/SAP1604.MS/SAP1604.ES/SA1608/SAP160...

  • Page 44: Table 3-6 Rj45 Ethernet Socket Definition

    6, 7; common Ethernet service priority is set to 0-5. Ethernet electrical port of H0FL-EthMux.SA16/SAP16 series device uses RJ45 socket. Pin definition of RJ45 Ethernet socket is shown in Table 3-6. Ethernet optical port can use dual-fiber SFP optical module and the port labeled (...

  • Page 45: Table 3-7 Support Poe Function Rj45 Ethernet Socket Definition

     When H0FL-EthMux.SAP16 series device enables Ethernet power supply function, Ethernet loop back won’t be set (including software loop back and used Ethernet cable of hardware loop back). NOTE Version 2.1(Sept.2019) Beijing Huahuan Electronics Co., Ltd.

  • Page 46: Power Switch And Power Socket

    3.1.6 Power Switch and Power Socket H0FL-EthMux.SA16/SAP16 series device supports -48V DC and ~220V AC power supplies. The ~220V AC power supply uses ~220V AC power socket which complies with national standard and is connected by standard three-core power cable.

  • Page 47: Timing Modes

    E1/T1 stream to meet the requirements of TDM signals. Users can set various operational parameters of H0FL-EthMux.SA16/ SAP16 series device through Network Management. 3.3 Timing Modes As an E1/T1 signal transparent transmission device, H0FL-EthMux.SA16/...

  • Page 48: Figure 3-22 Timing Modes

    H0FL-EthMux.SA16/SAP16 series device uses the clock extracted from E1/T1 input port signal to reconstruct E1/T1 output stream, the wander formed in network transmission can be absorbed completely by internal memory of H0FL-EthMux.SA16/SAP16 series device. Once the input signal loss fault, it will automatically switch to adaptive timing.

  • Page 49: Figure 3-23 Diagram For Device Interconnection

    One typical error in applications is to let both communication devices (such as PCM terminal) work at slave clocks. Neither transmission devices nor H0FL-EthMux.SA16/SAP16 series device will support such operation. At the beginning of startup, the clock usually takes several minutes to be locked.

  • Page 50: System Structure

    Slave clock Not allowed 3.4 System Structure H0FL-EthMux.SA16/SAP16 series device uses standard 1U chassis, which is composed by E1/T1 interface board, system board and power module. System structures of H0FL-EthMux.SA16/SAP16 series device are shown in Figure 3-24 and Figure 3-25.

  • Page 51: Figure 3-25 H0Fl-Ethmux.sap16 Series Device System Structure

    User's Manual H0FL-EthMux.SA16/SAP16 Series Devices 3 System Architecture Figure 3-25 H0FL-EthMux.SAP16 series device system structure power module PoE board System Interface board board Version 2.1(Sept.2019) Beijing Huahuan Electronics Co., Ltd.

  • Page 52: Cable Introduction

    ZJN.BH4.855.035 H0FL-EthMux.SAP16 series devices 4.1.1 AC Power Cable (ZJN.BH4.855.080) Appearance AC power supply cable (ZJN.BH4.855.080) used by device depends on local standards, while different regions have different standards, as shown in Table 4-2. Beijing Huahuan Electronics Co., Ltd. Version 2.1(Sept.2019)

  • Page 53: Figure 4-1 Chinese Standard Ac Power Cable (Zjn.bh4.855.080)

    The AC power cable (ZJN.BH4.855.080-B) which meets German standard is composed of German standard French-mode two-plug connector and pins terminal, as shown in Figure 4-2. Figure 4-2 German standard AC power cable (ZJN.BH4.855.080-B) Version 2.1(Sept.2019) Beijing Huahuan Electronics Co., Ltd.

  • Page 54: Figure 4-3 South Africa Standard Ac Power Cable (Zjn.bh4.855.080-D)

    (ZJN.BH4.855.080-E) The AC power cable (ZJN.BH4.855.080-F) which meets British standard is composed of British standard three-plug connector and pins terminal, as shown in Figure 4-5. Figure 4-5 British standard AC power cable (ZJN.BH4.855.080-F) Beijing Huahuan Electronics Co., Ltd. Version 2.1(Sept.2019)

  • Page 55: Ac Power Cable (Zjn.bh4.855.035)

    ≥0.5mm Diameter Length 1.5m 4.1.2 AC Power Cable (ZJN.BH4.855.035) Appearance AC power supply cable (ZJN.BH4.855.035) used by device depends on local standards, while different regions have different standards, as shown in Table 4-4. Version 2.1(Sept.2019) Beijing Huahuan Electronics Co., Ltd.

  • Page 56: Figure 4-7 Chinese Standard Ac Power Cable

    Figure 4-7 Chinese standard AC power cable The AC power cable which meets German standard (ZJN.BH4.855.035-B) is composed of German standard French-mode two-plug connector and pins terminal, as shown in Figure 4-8. Figure 4-8 German standard AC power cable Beijing Huahuan Electronics Co., Ltd. Version 2.1(Sept.2019)

  • Page 57: Figure 4-9 South Africa Ac Power Cable

    Figure 4-11 British standard AC power cable The AC power cable which meets North American standard (ZJN.BH4.855.035-G) is composed of North American standard three-plug connector and pins terminal, as shown in Figure 4-12. Version 2.1(Sept.2019) Beijing Huahuan Electronics Co., Ltd.

  • Page 58: Dc Power Cable

    DC power supply socket, and then transmits power to the entire device. According to different devices, DC power cables ZJN.BH4.855.079 and ZJN.BH4.855.050 will be configured. See details in Table 4-6. Table 4-6 DC power cable types Cable types Applicable devices ZJN.BH4.855.079 H0FL-EthMux.SA16 series devices Beijing Huahuan Electronics Co., Ltd. Version 2.1(Sept.2019)

  • Page 59: Dc Power Cable (Zjn.bh4.855.079)

    Figure 4-13 -48V DC power cable appearance CGND -48V GND -48V Pin Assignments Table 4-7 lists DC power pin assignments. Table 4-7 DC power pin assignments Color Signal definition Blue -48V Yellow green CGND BGND Version 2.1(Sept.2019) Beijing Huahuan Electronics Co., Ltd.

  • Page 60: Dc Power Cable (Zjn.bh4.855.050)

    Figure 4-14 DC power cable appearance -48V CGND -48V BGND 2.5m BGND Pin Assignments Table 4-8 lists DC power pin assignments. Table 4-8 DC power pin assignments Color Signal definition Blue -48V Yellow green CGND BGND Beijing Huahuan Electronics Co., Ltd. Version 2.1(Sept.2019)

  • Page 61: Fiber

    4.4 Ethernet Cable Introduction  Used to connect the Ethernet electrical interface with other devices.  Used to connect the Ethernet monitoring interface on NM card with network interface on NM PC machine. Version 2.1(Sept.2019) Beijing Huahuan Electronics Co., Ltd.

  • Page 62: Figure 4-16 Ethernet Cable

    Table 4-9 lists the line orders of EIA/TIA 568A and EIA/TIA 568B standards. Table 4-9 Line orders of EIA/TIA 568A and EIA/TIA 568B standards Connector (RJ45) EIA/TIA568A EIA/TIA568B PIN 1 White/Green White/Orange Beijing Huahuan Electronics Co., Ltd. Version 2.1(Sept.2019)

  • Page 63: Figure 4-17 Line Order Of The Straight-Through Cable

    PIN 8 PIN 8 RJ45 connectors on both ends of crossover cable need to use different standard line orders, usually one RJ45 connector follows EIA/TIA568A standard; the other RJ45 connector follows EIA/TIA568B standard. Version 2.1(Sept.2019) Beijing Huahuan Electronics Co., Ltd.

  • Page 64: Figure 4-18 Line Order Of The 100 Mbit/S Crossover Cable

    Connector type RJ45 connector (crystal head) Category 5 unshielded twisted pair (UTP-5) or Cable type shielded twisted pair (STP) Color Dark grey 100.0Ω Characteristic impedance Inner conductor wire 0.510mm diameter Breakdown voltage 500.0V Beijing Huahuan Electronics Co., Ltd. Version 2.1(Sept.2019)

  • Page 65: E1 Cable

    See E1 cable types in Table 4-11. Table 4-11 E1 cable types Cable type Cable Applicable devices model RJ48-C BH4.850.122 H0FL-EthMux.SAP1601.MS/SAP1601. socket cable ES/SAP1602.MS/SAP1602.MS2410/SA P1602.ES/SA1604/SAP1604.MS/ SAP1604.ES/SA1608/SAP1608.MS/SA P1608.ES Dual E1 BH4.850.123 H0FL-EthMux.SA16/SAP16.MS/SAP16 socket cable Version 2.1(Sept.2019) Beijing Huahuan Electronics Co., Ltd.

  • Page 66: Rj48-C Socket Cable (Bh4.850.122)

    Table 4-12 shows pin assignments of RJ48-C socket cable (BH4.850.122). Table 4-12 pin assignments of RJ48-C socket cable (BH4.850.122) BNC socket Pin of RJ45 connector BNC_R shell/ BNC_R skin BNC_R core / BNC_R core BNC_T shell/ BNC_T skin BNC_T core /BNC_T core Beijing Huahuan Electronics Co., Ltd. Version 2.1(Sept.2019)

  • Page 67: Dual E1 Socket Cable (Bh4.850.123)

    Dual E1 socket cable (BH4.850.123) is composed of 1 RJ45 crystal head and 4 BNC heads, whose appearance diagram is shown in Figure 4-20. Figure 4-20 E1 cable (BH4.850.123) diagram RJ45 Pin Assignments Table 3-5 shows pin assignments of dual E1 socket cable (BH4.850.123). Version 2.1(Sept.2019) Beijing Huahuan Electronics Co., Ltd.

  • Page 68: Table 4-14 Technical Specifications Of Dual E1 Socket Cable (Bh4.850.123)

    Table 4-14 Technical specifications of dual E1 socket cable (BH4.850.123) Item Description Cable name RJ45/BNC connector adapter cable Cable type SYV75-2-1 (diameter: 2mm, coaxial cable) Connector RJ45 crystal head, BNC head Cable length L1=20cm; L2=25cm; L3=30cm; L4=35cm Beijing Huahuan Electronics Co., Ltd. Version 2.1(Sept.2019)

  • Page 69: Device Installation

    5 Device Installation Device Installation 5.1 Installation H0FL-EthMux.SA16/SAP16 series devices are installed in the same way; here we use H0FL-EthMux.SA16 as an example to introduce detailed installation methods. 5.1.1 Install the Chassis Step 1 Mark the position with a marking pen.

  • Page 70: Connect The Fiber

    Figure 5-1 Put the chassis into a cabinet or a rack Step 3 Fix the chassis. Fixing H0FL-EthMux.SA16 requires a person to hold the chassis by one hand and fix the chassis to the mounting bracket with a screw driver by another hand, and then change the position and fix the other side to the mounting bracket too, as shown in Figure 5-2.

  • Page 71: Figure 5-3 Insert The Optical Module

    When optical fiber connector is inserted or pulled, do not directly pull the optical fiber. When no optical fiber is connected, please ensure that the protection plug is inserted to prevent dust from entering. Version 2.1(Sept.2019) Beijing Huahuan Electronics Co., Ltd.

  • Page 72: Connect The Ethernet Cable

    Step 1 If you select 120Ω impedance in E1 Port, please make E1 cables according to requirements. Step 2 Aim the crystal head of E1 cable at the device’s E1 port; insert it into the port with moderate force, as shown in Figure 5-6. Beijing Huahuan Electronics Co., Ltd. Version 2.1(Sept.2019)

  • Page 73: Figure 5-6 Connect E1 Cable (120Ω)

    Step 4 Aim the bayonet of BNC cable’s male interface at the standoff of interface conversion cable BH4.850.122’s BNC interface, then insert it into the standoff with moderate force and turn it right to the slot, as shown in Figure 5-8. Version 2.1(Sept.2019) Beijing Huahuan Electronics Co., Ltd.

  • Page 74: Figure 5-8 Connect E1 Cable (75Ω)

    Step 1 Make E1 cables according to the pin definition in Table 3-5. Step 2 Aim the crystal head of E1 cable at the device’s E1 port; and then insert it into the socket with moderate force, as shown in Figure 5-9. Beijing Huahuan Electronics Co., Ltd. Version 2.1(Sept.2019)

  • Page 75: Figure 5-9 Connect E1 Cable (120Ω)

    Step 2 Aim the bayonet of BNC male interface at the standoff of interface conversion cable BH4.850.123’s BNC interface, then insert it into the standoff with moderate force and turn it right to the slot. Version 2.1(Sept.2019) Beijing Huahuan Electronics Co., Ltd.

  • Page 76: Connect The Power Cable

    Step 1 When choosing AC power supply from -48V DC/~220V AC, please aim the AC power plug of the IEC standard power cable sent with the device at the device’s ~220V standard AC power socket, and then insert it into the socket with moderate force. Beijing Huahuan Electronics Co., Ltd. Version 2.1(Sept.2019)

  • Page 77: Figure 5-12 Connect Ac Power Cable Of -48V Dc/~220V Ac

    2×2 power plug of the DC power cable sent with the device at the device’s 2×2 power socket, and then insert it into the socket with moderate force. Figure 5-13 Connect DC power cable of -48V DC/~220V AC Version 2.1(Sept.2019) Beijing Huahuan Electronics Co., Ltd.

  • Page 78: Figure 5-14 Connect Dual -48V Dc Power Cable

    The electrode on the bottom left of DC socket is protection ground connected to the yellow-green wire. Make sure the protection ground is rightly connected when installing the device. Beijing Huahuan Electronics Co., Ltd. Version 2.1(Sept.2019)

  • Page 79: Post-Installation Check

    5.2 Post-installation Check Table 5-1 Post-installation check items Number Descriptions Method There are no other things placed on the chassis Check The screws must be secured correctly Check Version 2.1(Sept.2019) Beijing Huahuan Electronics Co., Ltd.
  • Page 80 Check entire segment of copper core. The cable should have no connection in the middle or scratch on the skin The power cables and ground cables must be Check corrected correctly and reliably Beijing Huahuan Electronics Co., Ltd. Version 2.1(Sept.2019)
  • Page 81 Generally, the curvature radius of the optical fiber must be greater than or equal to 40mm. There should be no sharp components on the routing path of the optical fibers Version 2.1(Sept.2019) Beijing Huahuan Electronics Co., Ltd.

  • Page 82: Power On

    Check carefully with optical binders 5.3 Power on After powering on the H0FL-EthMux.SA16/SAP16 series device, the system should start after 90 seconds to work normally. When SYS LED blinks and other LEDs are randomly on, when the LEDs indicate state alarms normally, the device enters the working state.

  • Page 83: Usage And Maintenance

    H0FL-EthMux.SA16/SAP16 Series Devices 6 Usage and Maintenance Usage and Maintenance After powering on the H0FL-EthMux.SA16/SAP16 series device, the system should start after 90 seconds to work normally. The system completion startup SYS indicator changes from long on to flashing. You...

  • Page 84: Ethernet Electrical Port Link Led Off

    1. Such alarm doesn’t indicate fault conditions on the local device, but to detect the alarm information of E1/T1 terminal connected to the local device. The operation status of corresponding device should be checked. Beijing Huahuan Electronics Co., Ltd. Version 2.1(Sept.2019)

  • Page 85: Two Ends Of Devices Cannot Connect

    6.1.7 Both Sides Terminals of E1/T1 Have Slips Check E1/T1 terminals connected on both sides of H0FL-EthMux.SA16/ SAP16 series devices, whether both of them use slave clock timing mode, at least one of terminals should use master clock.

  • Page 86: Device Monitoring

    All Web Server includes 7 parts: System Info, Alarm Status, Alarm Management, ETH Management, E1 Management, Internal Management, SNMP Management, and System. Web Server NM of H0FL-EthMux.SA16/SAP1602 will be introduced in the following part. Beijing Huahuan Electronics Co., Ltd. Version 2.1(Sept.2019)

  • Page 87: System Info

    Figure 7-1. The default setting IP address is 192.168.1.2. Figure 7-1 System Info 7.2 Alarm Status Alarm status includes E1 Channel, Ethernet Port, Power Supply and Alarm Log. Version 2.1(Sept.2019) Beijing Huahuan Electronics Co., Ltd.

  • Page 88: E1 Channel Status

    1 optical port LINK UP/DOWN status, as shown in Figure 7-3. Figure 7-3 ETH port Alarm Status 7.2.3 Power Status Click left side Alarm Status–Power Alarm will show Power Alarm Status, including 2 channels power-off alarm status information, as shown in Figure 7-4. Beijing Huahuan Electronics Co., Ltd. Version 2.1(Sept.2019)

  • Page 89: Alarm Log

    Alarm Management includes E1 Channel, Ethernet Port and Power Alarm Shielding. Alarm Shielding Management If alarm mask is set, this alarm will be shielded at alarm log, alarm indicator on the front panel and it will not be displayed no matter what Version 2.1(Sept.2019) Beijing Huahuan Electronics Co., Ltd.

  • Page 90: Eth Management

    Figure 7-7 ETH alarm shielding management Figure 7-8 Power alarm shielding management 7.4 ETH Management ETH Management includes Ethernet port management, Ethernet advance management (MAC address aging time, QoS management and port rate control) and VLAN management. Beijing Huahuan Electronics Co., Ltd. Version 2.1(Sept.2019)

  • Page 91: Ethernet Port Management

    User's Manual H0FL-EthMux.SA16/SAP16 Series Devices 7 Device Monitoring 7.4.1 Ethernet Port Management Figure 7-9 Ethernet port management of H0FL-EthMux.SA16 Figure 7-10 Ethernet port management of H0FL-EthMux.SAP1602 Table 7-1 Ethernet port management parameters Parameters Options Instruction Ethernet Port Numbers for 5 Ethernet ports...
  • Page 92 Optical interface work modes have 100M full indicate Ethernet POE mode Mode hardware configuration, Management mode is supported by our products Enable Enable and disable control of Ethernet uplink port function, disable is by default Beijing Huahuan Electronics Co., Ltd. Version 2.1(Sept.2019)

  • Page 93: Ethernet Advance Management

    Figure 7-11 Ethernet advance management For Ethernet ports 1~5, we can enable QoS, QoS priority tags based on port, IEEE 802.1p and TOS are supported. QoS is enabled by default. Figure 7-12 Ethernet port QoS configuration Version 2.1(Sept.2019) Beijing Huahuan Electronics Co., Ltd.

  • Page 94: Figure 7-13 Ethernet Port Rate Control Configuration And Storm Suppression

    Figure 7-13 Ethernet port rate control configuration and storm suppression Table 7-2 Speed class of Ethernet interface Speed limit range Speed class Minimum Maximum interval speed speed Lower than 2M 64KB 64KB 1.792MB Higher than 2M, 100MB lower than 100M Beijing Huahuan Electronics Co., Ltd. Version 2.1(Sept.2019)

  • Page 95: Vlan Management

    Figure 7-15 Configure QinQ VLAN automatically Uplink 1 + 1 hitless protection function is forbidden, Ethernet of H0FL-EthMux.SA16 series device supports 802.1Q VLAN and QinQ VLAN. 802.1Q VLAN is that adding the VLAN tag in front of Ethernet frame type. QinQ VLAN is that nesting the VLAN (S-Tag) of operators in 802.1Q outer layer to enable the VLAN stacking.

  • Page 96: Figure 7-16 Vlan Management 1-Valn Configuration

    7 Device Monitoring H0FL-EthMux.SA16/SAP16 Series Devices Figure 7-16 VLAN management 1—VALN configuration Figure 7-17 VLAN management 2—E1 port VLAN configuration Figure 7-18 VLAN management 3—Ethernet port VLAN configuration Figure 7-19 VLAN management 4—VLAN Table Beijing Huahuan Electronics Co., Ltd. Version 2.1(Sept.2019)

  • Page 97: Figure 7-20 Vlan Management 5-Vlan Configuration Confirmation

    Disable: not supply slave transmission Protection Control channel Enable: both master slave transmission channels transport service and no data loss during protection switching Attribute of 1~5 Ethernet port, including Attribute uplink port and data/monitoring port Version 2.1(Sept.2019) Beijing Huahuan Electronics Co., Ltd.
  • Page 98 VLAN group ID, support 1-4094 Mbr. VLAN group member, it will be a VLAN member when ticking off Untag Tagged/untagged, ticking off means untag NOTE Beijing Huahuan Electronics Co., Ltd. Version 2.1(Sept.2019)

  • Page 99: E1 Management

    E1 management includes E1 service management, E1 advance management, and bit error test. Every section has many parameter settings as shown in Table 7-4. 7.5.1 E1 Service Management Figure 7-21 E1 channel Management Version 2.1(Sept.2019) Beijing Huahuan Electronics Co., Ltd.

  • Page 100: E1 Advance Management

    Figure 7-22 E1 channel advance Management Figure 7-23 TTL/TOS configuration of E1 channel Management Figure 7-24 MPLS parameter settings page of E1 channel Management E1 Management parameter settings are shown in Table 7-4. Beijing Huahuan Electronics Co., Ltd. Version 2.1(Sept.2019)

  • Page 101: Table 7-4 E1 Management Parameters

    Jitter Buffer 2~255ms Jitter absorption buffer: worked with the link with bigger jitter, used to buffer the receiving packets; buffer coming packets to eliminate jitter. Range: 2~255ms Default: 16ms Version 2.1(Sept.2019) Beijing Huahuan Electronics Co., Ltd.
  • Page 102 E1 data encapsulated in 4×128 the packet is, the lower byte expense ratio is, the higher bandwidth efficiency is and the bigger time delay is. Vice versa. Default: 2 Real-time Transport Protocol, Enable Beijing Huahuan Electronics Co., Ltd. Version 2.1(Sept.2019)
  • Page 103 Tunnel 1048575] Label2 Service Host Service Host IP Address Address Service Service Host IP Mask Host Mask Default Next Hop Next Hop TTL: Time To Live, Default: TTL/TOS TOS: Type Service, Default: 184 Version 2.1(Sept.2019) Beijing Huahuan Electronics Co., Ltd.
  • Page 104 H0FL-EthMux.SA63 device Ethernet MAC address has formed, you don’t need to set. H0FL-EthMux.SA16 series device supports ARP protocol addressing; the opposite device or default gateway device's MAC address can automatically get through Negotiation, you don’t need to set the opposite end MAC address, but need to set up its IP address.

  • Page 105: Error Test

    In order to improve the transmission service quality of E1 data, according to provide transmission Ethernet whether support IEEE 802.1 Q, 802.1 AD and 802.1 p standard, H0FL-EthMux.SA16/ SAP16 series device can set the standard is packed to join contain priority VLAN label (V-Tag) or QinQ label (S-Tag).

  • Page 106: Internal Management

    User's Manual 7 Device Monitoring H0FL-EthMux.SA16/SAP16 Series Devices Figure 7-25 Error test 7.6 Internal Management Internal Management interface is shown in Figure 7-26. Figure 7-26 Internal Management interface ConfigurationDescription Configure EthMux IP. Beijing Huahuan Electronics Co., Ltd. Version 2.1(Sept.2019)

  • Page 107: Figure 7-27 Configure Ethmux Ip

    Server Mode must be configured as Force MAC Mode and the MAC address of CPE shall be specified. Figure 7-28 Configure internal management Click the button on the right of Device1 Management above to enter the CPE Management interface. Version 2.1(Sept.2019) Beijing Huahuan Electronics Co., Ltd.

  • Page 108: Snmp Management

    H0FL-EthMux.SA16/SAP16 Series Devices Figure 7-29 Enter the CPE Management interface Manage CPE device. Figure 7-30 Manage CPE device 7.7 SNMP Management SMMP management is shown in Figure 7-31, SNMP management parameters are in Table 7-5. Beijing Huahuan Electronics Co., Ltd. Version 2.1(Sept.2019)

  • Page 109: Figure 7-31 Snmp Management

    Configure commands of device nodes Write Default: proprietary Community SNMP Trap Receive commands of Trap Community Default: public SNMP The communication ports connecting the devices with SNMP NM is SNMP Port protocol default port: 161 Number Version 2.1(Sept.2019) Beijing Huahuan Electronics Co., Ltd.

  • Page 110: System Configuration

    System time can be modified in three ways: manually enter the time, use Local PC time or SNTP network time. System time setting divides into time setting and device SNTP management, as shown in Figure 7-32. Beijing Huahuan Electronics Co., Ltd. Version 2.1(Sept.2019)

  • Page 111: Password Management

    Figure 7-33 Password Management 7.8.3 Default Parameter Recovery Default parameter recovery can make all the parameters recover to factory default except the IP address of devices and the devices will reboot Version 2.1(Sept.2019) Beijing Huahuan Electronics Co., Ltd.

  • Page 112: Figure 7-34 Default Parameters Recovery

    Figure 7-34 Default parameters recovery H0FL-EthMux.SA16 series device supports changing E1/T1 port number. For example, change E1/T1 port number of H0FL-EthMux.SA16 to 1. It is shown as follows: Step 1 Generate the configuration code by verification code. Type in the MAC address of H0FL-EthMux.SA16 and set E1 number as 1, and then click...

  • Page 113: Figure 7-35 Generate Configuration Code

    Step 2 Type in the configuration code and click Submit, E1/T1 port number will be changed. Figure 7-36 Change E1/T1 port number Step 3 Check E1/T1 port number in Configuration Status to confirm whether the change is successful. Version 2.1(Sept.2019) Beijing Huahuan Electronics Co., Ltd.

  • Page 114: Upgrade Online

    H0FL-EthMux.SA16/SAP16 Series Devices Figure 7-37 Change E1/T1 port number successfully 7.8.4 Upgrade Online Both hardware and software programs of H0FL-EthMux.SA16/SAP16 series device can be upgraded through ftp. We will take software program as an example to introduce online upgrade method.

  • Page 115: Figure 7-39 Upgrade Online 2-Upgrade Program

    Figure 7-40 Upgrade online 3—during the upgrade When the upgrade is done, click Confirm to reboot the device. Login Web management again to check the version number and confirm the upgrade is successful. Version 2.1(Sept.2019) Beijing Huahuan Electronics Co., Ltd.

  • Page 116: Load Configuration Profile

    Figure 7-42 Download the configuration file Upload the configuration file: Step 1 Click “Browse…” and select the profile to upload. Step 2 Click “Upload” to start uploading and finish when the upload is successful. Beijing Huahuan Electronics Co., Ltd. Version 2.1(Sept.2019)

  • Page 117: Reboot Device

    7 Device Monitoring Figure 7-43 Upload the configuration file 7.8.6 Reboot Device Figure 7-44 Reboot device 7.8.7 CLI Settings CLI Settings interface is as follows, supporting Telnet or SSH mode. Figure 7-45 CLI settings Version 2.1(Sept.2019) Beijing Huahuan Electronics Co., Ltd.

  • Page 118: Technical Specifications

    Ethernet electrical interface 1, 2, 4, 8, 16 E1/T1 interface 8.2 E1/T1 Interface Features Specification Instruction E1/T1 interface Complies with ITU-T G.703 recommendation ≤ 10ms Point-to-point single additional processing delay (minimum delay setting) Beijing Huahuan Electronics Co., Ltd. Version 2.1(Sept.2019)

  • Page 119: Ethernet Port

    H0FL-EthMux.SAP1602.MS/SAP1602.MS2 410/SAP1602.ES: 2 E1/T1 interfaces H0FL-EthMux.SA1604/SAP1604.MS/SAP1 604.ES: 4 E1/T1 interfaces H0FL-EthMuxSA1608/SAP1608.MS/SAP16 08.ES:8 E1/T1 interfaces H0FL-EthMuxSA16/SAP16.MS/SAP16.ES: 16 E1/T1 interfaces 8.3 Ethernet Port Specification Instruction Complies with IEEE 802.3, 802.1Q, 802.1ad, Related protocols 802.1P recommendation Version 2.1(Sept.2019) Beijing Huahuan Electronics Co., Ltd.

  • Page 120: Poe

    PoE function Provided by uplink ports of H0FL-EthMux. SAP16 series device MS (Mid-span PSE); ES (Endpoint PSE) PoE mode Voltage H0FL-EthMux.SAP1602.MS2410: 24V Other H0FL-EthMux.SAP16 series devices: Power H0FL-EthMux.SAP1602.MS2410: 24W Other H0FL-EthMux.SAP16 series devices: Beijing Huahuan Electronics Co., Ltd. Version 2.1(Sept.2019)

  • Page 121: Power Supply

    ES/SA1604/SA1608/SAP1604.MS/SAP160 4.ES/SAP1608.MS/SAP16.8.ES: ≤7W 8.6 Operating Environment Specification Instruction (-5~45)℃ Temperature ≤90% RH (non-condensing) Humidity 8.7 Dimensions Specification Instruction SA16 series devices H×D×W (mm): 44×136.5×440 SAP16 series devices H×D×W (mm): 44×255×440 (except H0FL-EthMux. SAP1602.MS2410) Version 2.1(Sept.2019) Beijing Huahuan Electronics Co., Ltd.

  • Page 122: Weight

    User's Manual 8 Technical Specifications H0FL-EthMux.SA16/SAP16 Series Devices Specification Instruction H0FL-EthMux.SAP160 H×D×W (mm): 44×175×440 2.MS2410 8.8 Weight Specification Instruction H0FL-EthMux.SA16 series device ≤2.0kg Weight H0FL-EthMux.SAP16 series device (except H0FL-EthMux.SAP1602.MS2410) ≤2.7kg H0FL-EthMux.SAP1602.MS241 ≤2.2kg Beijing Huahuan Electronics Co., Ltd. Version 2.1(Sept.2019)

  • Page 123: Appendix Acronyms And Abbreviation

    DSCP Differentiated Services Code point User Datagram Protocol Quality of Service Terms of Service Time To Live VLAN Virtual Local Area Network Real-time Transport Protocol SNTP Simple Network Time Protocol Power over Ethernet Version 2.1(Sept.2019) Beijing Huahuan Electronics Co., Ltd.
