PNI F10 User Manual

EN

Technical specifications:

• Led type: Cree XP-G3
• Led number: 1
• Led power: 6W
• Battery type: Li-Ion 18650 3.7 V
• Battery capacity: 2200mAh
• Dimensions: Φ35 x 150mm
• Weight: 157 g
• Material: Anodized aluminum
• Waterpoof class: IPX4
• Led lifespan: 50.000 h
• Luminous intensity: 500 lm
• Range: up to 200 m
• Maximum operating time: 3.2 h (with the battery fully charged)
• Multifunctional button
• Focus
• Micro USB port (for charging)
• Battery indicator: red (charging), green (charged)

Button functions:

• Press one: 100% of the luminous intensity
• Press twice: 20% of the luminous intensity
• Press three times: led off
• Press shortly twice: flash
• Press once for turning the led on, then hold pressed for reducing the luminous
intensity

Warnings:

• Child is not allowed to operate the equipment without adult supervision
• Do not light the equipment directly to human or animal eyes
• Please use the correct battery as requested, do not use different type of battery,
this may cause PCB damage problem
• Please take off the batteries from the equipment fif you don't use the product for a
long time

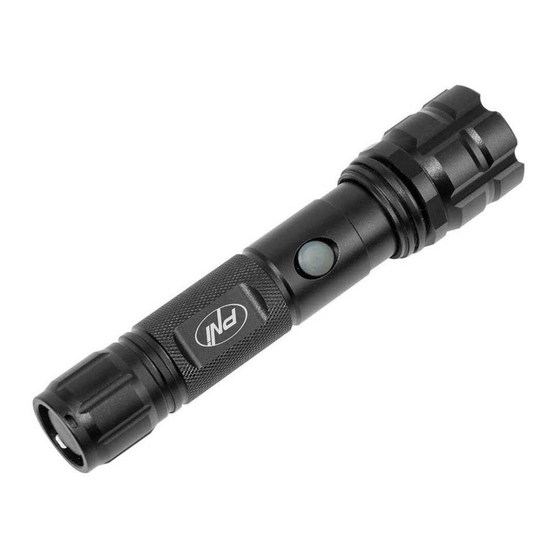

PNI Adventure F10 Flashlight
User manual
