Summary of Contents for Accsoon CineEye 2S Pro
- Page 1 CineEye 2S User Manual v1.0...
-
Page 2: Product Features

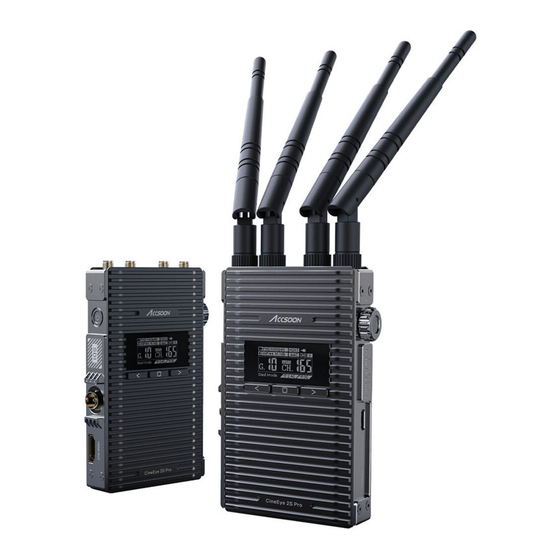

Product Features · High reliability dual band (2.4G and 5G) transmission · Transmission range of up to 1200 feet · Very low latency (<0.06 seconds) · SDI in and HDMI in · High quality audio transmission · Supports transmission to up to 4 receivers ·... - Page 3 In the Box Transmitter x1 Receiver x1 Antenna x9 User manual x1 Hot/Cold shoe mount adapter x2...
- Page 4 CineEye 2S Pro Transmitter ① ② ⑨ ⑤ ⑥ ③ ⑦ ④ ⑩ ⑧ ⑪ ⑫ ⑬ ① 1/4 Screw ⑧ Menu/OK Key ⑤ 1.3 Inch OLED ⑪ HDMI In ② Group Knob ⑥ Left Key ⑨ Power Button ⑫ DC Port ③...
- Page 5 CineEye 2S Pro Receiver ① ② ⑨ ⑤ ⑥ ③ ⑦ ④ ⑩ ⑧ ⑪ ⑫ ⑬ ① 1/4 Screw ⑧ Menu/OK Key ⑤ 1.3 Inch OLED ⑪ HDMI Out ② Group Knob ⑥ Left Key ⑨ Power Button ⑫ DC Port ③...
-
Page 6: Typical Application
Typical Application Diagram SDI/HDMI In SDI/HDMI Out CineEye 2S Pro CineEye 2S Pro Camera Transmitter Receiver Monitor Diagram SDI/HDMI Out CineEye 2S Pro Receiver Monitor SDI/HDMI In CineEye 2S Pro Camera Transmitter Mobile Devices Mobile Devices Mobile Devices... - Page 7 Typical Application Diagram SDI/HDMI Out CineEye 2S Pro Receiver Monitor SDI/HDMI Out CineEye 2S Pro Receiver Monitor SDI/HDMI In CineEye 2S Pro Transmitter Camera SDI/HDMI Out CineEye 2S Pro Receiver Monitor SDI/HDMI Out CineEye 2S Pro Receiver Monitor...
- Page 8 Operation Instructions Install Instructions 1. Install the antennas as demonstrated. 2. Use the hot/cold shoe mount adapter to install the CineEye 2S Pro onto the camera or camera cage. 3. Use a NP-F970/F750/F550 battery or DC source to power the CineEye 2S Pro.
- Page 9 Operation Instructions OLED Display ① ④ ① Input video info ② Input audio info ② ⑤ ③ Current group setting ④ Battery level/DC input ③ ⑤ Connection status ⑥ Current 5G WiFi channel ⑥ Connection Status： Transmitter: The connection status indicates how many devices are connected, if no devices are connected the unit will display “0”.
- Page 10 Operation Instructions Channel Setting 1. Only the transmitter has the “Channel Setting” menu. 2. The default setting is “Auto” which means the transmitter will select a channel with the least interference automatically after power on. 3. If users want to select a channel manually, please follow below steps: Click “Menu” button to enter “Channel Setting”...
- Page 11 Note:CineEye 2S Pro has two WiFi signals, one is 2.4G and another is 5G, the 2.4G WiFi name is “CineEye2-Pro-GroupX”, please don’t connect to this WiFi.
-
Page 12: Specification
Specification Transmitter Receiver Video Input SDI/HDMI Video Output SDI/HDMI SDI Input 1080p 23.98/24/25/29.97/30/50/59.94/60fps 1080p 23.98/24/25/29.97/30/50/59.94/60fps HDMI Input 720p 50/59.94/60fps 480p 59.94/60fps Audio 44.1KHz/48KHz 16bit/24bit PCM Antenna Connector 4 RP-SMA Male Latency <0.06 seconds(Camera latency not included) OLED 1.3 inch OLED Transmission Power 17~20dBm Transmission Range... -
Page 13: Warranty
2. The warranty period for transmitter and receiver units is one year. Within the warranty period, if under the usage of instruction manual for any product problem Accsoon will offer repair service for free. - Page 14 1.Please check if your mobile devices support 5G WiFi. 一.质保期限 Mobile devices can’t connect to CineEye 2S Pro 视频卡顿 1.CineEye 2S Pro has two WiFi networks available, one is 2.4G and another is 5G, the 2.4G WiFi name is “CineEye2-Pro-GroupX”, please don’t connect to this WiFi.
- Page 15 QC Inspector： More details about the product please visit www.accsoon.com This document is subject to change without notice. Accsoon is a trademark of Accsoon Technology Co., Ltd. Copyright 2020 Accsoon. All rights reserved...
- Page 16 Website:www.accsoon.com E-mail:support@accsoon.com Chengdu Accsoon Technology Co., Ltd...
