Knowledge Base
Adjusting the Image with the

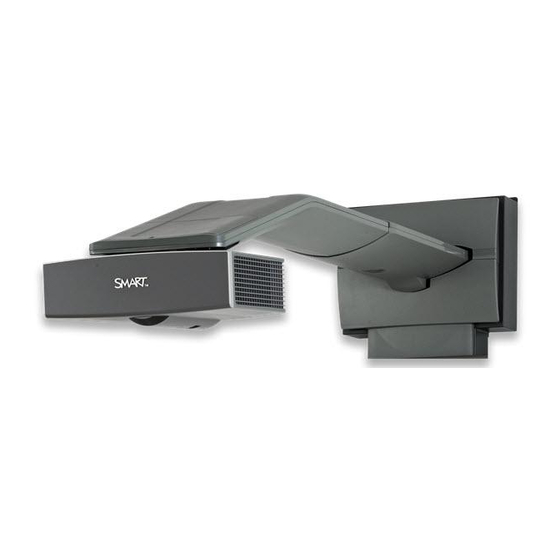

UF55/UF55w Projector
Applies to
SMART Board™ 560, 580, 660, 680 and 685 interactive whiteboard systems with a
UF55/UF55w projector
Overview
After you install the UF55/UF55w projector with a SMART Board 500 or 600 series
interactive whiteboard, you must adjust the image alignment and focus. This
document expands on the SMART Board 600i3 Interactive Whiteboard System
Installation Guide that came with your UF55/UF55w projector.
Details
Adjusting Keystone Alignment

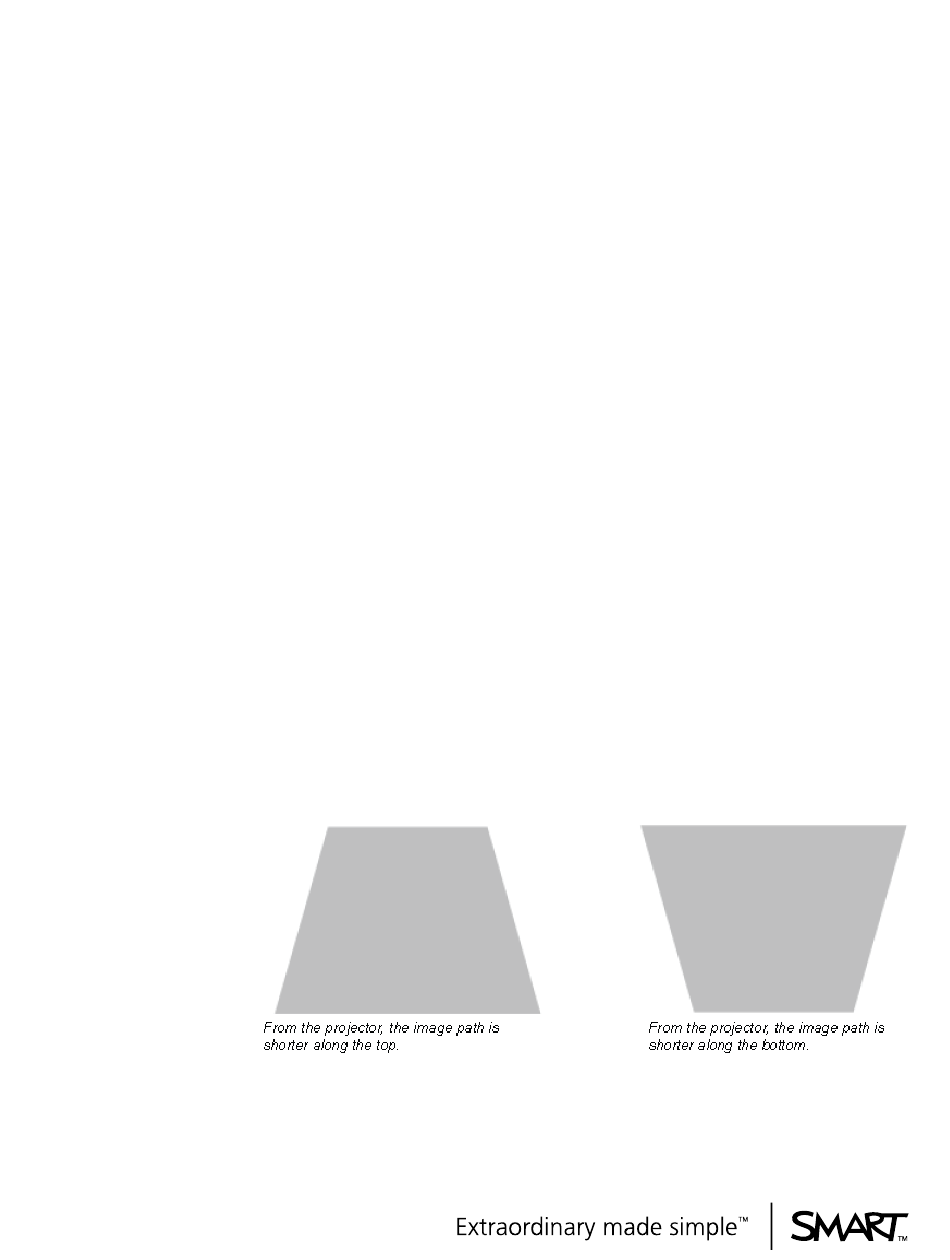

When you use standard projectors, keystone errors occur when the projected image
isn't perpendicular to the screen.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Summary of Contents for SMART Board UF55
- Page 1 SMART Board™ 560, 580, 660, 680 and 685 interactive whiteboard systems with a UF55/UF55w projector Overview After you install the UF55/UF55w projector with a SMART Board 500 or 600 series interactive whiteboard, you must adjust the image alignment and focus. This document expands on the SMART Board 600i3 Interactive Whiteboard System Installation Guide that came with your UF55/UF55w projector.
- Page 2 Vertical keystone errors can occur when you mount the UF55/UF55w projector and the SMART Board 600 series interactive whiteboard on an uneven surface or a wall that has obstructions.
- Page 3 Focusing the Image To focus the image, use the Focus Ring, which is located on the bottom of the UF55/UF55w projector (when the projector is facing downward). To focus and adjust Rotate the Focus Ring lever right or left until the image is clear.
- Page 4 KN O W L E D G E B AS E – A D J U S TI NG T H E I M A G E WI TH T H E U F 55/ UF 55 W P R O J E C T O R To align the image 1.
- Page 5 KN O W L E D G E B AS E – A D J U S TI NG T H E I M A G E WI TH T H E U F 55/ UF 55 W P R O J E C T O R 2.
- Page 6 4. Align the interactive whiteboard with the projected image. NOTE Move your SMART Board interactive whiteboard left or right on its mounting bracket to center the interactive whiteboard to the projected image. 5. Adjust the physical size of the projected image to fit the interactive whiteboard.
- Page 7 Support +1.403.228.5940 or Toll Free 1.866.518.6791 (U.S./Canada) ©2009 SMART Technologies ULC. All rights reserved. The SMART Board, the SMART logo and smarttech are trademarks or registered trademarks of SMART Technologies ULC in the U.S. and/or other countries. All other third-party product and company names may be trademarks of their respective owners. Patent No. US5448263; US6141000; US6320597; US6326954;...
