Summary of Contents for Connect SmartHome CSH-DEDBLTBIO

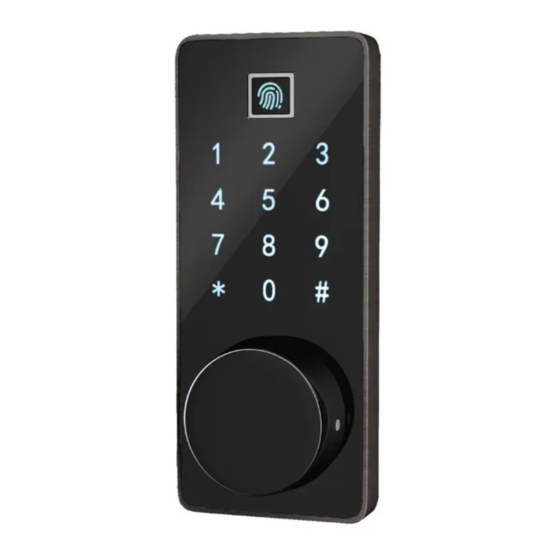

- Page 1 Manual Connect Smart Deadbolt with Fingerprint (CSH-DEDBLTBIO) WHAT’S INCLUDED • 1 x Deadbolt Lock Set • 1 x Screwdriver • 1 x Manual • 1 x Bag of Screws • 2 x Keys • 1 x Lock Catch • 1 x Hole Cutout Guide •...
-
Page 2: Keypad Functions
SETTING UP THE LOCK KEYPAD FUNCTIONS MENU • Touch the fingerprint reader • Long press # then type in super admin to activate the screen passcode (default = 666888) then # to enter • Press * to EXIT / BACK Menu System will exit automatically if no •... - Page 3 ADD NORMAL USER • Touch the fingerprint reader to activate the screen • Long press # • Verify the administrator (type in super admin passcode - 666888 default) then # • Press > 1 > 1 > 1 • You will be prompted to add a passcode, keycard or fingerprint •...
-
Page 4: Delete All Users
DELETE ALL USERS • Touch the fingerprint reader to activate the screen • Long press # • Verify the administrator (type in super admin passcode - 666888 default) then # • Press 1 > Press 3 > Press 2 then operate according to voice instructions SINGLE OR DOUBLE USER MODE •... - Page 5 GET THE APP QR Code for Downloading Apps HERE REGISTER OR LOGIN TO APP REGISTER account LOGIN existing account...
- Page 6 RECOMMENDED APP SETTINGS Home Smart Home Smart...
- Page 7 PAIRING LOCK TO APP • Touch the fingerprint reader to activate the screen • Long press # • Verify the administrator (type in super admin passcode - 666888 default) then # • Select 2 for System Settings • Select 1 for Network Settings •...
- Page 8 Settings USING THE APP Battery Level Registered App users History Generate Temporary Alarms Passcode Triggered Tap to generate dynamic passcode passcode Passcode Unlock Removing Lock from App...
- Page 9 USING THE LOCK LOCKING • Touch the fingerprint reader to activate the screen • Press the # button to engage the lock/deadbolt PASSCODE UNLOCK • Touch the fingerprint reader to activate the screen • Enter the correct passcode and press # to confirm To prevent people spying when entering your passcode you can first enter any number, then enter the correct passcode, then enter any number and finally press the # to confirm.
-
Page 10: Emergency Power Supply
REGULAR KEY UNLOCK • Remove the knob below the keypad then insert Key into keyhole and rotate 90° to unlock Please keep the regular key outside in a safe place in case of product failure or improper operation. DOUBLE LOCK •... -
Page 11: Illegal Intrusion Alarm
ELECTRONIC ANTI-LOCK • Tap the REST/Anti-Lock button on the bottom right inside the lock body • There will be a voice prompt and a message notification on the paired App. • During the anti-lock state only an Admin user or Physical Key can be used. ILLEGAL INTRUSION ALARM •... -
Page 12: Factory Reset
CHANGE LOCK DIRECTION • Use the toggle switch on the bottom right inside the lock body to change the lock direction from Left to Right or Right to Left: FACTORY RESET • Press the REST button on the back panel for 3 seconds. Once you hear the voice prompt then the system has reset successfully •... - Page 13 HOLE CUTOUT GUIDE door frame 10.0 27.0 25.0 60.0 55.0...
-
Page 14: Technical Specification
TECHNICAL SPECIFICATION • Working Voltage: 6V • Working Current: ≤300mA • Static Current: ≤30uA • Smart Keycard Type: Mifare Card • Working Temperature ： - 20 〜 60 ℃ • User Capacity: Upto 200 users (combinations using passcode, card and fingerprint) •...
