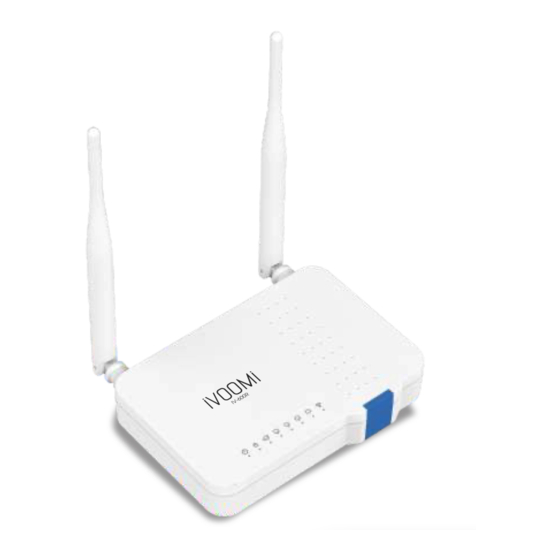

User Manual &
Quick Installation Guide
Speed 600 | Speed 300
Please read the user manual for correct & complete usage of the device
For technical support, replacement services, user guides, and other
information, please visit https://www.ivoomi.co/support, or
simply scan the QR code.
If you have any suggestions or needs on the product guides, you
are welcome to email customercare@ivoomi.co
NOTE :
Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless
data throughput and wireless coverage are not guaranteed and will vary as a result of network conditions, client
limitations and environmental factors, including building materials, obstacles, volume and density of traffic and client
locations
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Summary of Contents for iVOOMi Speed 600
- Page 1 User Manual & Quick Installation Guide Speed 600 | Speed 300 Please read the user manual for correct & complete usage of the device For technical support, replacement services, user guides, and other information, please visit https://www.ivoomi.co/support, or simply scan the QR code.
-
Page 2: Table Of Contents
Contents Subject Page No. 1. Get to Know Your Router 1.1 Overview 1.2 Packing List 1.3 System Requirement 1.4 Features 1.5 Appearance 1.5.1 LED Indicators 1.5.2 Button & Ports 1.5.3 Label on the Bottom 2 Quick Setup 4-10 2.1 Connecting to Your Router 2.1.1 Connecting to Your Router Through WiFi 2.1.2 Connecting to Your Router Using an Ethernet Cable 2.2 Set the Network Configurations... - Page 3 Subject Page No. 3.8 System 26-30 3.8.1 LAN Interface 26-27 3.8.2 Static DHCP 3.8.3 DHCP 3.8.4 Time Zone 3.8.5 Upgrade 3.8.6 Save/Reload 3.8.7 Password 3.9 Advanced 30-31 3.9.1 Statistics 3.9.2 Log 3.10 Logout 4. FAQ (Frequently Asked Questions) 5. Warranty 33-34 5.1 Warranty Terms &...
-
Page 4: Get To Know Your Router
Get to Know Your Router 1.1 Overview Th e Wi re l e s s R o u te r i s co m p a t i b l e w i t h IEEE802.11b/g/n standard, which supports data rate up to 300Mbps in 2.4GHz band, which is also compatible with IEEE 802.11g/b wireless devices. -
Page 5: Features
1.4 Features • Complies with 2.4GHz IEEE802.11n v2.0 and backward compatible with IEEE 802.11b/g standards • Supports NAT/NAPT IP sharing • WAN Protocols: PPPoE/Static IP/PPTP/DHCP • Supports advanced 2T2R MIMO technology to enhance the throughput and coverage range significantly • High speed data rate - up to 300Mbps •... -
Page 6: Button & Ports
1. Default IP address of the router. You can use the IP address to access the router web UI. 2. MAC address of the router. Each router has a unique MAC address. 3. The default WiFi name iVOOMi Speed 600... -
Page 7: Quick Setup
Quick Setup 2.1 Connecting to Your Router 2.1.1 Connecting to Your Router Through WiFi Before installing the router, make sure your PC is connected to the Internet through the broadband service successfully. If there is any problem, please contact your ISP. After that, please install the router according to the following steps. Don’t forget to pull out the power plug and keep your hands dry. -
Page 8: Connecting To Your Router Using An Ethernet Cable
2.1.2 Connecting to Your Router Using an Ethernet Cable • Connect the WAN port of the router to a LAN port of your modem or to an Ethernet jack. • Use the included power adapter to connect the router to a power source. •... - Page 9 • Step 3 : Click Local Area Connection • Step 4 : Then Click on Properties Button. • Step 3 : Double Click Internet Protocol Version4 (TCP/IPv4) • Step 4 : Select Obtain an IP Address automatically and Obtain DNS server address automatically. •...
-
Page 10: Setting Up An Internet Connection
Let's Get Started Firmware Version: v1.4_d201027 Hardware Version : Speed 600 According to the detection result, configure related settings. For details about the connection-type-specific configuration procedures, refer to Setting up an Internet Connection with PPPoE, Static IP Address, Dynamic IP Address. -
Page 11: Setting Up An Internet Connection With Pppoe
PPPoE Static IP Address Internet User Name abcd Password iVOOMi SPEED WiFi Name Wireless WiFi Password The WiFi password indicates the password for connecting to the WiFi network of the router. Ensure that your password meets the complexity requirement. 2.3.2 Setting up an Internet Connection with a Dynamic IP Address •... -
Page 12: Setting Up An Internet Connection With A Static Ip Address
Connection Type Dynamic IP Address PPPoE Static IP Address Internet iVOOMi SPEED 600 WiFi Name Wireless WiFi Password *********** The WiFi password indicates the password for connecting to the WiFi network of the router. Ensure that your password meets the complexity requirement. - Page 13 Enter the login page, entering the username and password. click “Login”, The default Username is “admin”. www.ivoomi.co Please input user name and password If you forget your password, you can reset to factory setting by reset button.. Username : Password: Login After the above steps you can log into the Router management interface successfully.
-
Page 14: Configuring The Router
Configuring the Router 3.1 Status Log in to the router web UI and access the Status page. On this page, you can view the Internet Connection Status, Online Devices, Real-Time Speed and System Information. Status Internet Connection Status Internet Setting Wireless Setup Firewall Internet... -
Page 15: System Info
3.1.2 System Info This function enables you to learn about the basic system information of the router. You can check this information to determine whether settings have taken effect. System Information Connection Type Dynamic IP Address WAN IP Address 192.168.1.48 Connection Duration 1h 8m 26s Subnet Mask... -
Page 16: Internet Settings
3.2.1 Wan Setup Click on the "WAN Setup" , you can see the following interface. Status Setup Operating Mode Router Mode Access Point Mode Range Extender Mode WISP Mode Internet Setting WAN Setup DDNS Wireless Setup In this mode, the router connects to an ISP in a wired manner and meanwhile provides WiFi signals, enabling clients to Firewall wirelessly access the internet. - Page 17 Select Dynamic IP. Status Setup Operating Mode Router Mode Access Point Mode Range Extender Mode WISP Mode Internet Setting WAN Setup DDNS Wireless Setup In this mode, the router connects to an ISP in a wired manner and meanwhile provides WiFi signals, enabling clients to Firewall wirelessly access the internet.
- Page 18 Status Setup Operating Mode Router Mode Access Point Mode Range Extender Mode WISP Mode Internet Setting WAN Setup DDNS Wireless Setup In this mode, the router connects to an ISP in a wired manner and meanwhile provides WiFi signals, enabling clients to Firewall wirelessly access the internet.
-
Page 19: Access Mode
Internet DDNS Wireless Setup In this mode, the router can extend any WiFi signals. Firewall Select Wi Network Security Select SSID BSSID Channel Encrypt Signal iVOOMi 1st 9c:d2:1e:08:5c:01 System HYSM 40:e3:d6:43:a9:03 WPA/WPA2 Airtel 00:e0:61:ju:7y:00 WPA/WPA2 Advanced Zerotech fe:00:00:00:u8:0o WPA2 Home... -
Page 20: Wisp Mode
WAN Setup DDNS Wireless Setup In this mode, the router extends the WiFi signals of ISPs Firewall Security Select Wi Network Select SSID BSSID Channel Encrypt Signal iVOOMi 1st 9c:d2:1e:08:5c:01 System HYSM 40:e3:d6:43:a9:03 WPA/WPA2 Airtel 00:e0:61:ju:7y:00 WPA/WPA2 Advanced Zerotech fe:00:00:00:u8:0o WPA2... -
Page 21: Wireless Setup
3.4 Wireless Setup There are eight submenus under the Wireless 2.4G menu: Basic, Security, Access, WDS, WPS, Schedule. Click any of them, and you will be able to configure the corresponding function. 3.4.1 Basic This page is used to configure the parameters for wireless LAN clients which may connect to your Access Point. Here you may change wireless encryption settings as well as wireless network parameters. -
Page 22: Access
Status Wireless Security Setup Internet Setting This page allow you setup wireless security. Using WEP or WPA encryption Keys will help prevent unauthorized access to your wireless network. Wireless Setup Basic Security Apply Select SSID : Root AP - iVOOMi_Speed600 Reset Access Encryption :... -
Page 23: Wps
Status Wireless Access Control This page allows you to setup the wireless security for WDS. When enabled, you must make sure each WDS device has adopted the Internet Setting same encryption algorithm and key. Wireless Setup Basic Security Enable WDS Access MAC Address : Data Rate... -
Page 24: Schedule
3.4.6 Schedule This page allows you setup the wireless schedule rule. Please do not forget to configure system time before enable this feature. Status Wireless Schedule This page allows you setup the wireless schedule rule. Do not forget to congure the system time before enabling this feature. Internet Setting Wireless Setup Basic... -
Page 25: Dmz
Enable Port Forwarding: Check this box will enable Port Forwarding function. IP Address: That external User accesses the router will redirect to this local IP. Port Range: The packet with this protocol and port will be redirected to the local IP. Comment: You can add some comment for this item. -
Page 26: Security
3.6 Security The router provides extensive firewall protection by restricting connection parameters to limit the risk of intrusion and defending against a wide array of common hacker attacks. There are four submenus under the Security menu: Port Filtering, IP Filtering, URL Filtering, MAC Filtering. Click any of them, and you will be able to configure the corresponding function. -
Page 27: Url Filtering
Status IP Filtering Entries in this table are used to restrict certain types of data packets from your local network passing to the Internet through the Internet Setting Gateway. Use of such lters can be helpful in securing or restricting your local network. Wireless Setup Firewall Enable Port Filtering... -
Page 28: Mac Filtering
3.6.4 MAC Filtering MAC Filtering allows you to deny access to specific users connecting to the network. Each networking device has a unique address called a MAC address (a 12 digit hex number). Status MAC Filtering Internet Setting Entries in this table are used to restrict certain types of data packets from your local network passing to the Internet through the Wireless Setup Gateway. -
Page 29: System
Status Entries in this table improve your online gaming experience by ensuring that your game trafc is prioritized over other network trafc, Internet Setting such as FTP or Web. Wireless Setup Firewall Enable QoS Mode Security Uplink Speed (Kbps) : Downlink Speed (Kbps) : Downlink Speed (Kbps) : QoS Rule Setting :... -
Page 30: Static Dhcp
IP Address: Enter the IP address of your router (factory default: 192.168.0.1). Subnet Mask: An address code that determines the size of the network. Normally use 255.255.255.0 as the subnet mask. Default Gateway: Enter the gateway IP address of your router. DHCP: Enable or Disable the DHCP server. -
Page 31: Dhcp
3.8.3 DHCP This table shows the assigned IP address, MAC address and time expired for each DHCP leased client. Status Active DHCP Client Table This table shows the assigned IP address, MAC address and time expired for each DHCP leased client. Internet Setting Wireless Setup IP Address... -
Page 32: Upgrade
3.8.5 Upgrade You can upgrade latest Firmware in this page. Status Upgrade Firmware Internet Setting This page allows you to upgrade the Access Point rmware to the latest version. Please note, do not power off the device during the upload as it may crash the system. Wireless Setup Firewall Firmware Version... -
Page 33: Password
3.8.7 Password To ensure the router’ s security, you will be asked for your password when you access the router’ s Web-based Utility. The default user name is “admin”. This page will allow you to modify the User name and passwords. Status Password Setup This page is used to setup an account to access the web server of the Access Point. -
Page 34: Log
3.9.2 Log The System Log is useful for viewing the activity and history of your router. The System Log is also used by Amped Wireless technicians to help troubleshoot your router when needed. It is recommended that you enable logs in the event that troubleshooting is required. -
Page 35: Faq (Frequently Asked Questions)
FAQ (Frequently Asked Questions) Q1. What can I do if the login window does not appear? • Reboot your router and try again. • If the computer is set to a static IP address, change its settings to obtain an IP address and DNS server address automatically. -
Page 36: Warranty
The cost of transportation of product to and from service centre has to be borne by the customer. • This warranty will be valid only if completely filled warranty card with stamp and sign of iVOOMi dealer & customer and original purchase invoice is presented together for service •... -
Page 37: Warranty Card
5.2 Warranty Card WARRANTY REGISTRATION CARD Product Wireless Router Serial Number Model Number Date Of Purchase SPEED 600 SPEED 00 Customer Name Address Contact Number Email Id Name Of Dealer Address I have read and understood the terms and conditions of warranty and agree to abide by the same. - Page 38 FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
- Page 39 • Adapter shall be installed near the equipment and shall be easily accessible Copyright © 2020 iVOOMi Innovation Private Limited. All rights reserved. iVOOMI is a registered trademark legally held by iVOOMi Innovation Private Limited. Other brand and product names mentioned herein are trademarks or registered trademarks...
- Page 40 Imported, Marketed & Supported by : iVOOMi Innovation Pvt. Ltd. Registered Office : 276A, Block-QU, Chitrakoot Apartment, Pitampura, Delhi - 110034 (India) Customer Care No.: +91-9335828282 | Email: customercare@ivoomi.co www.ivoomi.co instagram.com/ivoomi.co linkedin.com/company/ivoomiindia youtube.com/channel/ivoomiindia facebook.com/ivoomi All rights reserved. iVOOMi is registered trademark of iVOOMi Innovation Pvt. Ltd.
