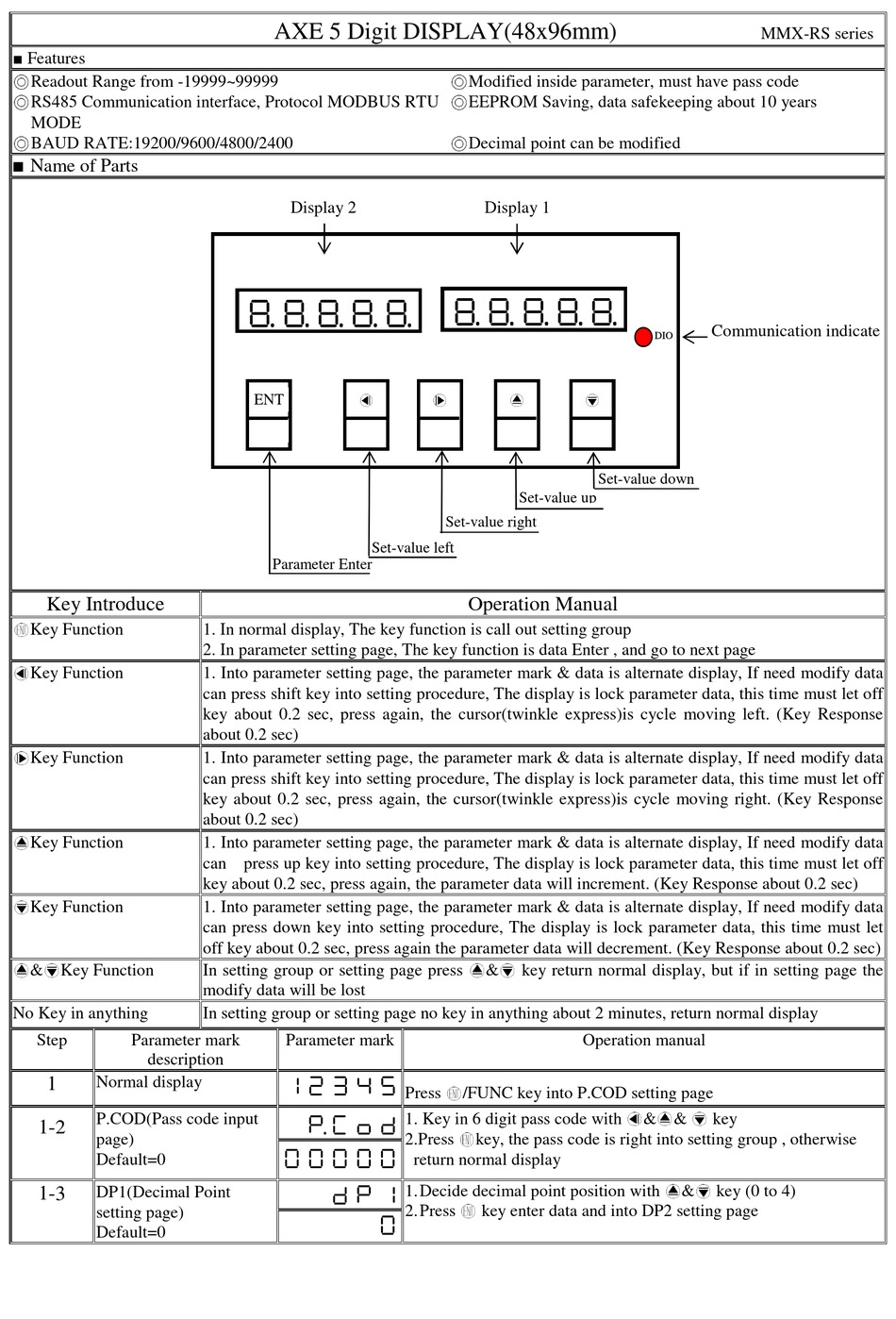

AXE MMX-RS Series Manual

■ Features

◎ Readout Range from -19999~99999
◎ RS485 Communication interface, Protocol MODBUS RTU
MODE
◎ BAUD RATE:19200/9600/4800/2400
■

Name of Parts

Key Introduce


Key Function

 Key Function
 Key Function
 Key Function
 Key Function
  & Key Function
No Key in anything
Step Parameter mark
description
1 Normal display
P.COD(Pass code input
1-2
page)
Default=0
1-3 DP1(Decimal Point
setting page)
Default=0
AXE 5 Digit DISPLAY(48x96mm)
Display 2

ENT 
E
Set-value left
Parameter Enter
1. In normal display, The key function is call out setting group
2. In parameter setting page, The key function is data Enter , and go to next page
1. Into parameter setting page, the parameter mark & data is alternate display, If need modify data
can press shift key into setting procedure, The display is lock parameter data, this time must let off
key about 0.2 sec, press again, the cursor(twinkle express)is cycle moving left. (Key Response
about 0.2 sec)
1. Into parameter setting page, the parameter mark & data is alternate display, If need modify data
can press shift key into setting procedure, The display is lock parameter data, this time must let off
key about 0.2 sec, press again, the cursor(twinkle express)is cycle moving right. (Key Response
about 0.2 sec)
1. Into parameter setting page, the parameter mark & data is alternate display, If need modify data
can press up key into setting procedure, The display is lock parameter data, this time must let off
key about 0.2 sec, press again, the parameter data will increment. (Key Response about 0.2 sec)
1. Into parameter setting page, the parameter mark & data is alternate display, If need modify data
can press down key into setting procedure, The display is lock parameter data, this time must let
off key about 0.2 sec, press again the parameter data will decrement. (Key Response about 0.2 sec)
In setting group or setting page press
modify data will be lost
In setting group or setting page no key in anything about 2 minutes, return normal display
Parameter mark




◎ Modified inside parameter, must have pass code
◎ EEPROM Saving, data safekeeping about 10 years
◎ Decimal point can be modified
Display 1

 
E
Set-value up
Set-value right
Operation Manual
  & key return normal display, but if in setting page the
Press  /FUNC key into P.COD setting page
1. Key in 6 digit pass code with
2.Press  key, the pass code is right into setting group , otherwise
return normal display
1. Decide decimal point position with
2. Press  key enter data and into DP2

Communication indicate
DIO

Set-value down
Operation manual
   & & key
 &  key (0 to 4)
setting page
MMX-RS series
