DICKSON
FH320/325 & FT300/325
Temperature/Humidity Recorder
Contents:
Product Applications and Instrument Anatomy
Product Specifications
Product Accessories
Troubleshooting
Warranty / Factory Service & Returns
FH325
Remote Probe Temperature
& Humidity
Rev. 10/07
FT320
Remote Probe 2 Channel
Temperature
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Summary of Contents for Transcat Dickson FH320

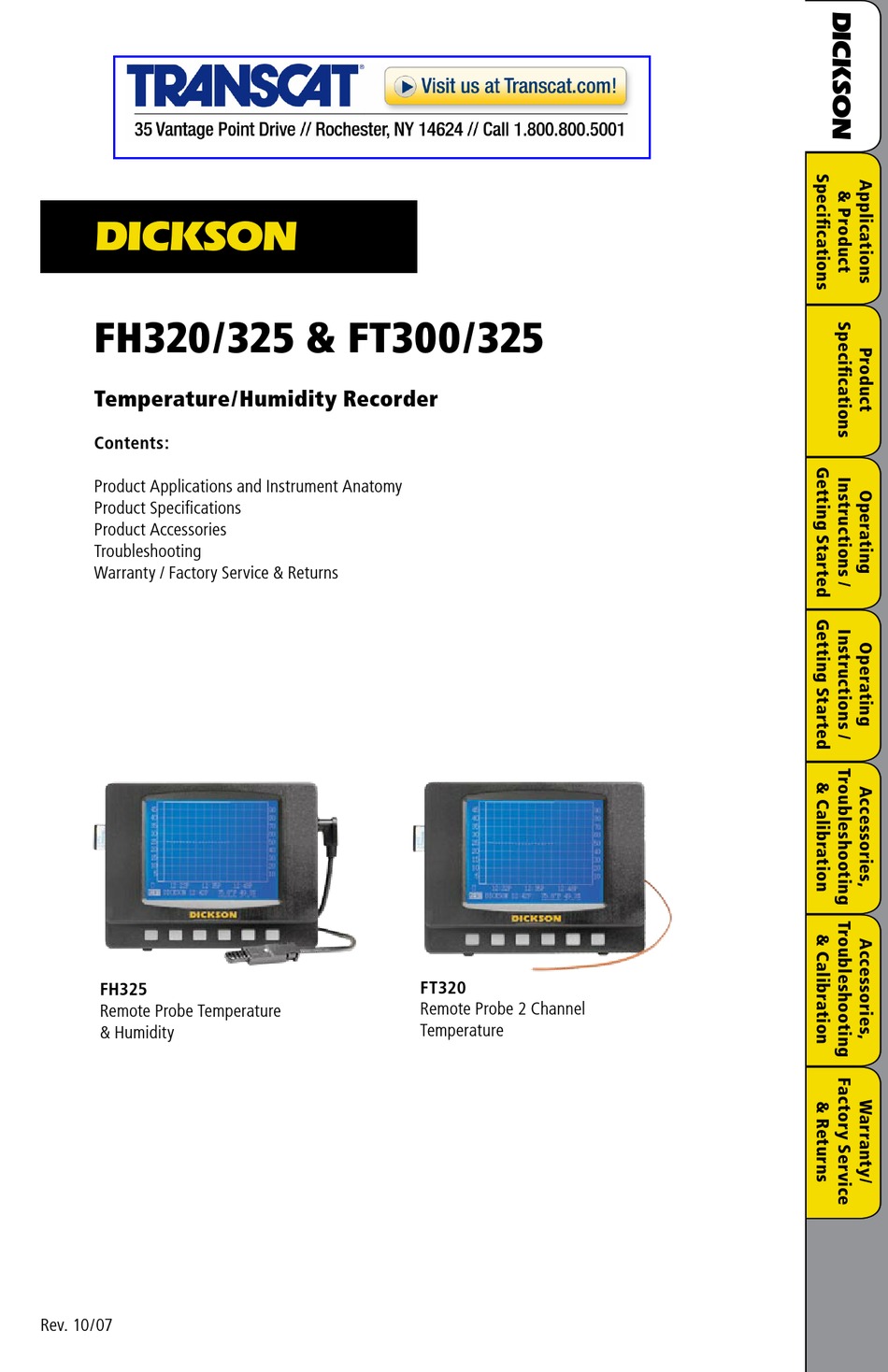

- Page 1 DICKSON FH320/325 & FT300/325 Temperature/Humidity Recorder Contents: Product Applications and Instrument Anatomy Product Specifications Product Accessories Troubleshooting Warranty / Factory Service & Returns FT320 FH325 Remote Probe 2 Channel Remote Probe Temperature Temperature & Humidity Rev. 10/07...
-
Page 2: Product Applications
Product Applications Dickson’s new Flat Panel LCD Recorder lets you view detailed temperature (FT300/325) or temperature and humidity (FH320/325) data on its large screen and allows for optional PC downloads. Its large 4.5” x 3.4” display shows you current temperature and humidity readings and displays a graph of data ranging from 1 hour to 32 days. - Page 3 FH320/325 User Selectable FH320: 0 to +50˚F/C, 0 to +100˚F, -10 to +40˚C FH325: 0 to +100˚F, 0 to Temperature Ranges +50˚F/C, -25 to +125˚F, -40 to +60˚F/C, -20 to +80˚F/C, 50 to +100˚F, -40 to +160˚F Temperature Range FH320: 0 to +122˚F (-17.8 to +50˚C) Remote Temperature FH325: -40 to +185˚F (-40 to +85˚C) 0 TO 95% RH Range...
-
Page 4: Quick Start
Your Graph-at-a-Glance Logger includes the following: • 1 AC Adapter • 1 9V battery • Standard Certificate of Calibration • Manual • (Flash Memory Card and USB Download Cable and Software are sold separately) Your Graph-at-a-Glance Logger has been preset for the most popular settings: •... -
Page 5: Data Export
b. Change Temperature Range: Press SET SCALES Press SET Y AXIS iii. Available temperature ranges for your model will be displayed iv. Follow the instructions on the screen to select the range When the temperature range is set, SAVE and press the BACK button to reach the setup menu. c. -
Page 6: Troubleshooting
Accessories (for current pricing go to www.dicksondata.com or call 1-800-323-2448) Software Order # A016 DicksonWare™ Software and Serial Download Cable A026 DicksonWare™ SECURE Software and Serial Download Cable Calibrations NIST Traceable Calibration 3-pt (new unit) N300 NIST Traceable Calibration 1-pt (new unit) N100 A2LA Accredited Calibration 3-pt. - Page 7 The Importance and Benefits of Regular Calibrations Once you begin to use your precision Dickson instrumentation, regular calibrations are necessary to ensure accurate readings. The following Calibration Services are available: N150 - NIST Traceable Calibration 1-Point: Includes documentation to one Dickson pre-selected point after re-calibration.
-
Page 8: Warranty
Warranty Dickson warrants that the products it sells will be free from defects in material and workmanship under normal use and service for a period of twelve months after delivery. In the event of a claim under this warranty, the product or part must be returned to the factory for repair or replacement (shipping pre-paid) with a Return Authorization Number (see Return Information above).
