Prestigio MultiBoard PMBST02 Installation Procedure

Prestigio MultiBoard stand PMBST02
Height Adjustable, Angle Adjustable.

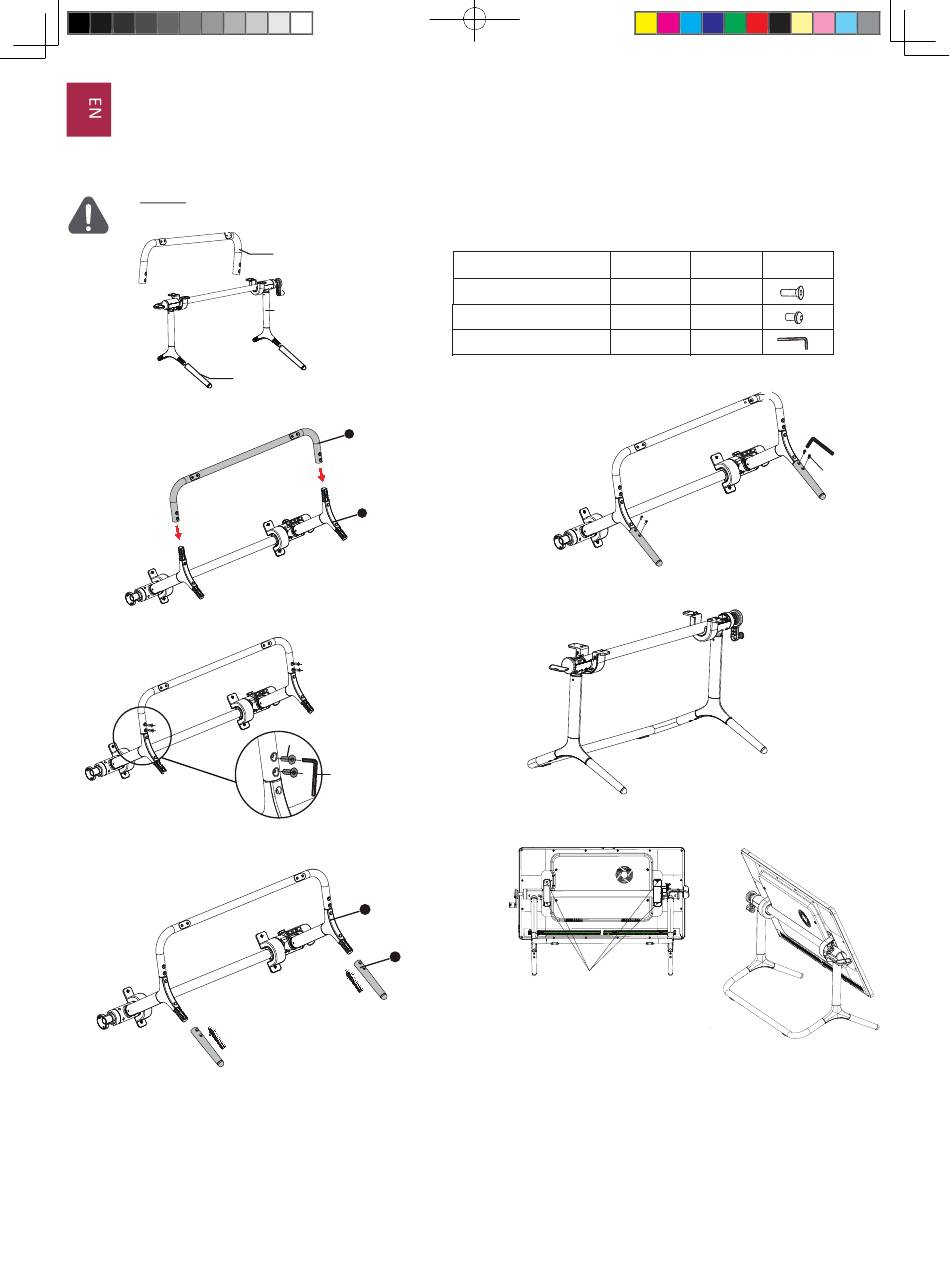

Installation Procedure of the Mobile Stand
Step 1: Before assembling the stand, check the specifications and quantities of the stand components.
Step 2: Connect the elevation and rotation assembly A to the rear bottom pipe C,
as shown in Figure 1.
Step 3: Tighten the four M6*18 screws with an Allen wrench, as shown in Figure 2.
Figure 2
Step 4: Connect the elevation and rotation assembly A to the rear foot pipe B, as
shown in Figure 3.
Stand information
Net weight of stand: 8,8 kg
Gross weight of stand: 12,1 kg
C- Rear bottom pipe 1 PC
A-
Elevation and rotation assembly 1 PC
B- Front foot pipe 2 PCS
C
A
Figure 1
.
M6*18
Allen wrench
A
B
Figure 3
can accommodate Prestigio Multiboard 43".
Fixation kit package
Fixation
Dimentions
Hexagon socket-head
M6*18
countersunk screw
Hexagon socket flat
M6*10
/round-head screw
Allen wrench N/A
Step 5: Tighten the four M6*18 screws with an Allen wrench, as shown in Figure 4.
Step 6: The assembled stand is shown in Figure 5.
Step 7: Tighten the four M6*18 screws with an Allen wrench, as shown in Figure 6.
Fix the device onto the stand and adjust the rotation angle and height of the stand
as required.
M6*10mm
Figure 6
Stand size : 1137 * 520 * (530--685) mm
Package size : 1175 * 335 * 535 mm
Quantity View
8PCS
4PCS
1PCS
Allen wrench
M6*18
Figure 4
Figure 5
After assembling
