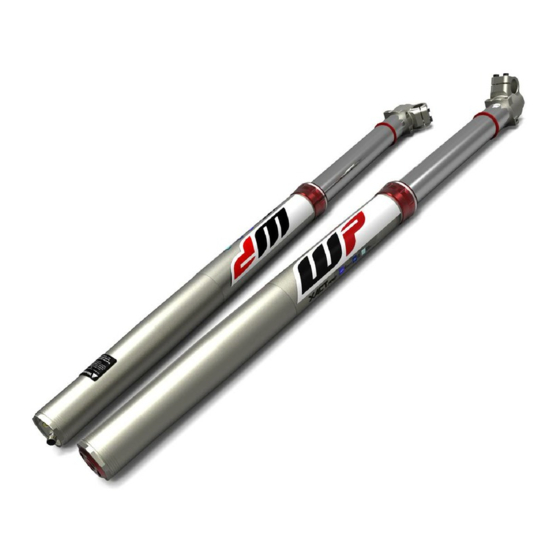

- Page 1 OWNER'S MANUAL XACT PRO 7448 Art. no. 53000180en http://www.wp-suspension.com...
- Page 3 DEAR WP CUSTOMER Congratulations on your decision to purchase a WP chassis component. You are now the owner of a state-of- DEAR WP CUSTOMER the-art sports chassis that you will continue to enjoy for a long time if you maintain it properly.
-
Page 4: Table Of Contents
SERVICE WORK ON THE CHASSIS ....11 Raising the motorcycle with a lift stand ........... 11 Removing standard fork legs ..11 Installing the WP PRO COMPONENTS fork legs ....11 Bleeding the fork legs ......12 Cleaning the dust boots of the fork legs ............. -
Page 5: Means Of Representation 1
All work marked with this symbol requires specialist knowledge and technical understand- ing. In the interest of your own safety, have these jobs performed by a WP Authorized Cen- ter! There your WP chassis will be treated with the optimum care and attention by specially trained experts using the necessary special tools. -
Page 6: Safety Advice
2 SAFETY ADVICE Use definition – intended use This chassis component is designed and built to withstand the normal stresses and strains of regular racing. Info Only use this chassis component in closed-off areas remote from public road traffic. Only use this chassis component in the vehicle for which the chassis component is approved and/or recommended. -
Page 7: Work Rules
Correct installation analogously to original components and in accordance with the instructions of the vehicle manufacturer is essential for ensuring maximum safety and functionality. It is therefore strongly recommended that you have the chassis component installed at a WP Authorized Cen- ter. -
Page 8: Important Notes
3 IMPORTANT NOTES Manufacturer and implied warranty The work prescribed in the service schedule must be carried out in a WP Authorized Center only, since other- wise no warranty claims will be recognized. Damage or secondary damage caused by tampering with and/or conversions on the chassis component are not covered by the warranty. -
Page 9: Serial Numbers 4
SERIAL NUMBERS 4 Fork article number The fork article number is stamped on the inside of the axle clamp. Info The fork article number consists of an eight figure number with a single letter in the sixth position. 401947-10... -
Page 10: Preparing For Use
5 PREPARING FOR USE Advice on preparing for first use Warning Danger of accident Modifications to the suspension setting may seriously alter the handling charac- teristic. Extreme modifications to the suspension setting may cause a serious deterioration in the handling characteristic and overload components. –... -
Page 11: Riding Instructions 6
RIDING INSTRUCTIONS 6 Checks and maintenance measures when preparing for use Info Before every use, check the condition of the chassis component and ensure that it is safe to operate. The chassis must be in perfect technical condition when it is being operated. –... -
Page 12: Service Schedule
7 SERVICE SCHEDULE Additional information Any further work that results from the required work or from the recommended work must be ordered sepa- rately and can be invoiced separately. Different service intervals may apply in your country, depending on the local operating conditions. Required work Every 40 operating hours ●... -
Page 13: Service Work On The Chassis 8
Removing standard fork legs – Remove the standard fork legs as per the instructions of the vehicle manufacturer. H03150-10 Installing the WP PRO COMPONENTS fork legs – Install the fork legs in accordance with the instructions of the vehicle manufacturer. Bleeder screws are positioned toward the front. -
Page 14: Bleeding The Fork Legs
8 SERVICE WORK ON THE CHASSIS – Apply the sticker for measuring sag at distance from the fork protector screw. Guideline 2 mm (0.08 in) Distance – Apply the remaining stickers included in the scope of supply. H03779-10 Bleeding the fork legs Preparatory work –... -
Page 15: Removing The Motorcycle From The Lift Stand
SERVICE WORK ON THE CHASSIS 8 Finishing work – Install the fork protector. – Remove the motorcycle from the lift stand. ( p. 13) Removing the motorcycle from the lift stand Note Danger of damage The parked vehicle can roll away or fall over. –... -
Page 16: Tuning The Chassis
9 TUNING THE CHASSIS Checking the basic chassis setting with the rider's weight – For optimal motorcycle riding characteristics and to avoid damage to forks, shock absorbers, link fork and frame, the basic settings of the suspension components must match the rider's weight. -
Page 17: Adjusting The Rebound Damping Of The Fork
TUNING THE CHASSIS 9 Guideline Compression damping 125/150/250 SX EU, 18 clicks 450 SX‑F EU TC 125/250 EU, FC 450 EU 250/350 SX‑F EU 14 clicks FC 250/350 EU All US versions 15 clicks Info Turn clockwise to increase damping; turn counter- clockwise to reduce damping during compression. - Page 18 9 TUNING THE CHASSIS Info Check or adjust the air pressure under the same conditions at the earliest 5 minutes after switching off the engine. The air suspension is located in the left fork leg. The rebound and compression damping is located in the right fork leg.
- Page 19 TUNING THE CHASSIS 9 Guideline Air pressure, positive chamber 125/150 SX EU 8.6 bar (125 psi) TC 125 EU 250 SX EU 10.0 bar (145 psi) TC 250 EU 250 SX‑F EU 10.6 bar (154 psi) FC 250 EU 350 SX‑F EU 10.8 bar (157 psi) FC 350 EU 450 SX‑F EU...
-
Page 20: Setting The Fork Air Pressure Of The Negative Chamber
9 TUNING THE CHASSIS Setting the fork air pressure of the negative chamber Warning Danger of accident Modifications to the suspension setting may seriously alter the handling charac- teristic. Extreme modifications to the suspension setting may cause a serious deterioration in the handling characteristic and overload components. - Page 21 TUNING THE CHASSIS 9 Guideline Air pressure, negative chamber 125/150 SX EU 9.6 bar (139 psi) TC 125 EU 250 SX EU 11.0 bar (160 psi) TC 250 EU 250 SX‑F EU 10.6 bar (154 psi) FC 250 EU 350 SX‑F EU 10.8 bar (157 psi) FC 350 EU 450 SX‑F EU,...
-
Page 22: Measuring The Visible Inner Tube Length Of The Fork
9 TUNING THE CHASSIS Measuring the visible inner tube length of the fork Info The visible inner tube length is dependent on the relationship between the fork air pressure of the posi- tive and negative chambers. The fork will only function correctly if the visible inner tube length is correct. If the length is too short, the suspension travel is reduced. -
Page 23: Technical Data
TECHNICAL DATA 10 10.1 Fork Fork article number 34.18.2T.07 Fork XACT PRO 7448 Compression damping 125/150/250 SX EU, 450 SX‑F EU 18 clicks TC 125/250 EU, FC 450 EU 250/350 SX‑F EU 14 clicks FC 250/350 EU All US versions... - Page 24 10 TECHNICAL DATA 125/150/250 SX EU, 450 SX‑F EU, 125/250 SX US, 250/350/450 SX‑F US TC 125/250 EU, FC 450 EU, TC 125/250 US, FC 250/350/450 US + 60 + 2.03 Oil capacity external mechanism ml (8.11 fl. oz.) Fork oil (SAE 4) (48601166S1) −...
-
Page 25: Substances 11
SUBSTANCES 11 Fork oil (SAE 4) (48601166S1) Standard/classification – SAE ( p. 25) (SAE 4) Guideline – Use only oils that comply with the specified standards (see specifications on the container) and that exhibit the corresponding properties. -
Page 26: Auxiliary Substances
12 AUXILIARY SUBSTANCES Special grease (00062010053) Recommended supplier ® Klüber Lubrication – KLÜBERFOOD NH1 34‑401... -
Page 27: Standards 13
STANDARDS 13 The SAE viscosity classes were defined by the Society of Automotive Engineers and are used for classifying oils according to their viscosity. The viscosity describes only one property of oil and says nothing about quality. -
Page 28: List Of Abbreviations
14 LIST OF ABBREVIATIONS Art. no. Article number circa compare e.g. for example etc. et cetera i.a. inter alia number poss. possibly... -
Page 29: Index
... . . 11 WP PRO COMPONENTS version, installing . . 11 Fuel, oils, etc......6 Implied warranty . - Page 30 *53000180en* 53000180en 07/2019 WP Suspension GmbH 5230 Mattighofen | Austria http://www.wp-suspension.com...
