Summary of Contents for UCEC MultiOne Mini
- Page 1 All-round Your Vision...
-
Page 2: Capture Card

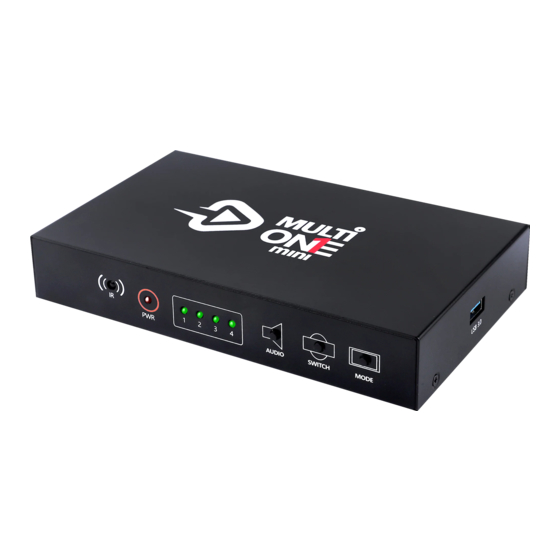

MULTI-VIEWER CAPTURE CARD Quick Start Guide Thanks for purchasing UCEC Mul One Mini 4 channel video mul -viewer capture. The following guides you how to set up. Hope this device will bring you nice digital experience. Mul One Mini has 4 HDMI input port, and built-in mul -viewer& switch func on. - Page 3 UCEC Features: 1. HDMI IN: Connect video source with HDMI cable 2. HDMI OUT: Connect to TV with HDMI cable 3. DC: 5V2A power supply 4. USB3.0: Connect to computer with USB3.0 cable 5. MODE: Switch between one channel view mode and mul -view mode:...
-
Page 4: Remote Controller
Connect HDMI OUT to TV Use bu ons or remote controller to operate. For UCEC Mul One Mini, you can connect to PC with an USB3.0 cable, so can capture or stream video, Following is the manual for Mul One Mini. - Page 5 2, Run OBS Studio, Click “+” icon under “Sources” window, and select “Video Capture Device”, then select “UCEC Mul One Mini” in the drop box next to “Device”: UCEC MultiOne Mini 3, At Set Audio Output Mode to “Output desktop audio (WaveOut), Audio...
- Page 6 UCEC 4, Set the video latency for make the audio and video synchronized: 1) Right click “Video Capture Device” then click “Filters”: 2) Click to add “Video Delay (Async)” : 3) Set it to 470ms (You can adjust it smaller or bigger un l you found the audio and video synchronized): Pag.5...
- Page 7 UCEC 5, Then you can recording or streaming video: For other applica ons may also need se ngfor synchronous problem: On VLC: Tools—Effects and Filters----Synchroniza on then adjust the delay value of Audio track synchroniza on, ll audio video synchronous:...
- Page 8 UCEC Work with other applica ons (e.g. VLC, Media encoder, Protplayer…): Just run the applica on then choose capture device to “UCEC Mul One Mini”. Work on MAC: Work with OBS Studio: Download and install OBS studio, then do the same as above on windows.
- Page 9 UCEC 2, Choose “Video camera” ---“/dev/video0” then click “play” Using as screen sharing for online meeting: 1, First install a applica on and set it as above ( OBS, VLC, etc) on the computer which for mee ng (with online mee ng App installed, e.g.: Zoom,...
- Page 10 UCEC Show example for mee ng App “Zoom”: Use VLC (or other applica on as men oned above) open the UCEC Mul One Mini and get the video of the contents laptop ( see the manual above) At mee ng interface, click “Share Screen: Select “VLC Media Player”...
- Page 11 Interface USB 3.0 Video Audio Input HDMI X 4 Video Audio Output HDMI Package Contents Device UCEC Mul One Mini 8K HDMI cable USB3.0 to USB 3.0 cable Others USB3.0 to Type C cable 5V2A Power supply Remote controller Manual Standards Windows 7,8,10, OS X 10.9 or later, Linux.
- Page 12 All-round Your Vision CustomerSupport:ucectech@gmail.com...
