- Page 1 GLORIA-X500A 500W Xenon Light Source System Operation Manual Version 1.0 2015-4) Zolix Instruments Co., Ltd.
-
Page 2: Table Of Contents
Thanks for using Zolix products ！ Please read this introduction carefully before using. And kindly please contact Zolix office in Beijing or local office if you have any questions and suggestions. Directory 1 Descriptions ............................... 1 2 Main technical specifications of light source ..................... 2 3 ... -
Page 3: Descriptions

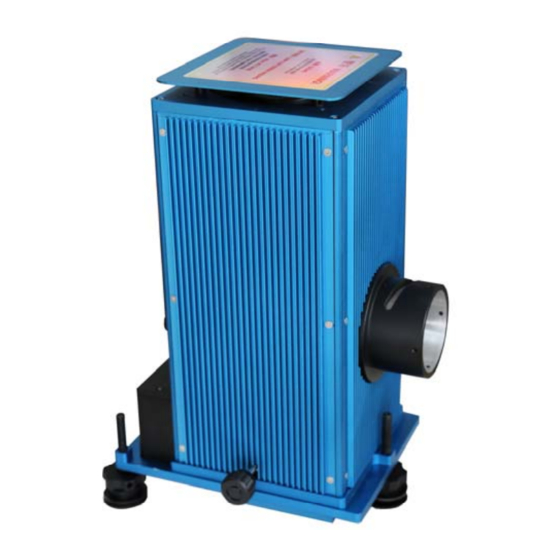

This Xenon light source is the ideal light source for the IR detection, UV spectrophotometer, fluorescence spectrophotometer and so on. And also used for solar simulation. 500W Xenon lamp power supply 500W Xenon lamp light source housing Zolix Instruments Co., Ltd. http://www.zolix.com.cn E-mail:info@zolix.com.cn... -
Page 4: Main Technical Specifications Of Light Source
<1.54° Divergence half angle 200-2500nm（250-1800nm） Spectrum range Lamp adjustment Reflector adjustment 2000 hours (import); Xenon lamp life time 500 hours (made in china) Optical axis height 158-193mm Type of cooling Volume 218*257*354mm Weight 5.8Kg Zolix Instruments Co., Ltd. http://www.zolix.com.cn E-mail:info@zolix.com.cn... -
Page 5: Xenon Lamp Light Source Housing
In the xenon lamp housing, the output light energy is enhanced by spheric reflect mirror behind the xenon lamp.Collimating lens collects the light energy from the lamp and reflector. Anode Lens Parallel light Spheric reflect mirror Cathode Zolix Instruments Co., Ltd. http://www.zolix.com.cn E-mail:info@zolix.com.cn... -
Page 6: Xenon Lamp Bulb Installation Method
3.2 Xenon lamp bulb installation method Caution: You must make sure the power supply is turned off when you mounting the xenon lamp! Remove side plate Side plate Light cup fixed frame After removing the light cup fixed frame Zolix Instruments Co., Ltd. http://www.zolix.com.cn E-mail:info@zolix.com.cn... - Page 7 6 . Put the cathode of lamp down and inside the setting location, then rotate bulb and make subline on the bulb shell towards the direction of any one of the handwheel, maintain the constant direction and fasten the positive power supply with positive fixed nut. Adjust the height of lamp, Zolix Instruments Co., Ltd. http://www.zolix.com.cn E-mail:info@zolix.com.cn...
-
Page 8: Light Source Housing Operation Guide And Safety Precautions
2mm. After adjustment, restore the collimating lens barrel and side plate in place. Zolix Instruments Co., Ltd. http://www.zolix.com.cn E-mail:info@zolix.com.cn... -
Page 9: Adjustment After Xenon Lamp Was Ignited
5) By adjusting the knob 3 as shown above, make the reflected light spot moving left and right; By adjusting the knob 4 as shown above, make the reflected light spot moving up and down; By Zolix Instruments Co., Ltd. http://www.zolix.com.cn E-mail:info@zolix.com.cn... -
Page 10: Safety Precautions
6) The lamp in operation is very hot. Therefore, never touch the lamp envelops when it is in operation or be turned off within 20 minutes. 7) In addition, please not cover the lamp housing with anything, because the Xenon lamp will produce much heat when working. Zolix Instruments Co., Ltd. http://www.zolix.com.cn E-mail:info@zolix.com.cn... -
Page 11: Xenon Lamp Power Supply
Setting / actual Setting and Current internal Set/切换 设置与指示灯 current switching indicator light control setting Voltage indication Voltageindication Current indication Current Current Starting Current Current external Front end output internal/external switch: internal/external control input interface selection Zolix Instruments Co., Ltd. http://www.zolix.com.cn E-mail:info@zolix.com.cn... - Page 12 Power：The lamp is connected in parallel with the starting switch light. When the lamp continues Zolix Instruments Co., Ltd. http://www.zolix.com.cn E-mail:info@zolix.com.cn...
- Page 13 Min I plate of the table shows the values for the required minimum, thus, complete the working current range setting. Bulb type Maximum current (A) Minimum current（A） 350W Xenon lamp 500W Xenon lamp Zolix Instruments Co., Ltd. http://www.zolix.com.cn E-mail:info@zolix.com.cn...
-
Page 14: Operation Guide
2. Press the setting / actual current switch to make the Set light on. Press the power inside / outside control button to the indicator light Local, indicating that the current is adjusted by the panel current adjustment knob. Zolix Instruments Co., Ltd. http://www.zolix.com.cn E-mail:info@zolix.com.cn... -
Page 15: Unpacking Procedures
With the proper tool according to the direction shown on the packing box so as not to cause inside equipment to be damaged. (3) After unpacks Please check equipment have appearance damage or corrosion, etc.. Zolix Instruments Co., Ltd. http://www.zolix.com.cn E-mail:info@zolix.com.cn... -
Page 16: Safety Instructions For Products
Never open the lamp housing when it is in operation! The stabilized current supply of the light source uses AC220V power supply Never open the power supply case when it is in operation! Do not use it beyond current range! Zolix Instruments Co., Ltd. http://www.zolix.com.cn E-mail:info@zolix.com.cn... -
Page 17: Product Quality Assurance
CE Declaration of Conformity Product quality assurance Zolix Instruments Corporation(Zolix) certifies that the product does not have any material and manufacturing defects during the warranty period. If there are any material or manufacturing defects during the warranty period, the company will be responsible for repairing or replacing the same type of product. -
Page 18: Product Warranty Clause
Electric displacement table series, optical bench series, optical platform from the warranty start date, provide a lifetime warranty. The company reserves the right to modify the above clauses Zolix Instruments Co., Ltd. http://www.zolix.com.cn E-mail:info@zolix.com.cn... -
Page 19: Packing List
Serial Number： GLORIA-X500A: LSP-X500A: Products List: Product Name Amount GLORIA-X500A（LSH500A） 500W Xenon Lamp Housing LSP-X500A 500W Xenon lamp Power Supply LBA-GX500 500W Xenon lamp installation attachment(made in China) (1 LSH500A-040 Guotong radiator cap 2 LSH500A-043 Anode Gland Nut 3 LSH500A-048 STRAP made in china)
