Chipkin FS-8705-12 Driver Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
salesgroup1@chipkin.com
Tel: +1 866 383 1657
© 2021 CHIPKIN AUTOMATION SYSTEMS
Driver Version: 1.01a
Document Revision: 4

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FS-8705-12 and is the answer not in the manual?

Questions and answers

Summary of Contents for Chipkin FS-8705-12

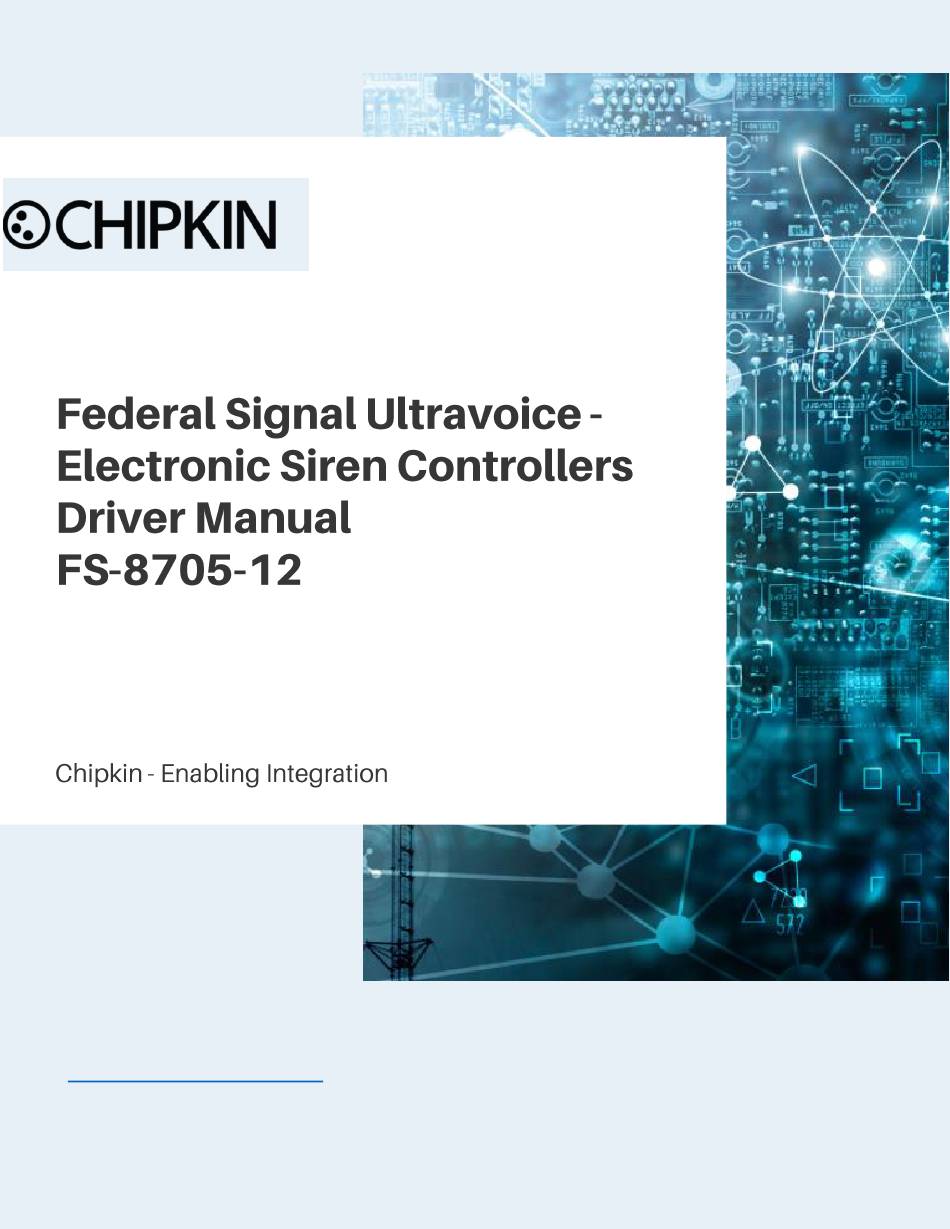

  • Page 1 Tel: +1 866 383 1657 Driver Version: 1.01a © 2021 CHIPKIN AUTOMATION SYSTEMS Document Revision: 4...

  • Page 2: Table Of Contents

    FS-8705-12 Federal Signal Ultravoice - Electronic Siren Controllers Driver Manual Page 2 of 30 TABLE OF CONTENTS TABLE OF CONTENTS ..................................2 FEDERAL SIGNAL ULTRAVOICE (FSU) - ELECTRONIC SIREN CONTROLLERS (ESC) SERIAL DRIVER DESCRIPTION ......3 DRIVER SCOPE OF SUPPLY ................................. 6 ........................

  • Page 3: Federal Signal Ultravoice (Fsu) - Electronic Siren Controllers (Esc) Serial Driver Description

    FS-8705-12 Federal Signal Ultravoice - Electronic Siren Controllers Driver Manual Page 3 of 30 1 Federal Signal Ultravoice (FSU) - Electronic Siren Controllers (ESC) Serial Driver Description The FSU - Electronic Siren Controllers (ESC) Serial Driver allows the FieldServer to transfer data to and from devices over RS232 using Federal Signal Ultravoice - Electronic Siren Controllers Serial Driver protocol.
  • Page 4 FS-8705-12 Federal Signal Ultravoice - Electronic Siren Controllers Driver Manual Page 4 of 30 Supported Functions CANCEL VOICE DISARM ZONEA-D REPORT MSG_A-P WAIL P_WAIL A_WAIL STEADY P_STEADY A_STEADY PHASE+- LOWPWR CODE01-CODE50 © 2021 CHIPKIN AUTOMATION SYSTEMS...
  • Page 5 FS-8705-12 Federal Signal Ultravoice - Electronic Siren Controllers Driver Manual Page 5 of 30 Status Items Monitored with 'Report' Function Siren Type Function State (Code running) Unit ID Amplifier status for each amp in the unit depending on siren type...

  • Page 6: Driver Scope Of Supply

    FS-8705-12 Federal Signal Ultravoice - Electronic Siren Controllers Driver Manual Page 6 of 30 2 Driver Scope of Supply Supplied by FieldServer Technologies for this driver FIELDSERVER TECHNOLOGIES DESCRIPTION PART # No specific cables are shipped with this driver. A generic RJ45 Ethernet cable must be shipped with this driver.

  • Page 7: Hardware Connections

    FS-8705-12 Federal Signal Ultravoice - Electronic Siren Controllers Driver Manual Page 7 of 30 3 Hardware Connections 1. The first step in establishing communication between the FieldServer and the Ultravoice panel is to change the communication setting in the panel, using federal signals programming software.
  • Page 8 FS-8705-12 Federal Signal Ultravoice - Electronic Siren Controllers Driver Manual Page 8 of 30 2. The second step is to connect the panel to the FieldServer using a CAT 5E patch cable with a RJ11 connector on the panel end and a RJ45 on the FieldServer end.

  • Page 9: Configuring The Fieldserver As A Fsc - Electronic Siren Controllers Serial Driver Client

    FS-8705-12 Federal Signal Ultravoice - Electronic Siren Controllers Driver Manual Page 9 of 30 4 Configuring the FieldServer as a FSC - Electronic Siren Controllers Serial Driver Client For a detailed discussion on FieldServer configuration, please refer to the FieldServer Configuration Manual. The information that follows describes how to expand upon the factory defaults provided in the configuration files included with the FieldServer (See “.csv”...

  • Page 10: Client Side Connection Descriptions

    FS-8705-12 Federal Signal Ultravoice - Electronic Siren Controllers Driver Manual Page 10 of 30 Client Side Connection Descriptions Create one connection for each CHC. Each connection can only be used to connect to a single CHC interface. SECTION TITLE Connections...

  • Page 11: Client Side Node Descriptors

    FS-8705-12 Federal Signal Ultravoice - Electronic Siren Controllers Driver Manual Page 11 of 30 Example Client Side Connections Connections Port, Protocol, Baud, Parity, Data_Bits, Stop_Bits FSU_ESC, 1200, Even, Client Side Node Descriptors Create one Node per connection only. SECTION TITLE...

  • Page 12: Client Side Map Descriptors

    FS-8705-12 Federal Signal Ultravoice - Electronic Siren Controllers Driver Manual Page 12 of 30 Client Side Map Descriptors FieldServer Related Map Descriptor Parameters COLUMN TITLE FUNCTION LEGAL VALUES Name of this Map Up to 32 alphanumeric Map_Descriptor_Name Descriptor characters Name of Data Array...

  • Page 13: Timing Parameters

    FS-8705-12 Federal Signal Ultravoice - Electronic Siren Controllers Driver Manual Page 13 of 30 GENERIC CANCEL VOICE Q_TEST DISARM ZONE REPORT RESET WAIL Used to define the command FSU_ESC_Function_Name to be sent to the controller P_WAIL A_WAIL STEADY P_STDY A_STDY...

  • Page 14: Map Descriptor Example 1 - Read Status

    FS-8705-12 Federal Signal Ultravoice - Electronic Siren Controllers Driver Manual Page 14 of 30 Map Descriptor Example 1 – Read Status. In this example the driver reads status data from the controller. It reads the data every 1 second because the...

  • Page 15: Map Descriptor Example 2 - Sending Commands To The Controller

    FS-8705-12 Federal Signal Ultravoice - Electronic Siren Controllers Driver Manual Page 15 of 30 Map Descriptor Example 2 – Sending Commands to the controller This example is typical for all commands except for ‘Phase’, ‘Msg’, ‘Code’ and ‘Zone’ Each time one of these commands is executed the driver sends the appropriate message to the controller. In this example, the command wait to be triggered by some other protocol updating the specified Data Array offset in the relevant Data Array.

  • Page 16: Map Descriptor Example 3 - Sending Commands To The Controller

    FS-8705-12 Federal Signal Ultravoice - Electronic Siren Controllers Driver Manual Page 16 of 30 Map Descriptor Example 3 – Sending Commands to the controller This example is typical for ‘Phase’, ‘Msg’, ‘Code’ and ‘Zone’ commands. These commands need a value from the Data Array to know exactly what command to send. For example is the command is configured to send a ‘CODE’...

  • Page 17: Interpreting The Status Report Values Found In The Data Arrays

    FS-8705-12 Federal Signal Ultravoice - Electronic Siren Controllers Driver Manual Page 17 of 30 Interpreting the Status Report values found in the Data Arrays The offsets specified in the table below are relative to the offset specified on the Map Descriptor.
  • Page 18 FS-8705-12 Federal Signal Ultravoice - Electronic Siren Controllers Driver Manual Page 18 of 30 Audio A 0=Active 1=Inactive Intrusion Cabinet 1 0=Closed 1=Door Open Not Used 0=Ok 1=Bad or Inactive AC Power 0=On 1=Off Charger 0=Fail 1=Pass Rotation 0=Occurred 1=Not Occurred...
  • Page 19 FS-8705-12 Federal Signal Ultravoice - Electronic Siren Controllers Driver Manual Page 19 of 30 UV-9 UV-10 UV-11 UV-12 UV-13 UV-14 UV-15 UV-16 Table 3: Function State DATA ARRAY VALUE ASCII EQUIVALENT MEANING Wail Pulsed Wail Alt. Wail Steady Pulsed Steady Alt.
  • Page 20 FS-8705-12 Federal Signal Ultravoice - Electronic Siren Controllers Driver Manual Page 20 of 30 Code 9 Code 10 Code 11 Code 12 Code 13 Code 14 Code 15 Code 16 Code 17 Code 18 Code 19 Code 20 Code 21...
  • Page 21 FS-8705-12 Federal Signal Ultravoice - Electronic Siren Controllers Driver Manual Page 21 of 30 Code 43 Code 44 Code 45 Code 46 Code 47 Code 48 Code 49 Code 50 Table 4: Status Codes DATA ARRAY VALUE MEANING 0001 0010...

  • Page 22: Configuring The Fieldserver As A (Ics1/2 Driver) Server

    5 Configuring the FieldServer as a (ICS1/2 Driver) Server This driver has a server side implemeted but it is used for FieldServer’s Quality Assurance program and is not docuemnted or supported. If you are interested in using Sever Side features then please contact Chipkin Automation Systems..

  • Page 23: Revision History

    FS-8705-12 Federal Signal Ultravoice - Electronic Siren Controllers Driver Manual Page 23 of 30 6 Revision History DOC. DRIVER DATE RESP FORMAT COMMENT VER. REV. 14 Aug 2008 1.00a Document Created Added connection diagrams and notes. (Thanks 25 Sept 2008 1.00a...

  • Page 24: Appendix A. Advanced Topics

    FS-8705-12 Federal Signal Ultravoice - Electronic Siren Controllers Driver Manual Page 24 of 30 Appendix A. Advanced Topics This section is blank. © 2021 CHIPKIN AUTOMATION SYSTEMS...

  • Page 25: Appendix B. Troubleshooting-Tips

    FS-8705-12 Federal Signal Ultravoice - Electronic Siren Controllers Driver Manual Page 25 of 30 Appendix B. Troubleshooting-Tips This section is blank. ERROR MESSAGE EXPLANATION AND CORRECTIVE ACTION We have shown place holders for the parts of the message which change.
  • Page 26 FS-8705-12 Federal Signal Ultravoice - Electronic Siren Controllers Driver Manual Page 26 of 30 You can preload values into Data Arrays using the configuration file. The FieldServer configuration manual has notes on how to do that. FSU_ESC:#4 Err. MSG command out of Valid Entries in the Data Array are 1-16 for Msgs A- range.
  • Page 27 FS-8705-12 Federal Signal Ultravoice - Electronic Siren Controllers Driver Manual Page 27 of 30 FSU_ESC:#7 Err. CODE command out of Valid Entries in the Data Array are 1-50 for range. %s[%d]Value=%d CODE01-CODE50 Where %s[%d] specifies a Data Array and The most likely cause for this message is either the offset.

  • Page 28: Appendix B.3. Exposing Driver Stats

    FS-8705-12 Federal Signal Ultravoice - Electronic Siren Controllers Driver Manual Page 28 of 30 FSU_ESC:#13 Err. Cmd=%s not recognized If this message is printed please take a log, send the log to Tech Support using email and follow up with a call.
  • Page 29 FS-8705-12 Federal Signal Ultravoice - Electronic Siren Controllers Driver Manual Page 29 of 30 The diver makes some of its operating statistics available in a Data Array where they can be read by an upstream device. The lines from the example below can be cut and pasted into a configuration file.
  • Page 30 FS-8705-12 Federal Signal Ultravoice - Electronic Siren Controllers Driver Manual Page 30 of 30 OFFSET DESCRIPTION Number of times a complete but invalid response to the Status Report query are received. Increments each time a Report msg is sent and no response is received within the timeout period.
