Ara-Unicontrol

Unicontrol (Viriato) 02/2019

Manual wifi for devices

Ara-Unicontrol.

Please consider the environment before printing this document.

PLEASE, YOU MUST READ THE ENTIRE INSTRUCTION MANUAL BEFORE

YOU THE INSTALLATION AND USE OF YOUR CONTROL DEVICE OF STOVE OF

BIOMASS.

Content

Pág. 2

Wifi module.

Pág. 3

Connection wifi module.

Pág. 4-6

Wifi network configuration.

Pág. 7-21 Access to the web www.unicontrolnet.com

Need help?

Do you have a question about the Uniwifi and is the answer not in the manual?

Questions and answers

Summary of Contents for Ara-Unicontrol Uniwifi

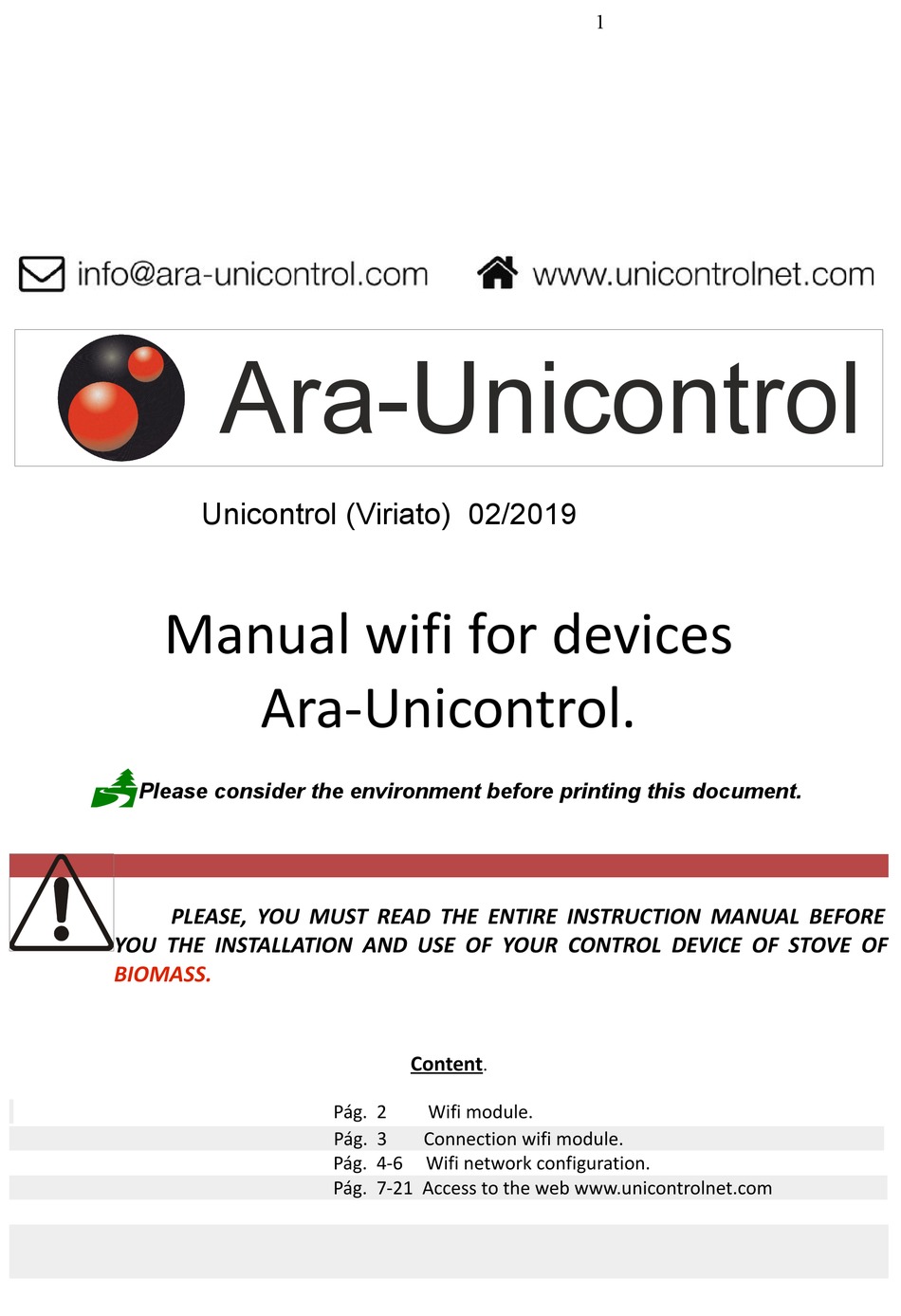

Page 1 Ara-Unicontrol Unicontrol (Viriato) 02/2019 Manual wifi for devices Ara-Unicontrol. Please consider the environment before printing this document. PLEASE, YOU MUST READ THE ENTIRE INSTRUCTION MANUAL BEFORE YOU THE INSTALLATION AND USE OF YOUR CONTROL DEVICE OF STOVE OF BIOMASS. Content Pág.
Page 2 Read the instructions in this instruction manual carefully! Before connecting the mains cable to the socket on the back of the stove, plug the Uniwifi module into the DB9 connector (see figure 1). Then connect the network cable and follow the instructions below.
Page 3 .53mB. Establish connection with the "UniWiFi" module in your Wi-Fi network. In a device that has Wi-Fi (smartphone, tablet, computer ...), select the following network: ARA_AP, password: 12345679.
Page 4 Insert in "User name": ARA and in "Password": ARA Select "STA Setting" and click on "Scan" with the cursor.
Page 5 Choose Wi-Fi network and validate with "OK". Enter the password (password), corresponding to the selected Wi-Fi network and validate with "SAVE".
Page 6 The configuration has been made. Press "Restart". The wifi module has been restarted with the new configuration.
Page 7 On a device that has Wi-Fi (smartphone, tablet, computer ...), open the browser and Write the following address in the search bar: www.unicontrolnet.com. In the top bar choose to log in.
Page 8 Enter the username and password you will find in sequence number 2 on page 1, and then press the ENTER key...
Page 9 Press the green rectangle enter.
Page 10 Select stove status, in the top bar.
Page 11 Press the blue colored rectangle, connect.
Page 12 The LCD tab corresponds to the display which has the same functions as the physical display on the stove. The button below the display is used to update the data on the screen for 30 seconds.
Page 13 Tab 2 contains two calendars. Before making any modification it is necessary to press the blue rectangle to receive the calendar from the stove, in this way we can see the previously programmed data. Once the new programming is done, we will record the same ones by pressing the red rectangle to send the new calendar to the stove.
Page 16 The M1 tab indicates the settings made in the menu 1. We press the blue rectangle to receive values from the stove.
Page 17 The tab M2, indicates the general information corresponding to menu 2.
Page 18 The tab load / update model, allows us to add a new model or update the existing model. The available files have information about whether they are new models or updates of old models.
