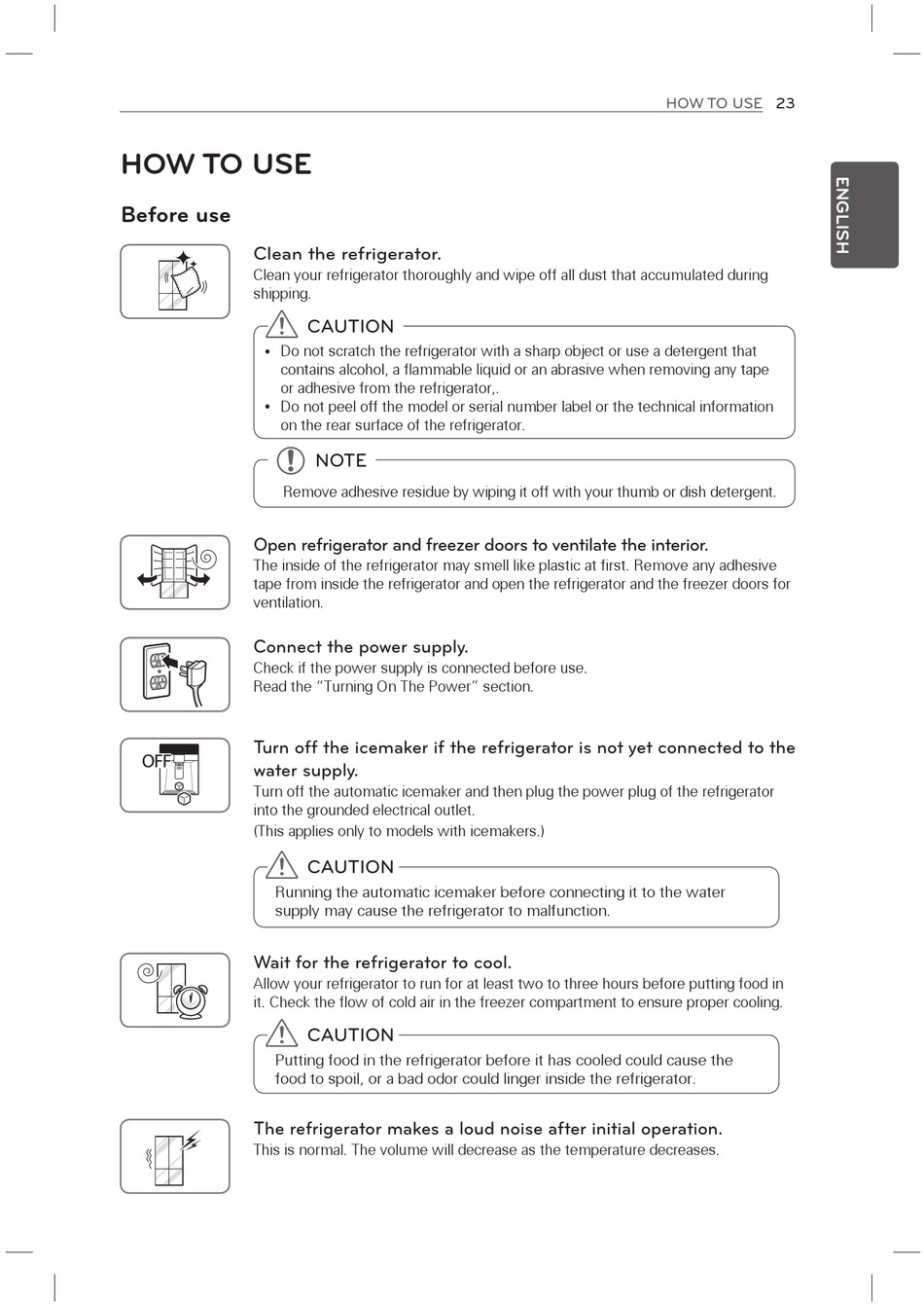

HOW TO USE

Before use

Clean the refrigerator.

Clean your refrigerator thoroughly and wipe off all dust that accumulated during

shipping.

Do not scratch the refrigerator with a sharp object or use a detergent that

contains alcohol, a flammable liquid or an abrasive when removing any tape

or adhesive from the refrigerator,.

Do not peel off the model or serial number label or the technical information

on the rear surface of the refrigerator.

Remove adhesive residue by wiping it off with your thumb or dish detergent.

Open refrigerator and freezer doors to ventilate the interior.

The inside of the refrigerator may smell like plastic at first. Remove any adhesive

tape from inside the refrigerator and open the refrigerator and the freezer doors for

ventilation.

Connect the power supply.

Check if the power supply is connected before use.

Read the "Turning On The Power" section.

Turn off the icemaker if the refrigerator is not yet connected to the

water supply.

Turn off the automatic icemaker and then plug the power plug of the refrigerator

into the grounded electrical outlet.

(This applies only to models with icemakers.)

Running the automatic icemaker before connecting it to the water

supply may cause the refrigerator to malfunction.

Wait for the refrigerator to cool.

Allow your refrigerator to run for at least two to three hours before putting food in

it. Check the flow of cold air in the freezer compartment to ensure proper cooling.

Putting food in the refrigerator before it has cooled could cause the

food to spoil, or a bad odor could linger inside the refrigerator.

The refrigerator makes a loud noise after initial operation.

This is normal. The volume will decrease as the temperature decreases.
