IMPORTANT SAFEGUARDS
When using electrical equipment, basic safety precautions should
always be followed including the following:
READ AND FOLLOW ALL
SAFETY INSTRUCTIONS
1. Before installing wall controls turn off the power at the circuit
breaker.
Couper l'alimentation avant l'installation
2. These wall controls must be installed in accordance with the
national and local building codes and electrical wiring codes
including wiring methods and wiring connections. If you are not
familiar with these codes and requirements, consult a qualified
electrician.
Ce produit doit être installé conformément à NEC ou votre code
électrique local. Si vous n'êtes pas familier avec ces codes et ces
exigences, veuillez contacter un électricien qualifié.
3. Indoor use only and suitable for damp locations.
Pour usage interieur seulement et convient aux emplacements
humides.
4. Any changes or modifications to these devices not explicitly
approved by manufacturer could void your authority to operate this
equipment.
SAVE THESE INSTRUCTIONS
FOR FUTURE REFERENCE
•
Voltage: 120-277V, 60Hz
•
Depth in Wall: 1.5"
•
For ease of installation, Cree recommends the use of a deep wall
box.
•
NOT FOR USE WITH METALLIC FACEPLATES.
UNIT DESCRIPTION
The Cree Wireless Wall Controls are used with other SmartCast
Wireless Wall Controls provide on, off, dimming control, and color adjustment.
LOAD TYPES
Cree Wall Controls support Cree SmartCast
1 of 3
Technology enabled devices to provide wireless control of LED luminaires. The Cree
®
Technology enabled devices only.
®
Cree Wireless Wall Controls With
SmartCast
Wireless Dimmer and Wireless Switch
Includes:CSC-CWD, CSC-CWS, CSC-CCD

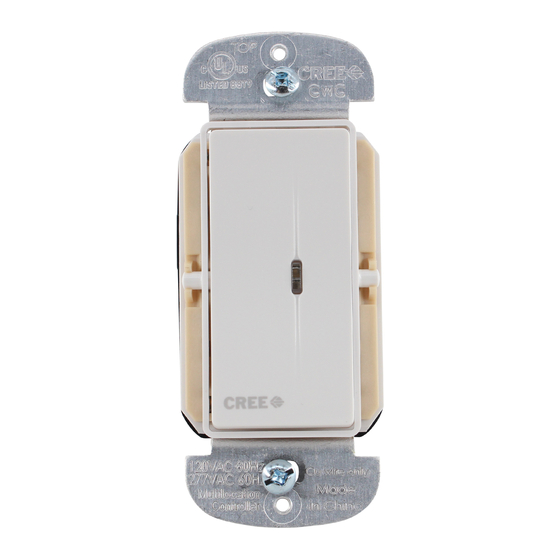

WIRELESS DIMMER
CSC-CWD, CSC-CCD
TOP
CSC-CWS
5NW1
120-277VAC
18AWG Cu wire
60Hz XX
Made
APPLIANCE
CONTROLS
in China
• Type 1 enclosure & IP20 Indoor use
•
Operating Temperature limit of the control: 0 to 35C
•
Software Class A Lighting Controls
•
Pollution degree 2 Suitable for normal household air circulation
•
Rated impulse voltage: 4000 V
Technology
®
Installation INSTRUCTIONS
INSTRUCTIONS D'INSTALLATION
TOP
5NW1
CSC-CCD
120-277VAC
18AWG Cu wire
60Hz XX
Made
APPLIANCE
in China
CONTROLS
WIRELESS SWITCH
CWS-CWC
LPN00838X0001A0_A
