Product Description
Congratulation with your purchase of MUX-24. MUX-24, an analog signal to DMX signal converter, converts
each analog control signal to one DMX control signal. Up to 24 channel analog signal can be accepted by
one MUX-24 and the input analog control voltage is usually 0-10 VDC. The dip switches on the panel are
used to set the DMX address.
Delivery Package
Check for transport damage.You should be in possession of the following items:
1 MUX-24
1 Manual
1 Adaptor
Should you discover transport damage after unpacking the equipment, inform the hauler immediately.
Never connect a damaged device. You may also contract your supplier.

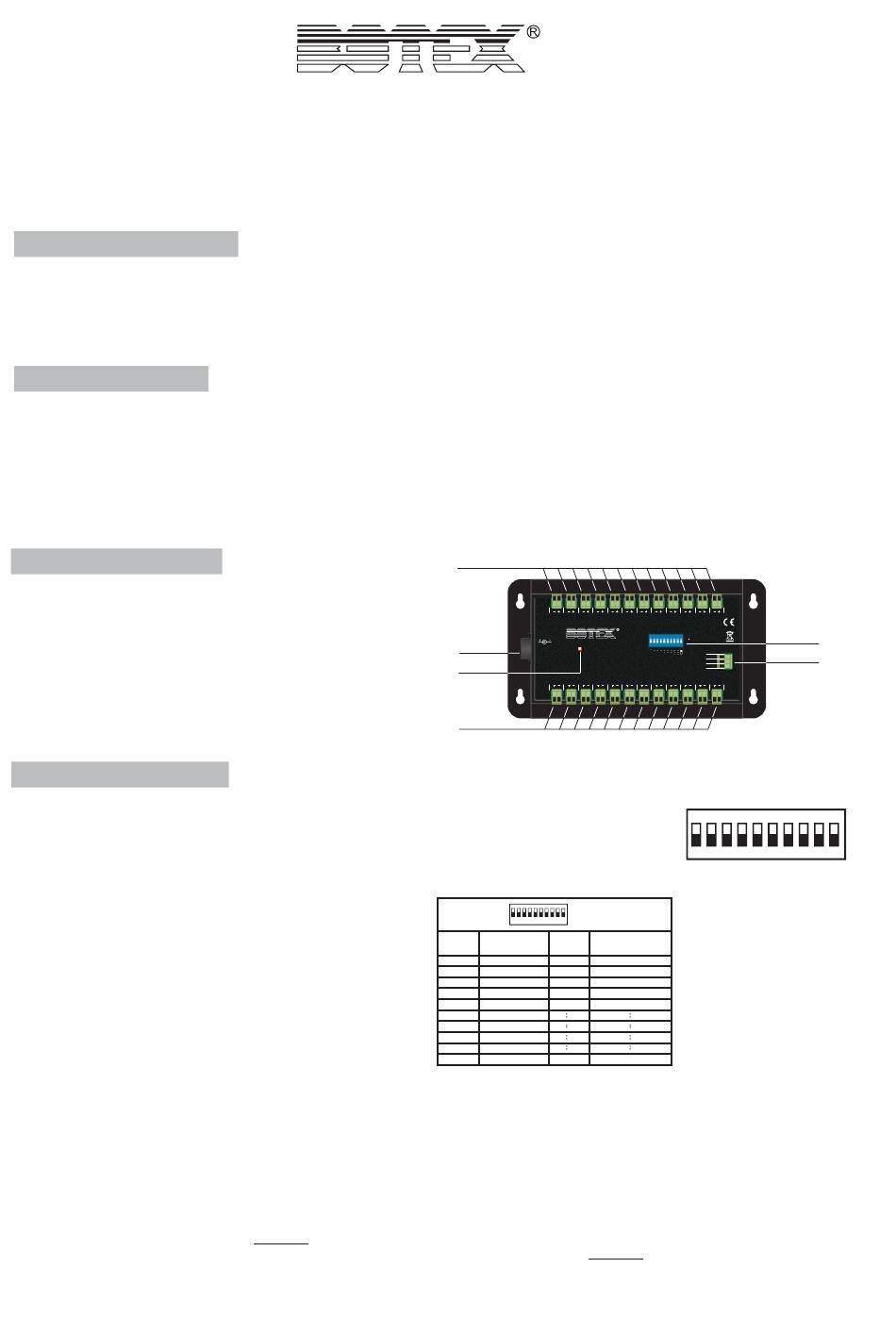

Front Panel Layout
1. Analog signal input: 2-pin green terminal.
2. DC input 12-24V, 300mA Min.
3. Power indicator.
4. Dip switches.
5. DMX output: 3-pin green terminal.
DMX Address Setting
In this mode, DMX address can be set. The dip-switch 10 is ineffective.
DMX is short for Digital Multiplex. This is a universal binary language used as a
form of communication between intelligent fixtures. Each Dip Switch represents a
binary value.
Dip Switch 1 address equals 1
Dip Switch 2 address equals 2
Dip Switch 3 address equals 4
Dip Switch 4 address equals 8
Dip Switch 5 address equals 16
Dip Switch 6 address equals 32
Dip Switch 7 address equals 64
Dip Switch 8 address equals 128
Dip Switch 9 address equals 256
A DMX value(address) is set by combining the different dipswitches that will add up to the value you wish to achieve,
for example:
Setting DMX address for 21.
Flip switches1,3,&5 to the
"ON" position
Dipswitches#
MUX-24
User Instructions
1=1
3=4
Value
5=16
=21
- Page 1 -
1
Analog
1
2
DC input:
Power
12-24V,
300mA Min
MUX-24
3
Analog
13
1
MUX-24
1 2 3 4 5 6 7 8 9 10
START
START
SWITCHES ON
SWITCHES ON
CH#
CH#
1
1
11
2
2
12
3
1,2
13
4
3
14
5
1,3
15
2,3
6
7
1,2,3
8
4
9
1,4
2,4
511
1,2,3,4,5,6,7,8,9
10
Setting DMX address for 201.
Flip switches1,4,7,& 8 to the
"ON" position
1=1
4=8
Dipswitches#
7=64
8=128
=201
Analog
12
DMX Start Address
ON
RS
On
1 2 3 4 5 6 7 8 9 10
DMX Output
Addr
GND
Data-
Analog 24 - DMX 512 Convertor
Data+
Analog 0-10VDC Input
Analog
24
1 2 3 4 5 6 7 8 9 10
1,2,4
3,4
1,3,4
2,3,4
1,2,3,4
Value
P/N: 24-004-0658-00
Rev: 1.1
