Emtron ED5 User Manual

Dash 5”
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Emtron Dash 5"
USER
MANUAL
Z
Rev 1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ED5 and is the answer not in the manual?

Questions and answers

Summary of Contents for Emtron ED5

  • Page 1 Emtron Dash 5” USER MANUAL Rev 1.0...

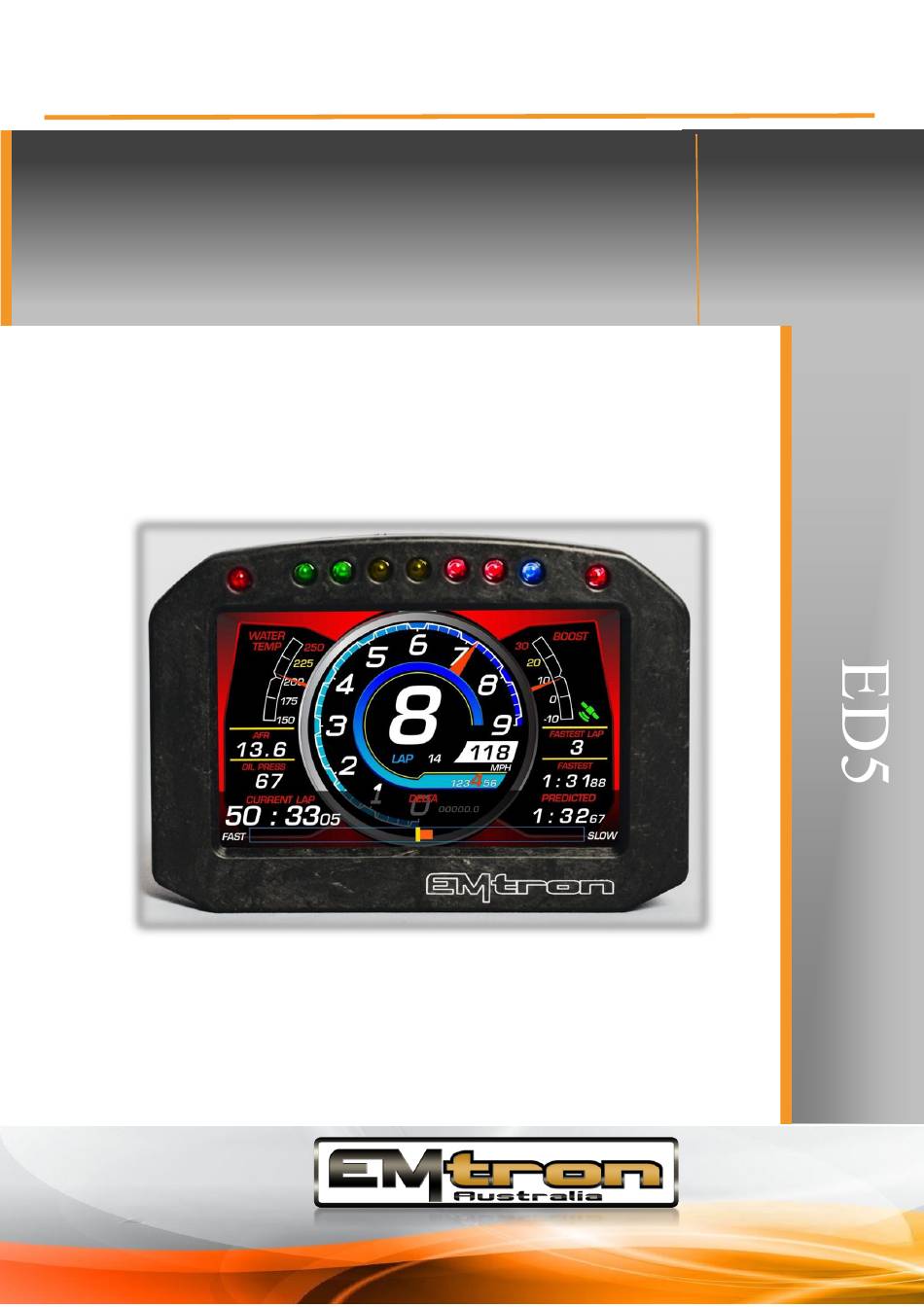

  • Page 2 EMTRON ED5 USER MANUAL WWW.EMTRON.WORLD Kit Contents When purchasing an ED5 the following items are included: • 1x ED5 5 inch Display • 1x 12Way DTM Connector and pin kit • 1x GPS Antenna • 1x USB Cable © EMTRON AUSTRALIA PTY LTD MARCH 2018...

  • Page 3: Table Of Contents

    4.1 Installing USB Drivers ....................... 8 5.0 ED5 Device Configuration ....................8 5.1 Emtune Settings ....................... 8 6.0 Ordering Information ......................10 Appendices ..........................11 Appendix 1 – ED5 Mechanical Drawing ................11 © EMTRON AUSTRALIA PTY LTD MARCH 2018...

  • Page 4: Description

    Two additional programmable LEDs are located on the top of the housing on either side of the integrated LED shift lights. © EMTRON AUSTRALIA PTY LTD MARCH 2018...

  • Page 5: Specification

    • Full graphics display with up to 6 different pages • Odometer function • Unit ships configured to receive the Emtron Display Tx Set 1 and Emtron Disaply Tx Set 2 • Completely user definable graphical layouts • Stand-alone PC program to create and customize layouts •...

  • Page 6: Ed5 Wiring

    14 V Supply Ground CAN 1 Hi CAN 1 Lo CAN 2 Hi CAN 2 Lo Page Up Reset/Ack Night Mode Beacon User 1 Input (spare1) User 2 Input (spare2) Table 3.1. ED5 Pinout © EMTRON AUSTRALIA PTY LTD MARCH 2018...

  • Page 7: Can Bus Wiring

    The ED5 device includes an on-board CAN termination resistor. It is switchable in the Emtron Display Editor software to allow the device to be wired at any position on the Bus provided the termination resistor is turned off. If the ED5 is the only device connected to the ECU in the CAN bus then it is advised to the switch the termination resistor on to provide termination at the display end of the CAN bus.
  • Page 8 EMTRON ED5 USER MANUAL WWW.EMTRON.WORLD Figure 3.2. CAN Bus Wiring Example. ECU and ELC2 at each end with 120 Ohm Termination Figure 3.3. CAN Bus Wiring Example. Stub Length less than 0.3m © EMTRON AUSTRALIA PTY LTD MARCH 2018...

  • Page 9: Ed5 Software Installation

    ECU is setup to send the correct CAN ID’s. NOTE: The ED5 will not switch into run mode with the USB cable connected to the PC. Make sure this is unplugged for normal operation.
  • Page 10 Set CAN 1 – Channel 1 as per figure 5.2 Figure 5.2 CAN 1 Channel 1 Setup menu Set CAN 1 – Channel 2 as per figure 5.3 Figure 5.3 CAN 1 Channel 2 Setup menu © EMTRON AUSTRALIA PTY LTD MARCH 2018...

  • Page 11: Ordering Information

    Switch power OFF and ON to the ECU to ensure the updated CAN bus settings have been initialised. The ED5 should now be receiving and displaying live runtimes included in the Emtron Display Tx Set 1 and Emtron Display Tx Set 2 6.0 Ordering Information...

  • Page 12: Appendices

    EMTRON ED5 USER MANUAL WWW.EMTRON.WORLD Appendices Appendix 1 – ED5 Mechanical Drawing © EMTRON AUSTRALIA PTY LTD MARCH 2018...
