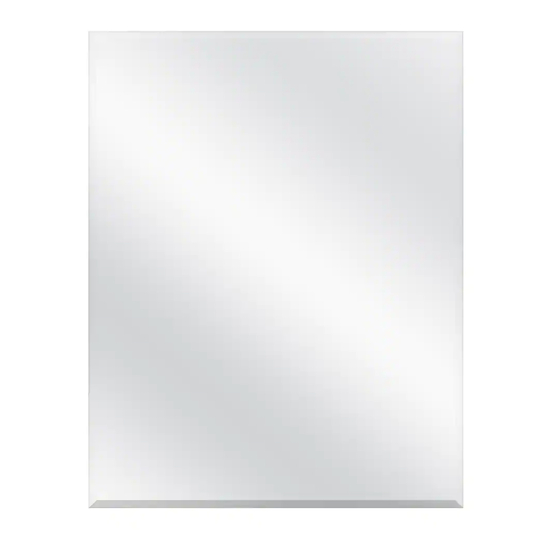

Glacier 83013 Use And Care Manual

TOOLS REQUIRED
Claw hammer Safety goggles
Measuring tape Wall hardware
Recess Mount Installation
1
PREPARING THE INSTALLATION LOCATION
NOTE: Before installing, make sure all parts are present.
Compare parts with the Hardware Included list. If any part is
missing or damaged, do not attempt to install the product.
□ Determine placement and mark an opening 1/2 in. taller
and wider than the cabinet (1).
□ Cut along the center of the wall studs (2).
1
3
SECURING THE CABINET TO THE WALL
□ Secure the cabinet to the wall through the sides with
wood screws (not included).
Phillips screwdriver
Level
2
Use and Care Guide
HARDWARE INCLUDED
AA - Left Shelf
Power drill
2
INSTALLING THE CABINET
□ Secure the sill plate and header with nails (1).
□ Insert the cabinet into the opening (2).
1
4
INSTALLING THE SHELVES
□ Insert the left shelf clips (AA) into the holes on the left
side of the cabinet. Repeat on the right side (BB).
□ Rest the shelves (CC) on the shelf clips (AA & BB).
Please contact 1-855-HD-GLACIER for further assistance.
Item #0000 000 000
Item #0000 000 000
Model #83013
Model #83015
BB - Right Shelf
Clip x 2 Clip x 2
CC - Shelf
x 2
2
BB
AA
CC
HOMEDEPOT.COM/GLACIERBAY
