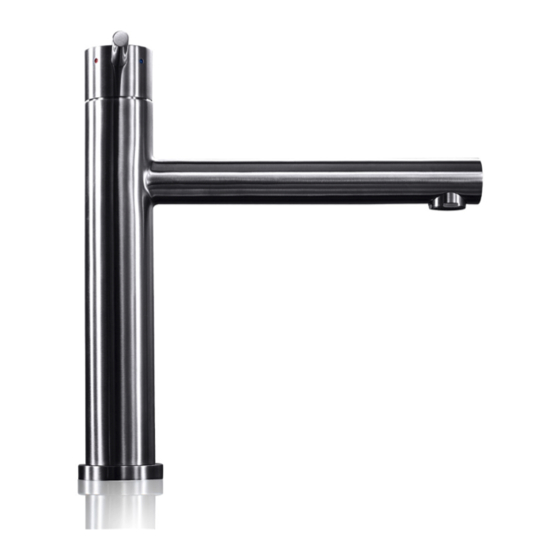

Fiore MARK FI2401 SS/BNC Installation Manual

Kitchen faucet

KITCHEN FAUCET INSTALLATION

THANK YOU FOR CHOOSING FIORE™

If you have any questions regarding your Fiore products please contact your local sales representative or visit www.fiorelife.com/support

for customer support and service information.

Thank you again,

FIORE™

PRIOR TO INSTALLATION

Prior to installation please be sure to review all installation instructions with a licensed or quialified plumbing technician who is familiar

with all local plumbing and building codes in your jurisdiction.

• Brushed Nickel or Polished Chrome Finish

• T304 Stainless Steel body and construction

• Single handle lever

• FiORE Temperature Recall. Faucet may be turned on and off at

any temperature setting

• 360 degree spout rotation

• Single-hole installation

• Solid stainless steel kitchen faucet

• Hot and Cold braided steel supply hoses

Meets or exceeds:

• ASME A112.18.1 / CSA B125.1

• ICC/ANSI A117.1

• AB 1953

IMPORTANT

Immediately upon receiving your Fiore product and removing it from its packaging we strongly suggest INSPECTING your

Fiore product for potential freight damage. Any claims for damage visible or hidden, must be made immediately in order for the

carrier to assume full responsibility and absorb any associated costs.

If damage or defect is discovered DO NOT INSTALL your Fiore product. Any claimed damage or defect to the finish of the product

after the product has been installed will be excluded from any manufacturer warranty.

Always shut off your the main water supply before removing the existing faucet and/or installing a new one. Open the hot and cold knobs

on the existing faucet in order to release built up pressure.

• cCUPC

• NSF 61

• CALGreen

FI2401 SS/ BNC

MARK

USA / Canada:

www.fiorelife.com

Table of Contents

Do you have a question about the MARK FI2401 SS/BNC and is the answer not in the manual?

Page 1 If damage or defect is discovered DO NOT INSTALL your Fiore product. Any claimed damage or defect to the finish of the product after the product has been installed will be excluded from any manufacturer warranty.
Page 2 FI2401 SS/ BNC MARK KITCHEN FAUCET INSTALLATION ROUGH-IN DIMENSIONS 231 [9 1/8"] 211 [8 1/4"] Ø54 [2 1/8"] M32X1.5 [ ∅ 1-1/4"] 9/16"-24UNEF 13 [2-1/2"] Project Title Drawing Description ntractor Print Date Checked by FiORE_WT1042ST-KF KITCHEN FAUCET Drawn by MM,JM USA / Canada: www.fiorelife.com Project Stage...
Page 3 KITCHEN FAUCET INSTALLATION INSTALLATION INSTRUCTIONS 6. C heck for leaks. 1. Make sure upper rubber gasket is positioned close to the top of the shank so it rests on top of the countertop. 2. A lign the shank of the new faucet with countertop faucet hole and place new faucet in position through the countertop hole. Make sure Faucet is centered in hole 3. Under the sink slide the lower rubber gasket onto the faucet shank - once the lower rubber gasket is in place slide the lock nut onto the shank. 4. T ighten the two screws on the lock nut to secure the faucet into place. 5. Connect and tighten the hot and cold supply hoses SUPPLY HOSE OUTLET HOSE (select models) MAIN WATER SUPPLY USA / Canada: www.fiorelife.com...
