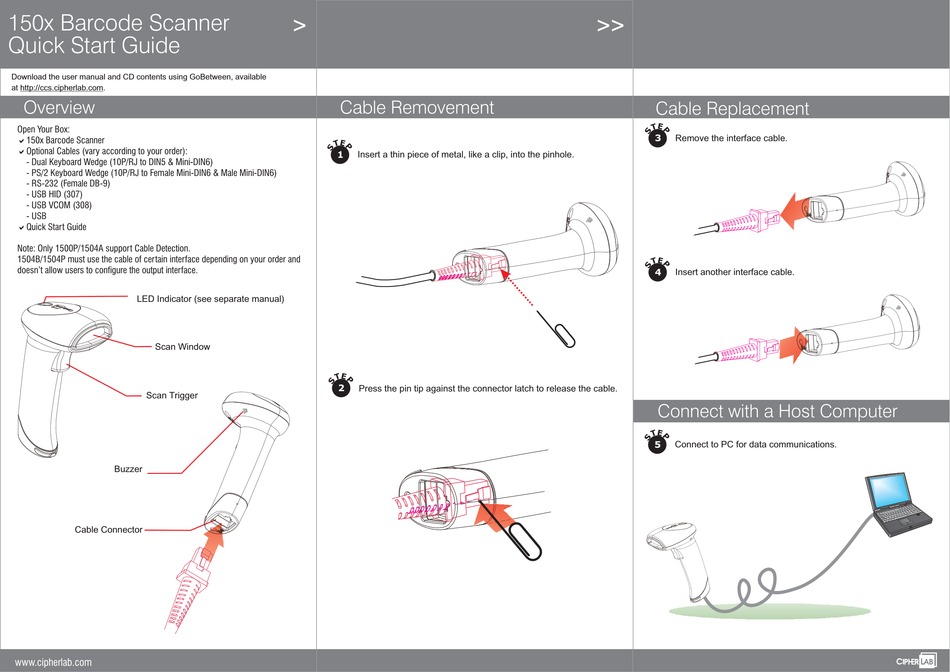

150x Barcode Scanner
Quick Start Guide
Download the user manual and CD contents using GoBetween, available
at http://ccs.cipherlab.com .
Overview
Open Your Box:
a
150x Barcode Scanner
a
Optional Cables (vary according to your order):
- Dual Keyboard Wedge (10P/RJ to DIN5 & Mini-DIN6)
- PS/2 Keyboard Wedge (10P/RJ to Female Mini-DIN6 & Male Mini-DIN6)
- RS-232 (Female DB-9)
- USB HID (307)
- USB VCOM (308)
- USB
a
Quick Start Guide
Note: Only 1500P/1504A support Cable Detection.
1504B/1504P must use the cable of certain interface depending on your order and
doesn't allow users to configure the output interface.
LED Indicator (see separate manual)
Scan Window
Scan Trigger
Buzzer
LED Indicators
Cable Connector
www.cipherlab.com
>
Cable Removement
1
Insert a thin piece of metal, like a clip, into the pinhole.
2
Press the pin tip against the connector latch to release the cable.
3
>>
Cable Replacement
3
Remove the interface cable.
4
Insert another interface cable.
Connect with a Host Computer
5
Connect to PC for data communications.
