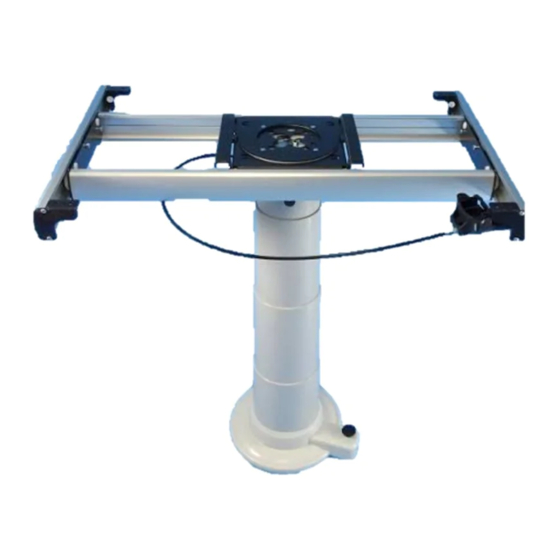

Instructions for adjusting the bed height position and installation of the Nuova Mapa manual telescopic table leg and slide
Thank you for purchasing the Nuova Mapa Telescopic Table Leg and Slide Machanism. In this document you will find a detailed
guide on how to correctly install your new table leg and slide. Please follow all instruction carefully.
This table leg has a maximum height from floor to underside of table top of 710mm.
The bed position is factory set at 330mm, this measurement is taken from the underside of the table top to the floor. It is possible
to adjust the bed position height by following the below steps.

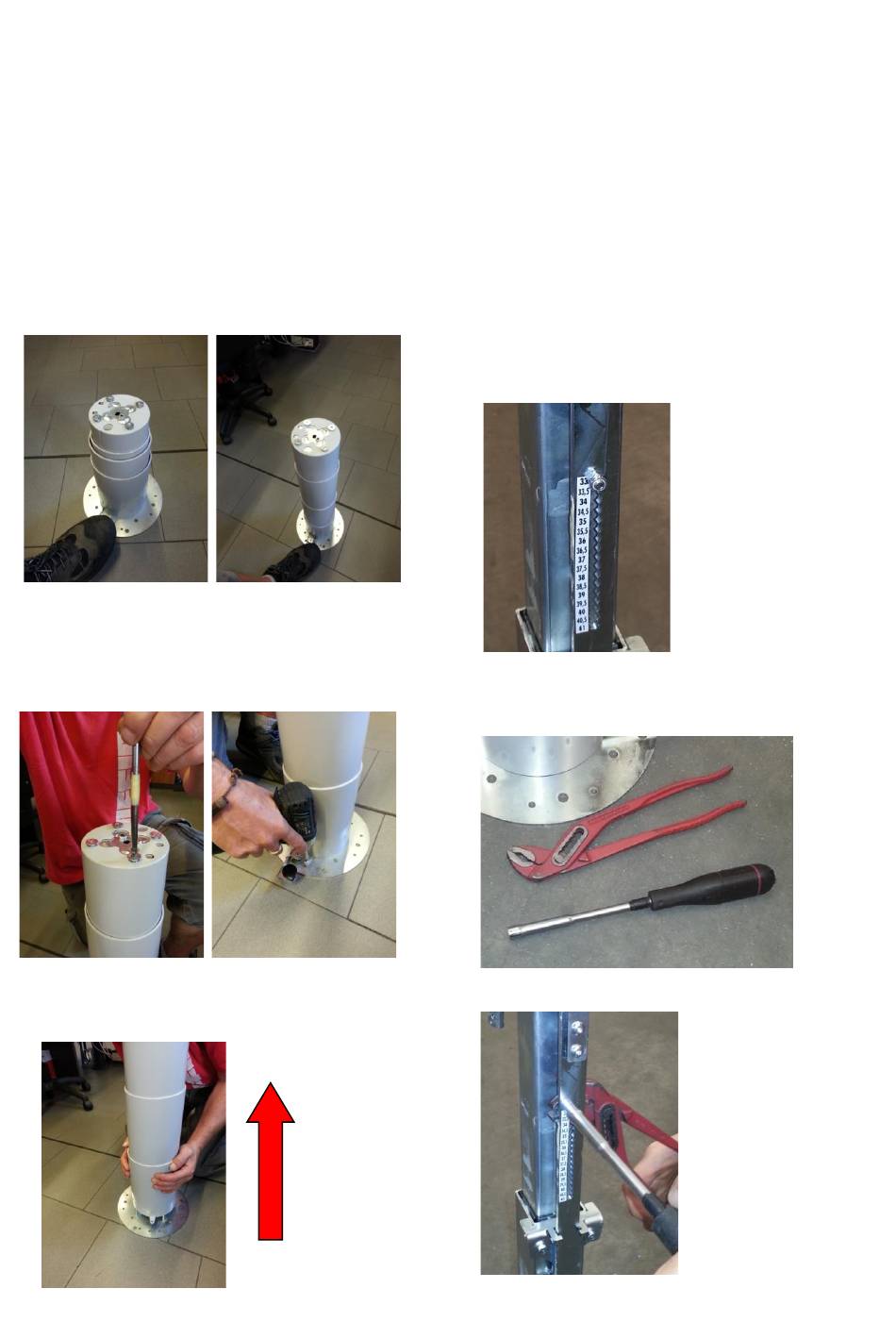

1 – Press the black base knob and open the table to full
height.
2 – Unscrew the four screws that are securing the plastic
cover at the top of the table leg. And unscrew the two
screws that are securing the plastic cover at the bottom of
the leg.
3 – Remove the plastic cover to expose the internal metal
components
mechanism (Coast part number 400-02600)
4 – Locate the nut and bolt which will enable the bed height
adjustment from the lowest position to the highest. Next to
the adjusting nut and bolt you will find a range of
measurements that will enable to set the required height for
a bed position.
5 – Tools required, a set of vice grips and an 8mm socket
spanner.
6 – Hold bolt with vice grips and undo nut.
