Thank you for purchasing COMMTEL Brand (B110RB) wide
band monitor receiver.
Please read this operating manual to avoid misoperation of the
receiver. The B110RB is carefully designed but like all receivers
b110rb suffers from a degree of self-oscillation knows as
"birdies". These are from the nature of super heterodyne circuit
and are not representing a fault.
NOTE: Where text described in [SQUARE BRACKETS] the
keys are to be pressed exactly as shows.
For example: [8] [0] [0] [ENT]
Means press the numeric key 8, followed by the 0 key,
followed by the 0 key, followed by the ENT key.
PWR 1 2 3
ATT STEP MODE
SRCH 4 5 6
S.PROG SLEEP DELAY
SCAN 7 8 9
BANK M.DEL CH.PASS PAUSE
MANU 0 PASS PRIO
LAMP BEEP PRIO/SET
PWR CLR ENT
MHz/SER. kHz/SS
H
K
L
M
J
N
Power requirement: B110RB can be operated from either
Ni-Cad. batteries, Dry cell batteries or external DC supply
of 9 - 6Vdc, 300mA minimum.
CAUTION: Do not attempt to connect B110RB directly
to the mains supply.
Very carefully note the polarity of the battery cells. Also
never attempt to charge the receiver or connect to an
external power source when dry batteries are in the
compartment. Always remove dry batteries when they
have run down and try not to use the B110RA for a period
of time and have dry batteries fitted, remove the batteries
to avoid leakage.
All memory channel data is stored into internal EEPROM
which does not require batteries or connection to external
supply. However always turn off the B110RB whenever
radio is not in use. Particularly turn off the B110RB while
B110RB WIDE RANGE SCANNER
(COM 610)
A
ATT PROG SEARCH SCAN MANUAL
BANK
W FM AM LSB USB PAUSE
DELAY PLAY SERIAL CH PASS
B
MHz kHz
REC
BUSY
LC-DISPLAY
D
C
SQL VOL
DIAL
ANT
F
WIDE RANGE RECEIVER
EAR
O
DC
OPEN
The arrow keys to the lower left of the keypad are referred to
as UP/DOWN or [UP] [DOWN] keys.
The function key [2ndF] provides access to additional facilities
via the numeric keypad. This key should be momentarily
pressed only before another numeric key is pressed. Do not
hold the key in while pressing other keys.
[PWR] Power switch: To turn on B110RB, press and hold the
[PWR] key for more than 1.5 seconds. Similarly to turn off the
radio, press and hold the power key for more than1.5 seconds.
Packing List:
LINK
FUNCTIONS
SS
A
LCD, liquid crystal display
B
Keypad
E
C Internal speaker
D SQ, squelch control
E
VOL, volume
G
F
EAR, earphone jack
G
DIAL, tuning control/selector
H Belt hook
J Battery compartment
K
2nd F, function key
L
MONI, monitor key
M
K. LOCK, key lock
N
RESET switch
O DC socket
charging.

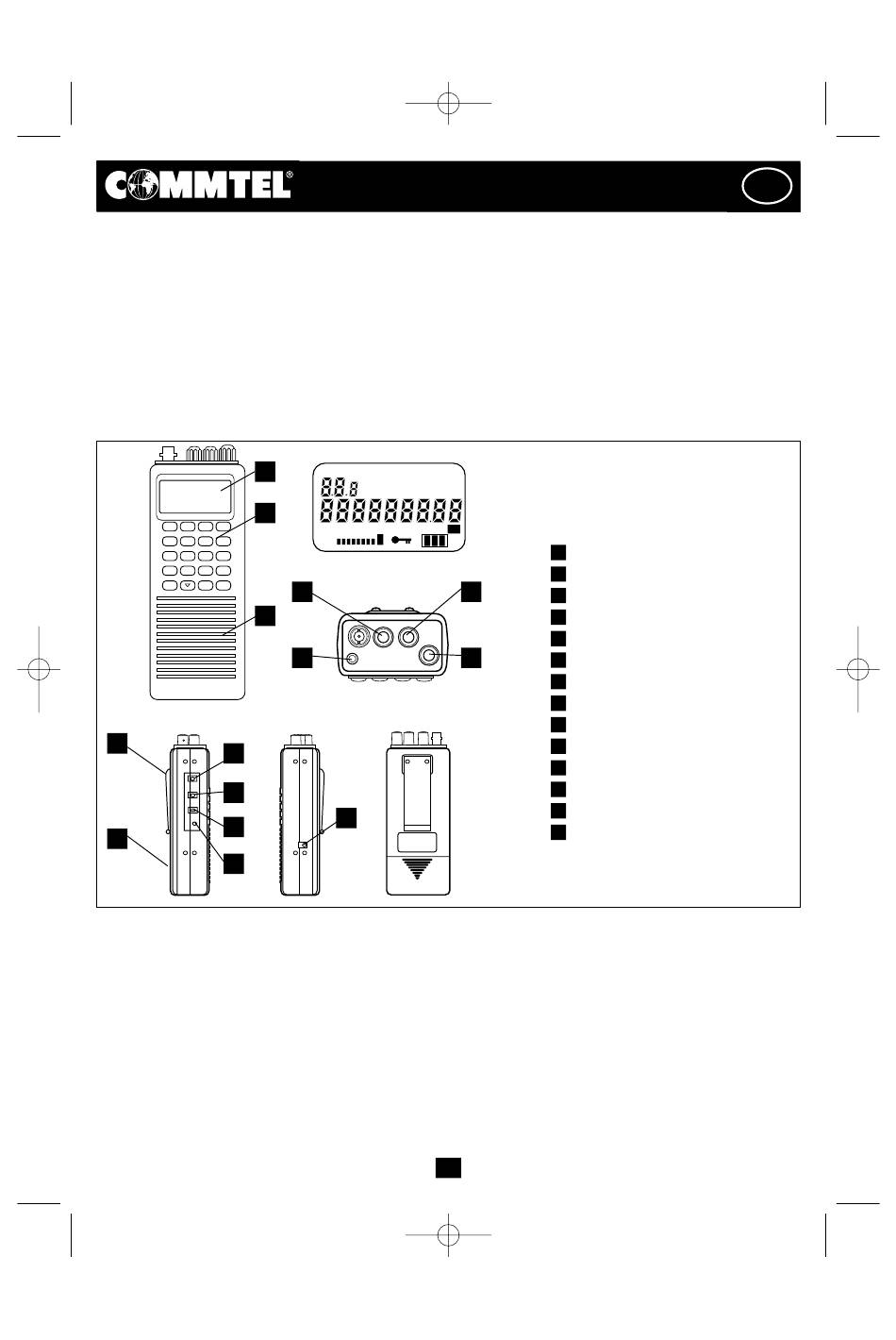

Connectors, controls and functions
TOP PANEL
1. Antenna Connector: This is high quality BNC 50 ohm
unbalanced input. The supplied telescopic antenna should
be connected to this input.
2. EAR, Earphone Jack: This is 3.5mm mono socket
permits connection to an external earphone,headset or
speaker of 8 ohm impedance or greater. When this
earphone socket is used, the internal speaker will be
automatically muted.
3. Dial - Tuning Control/Selector: This dial changes the
receiving frequency up and down in selected frequency
increments and this dial also operates as a "selector"
1
GB
Telescopic antenna
Belt clip
Hand strap
Operating manual
