Harmopool ZBZX2074 Instruction

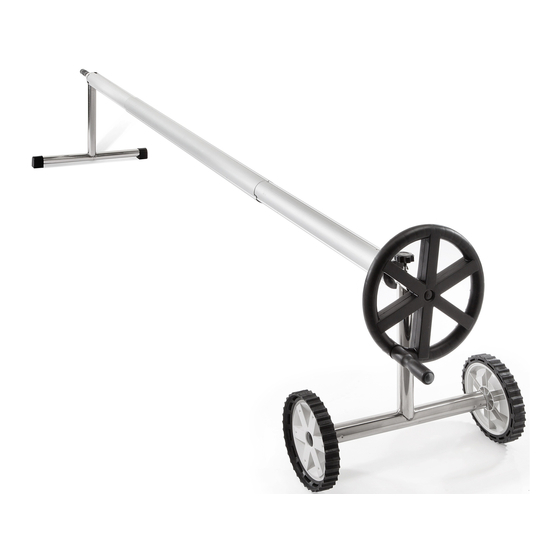

Assemble it on U shape frame pool cover reel

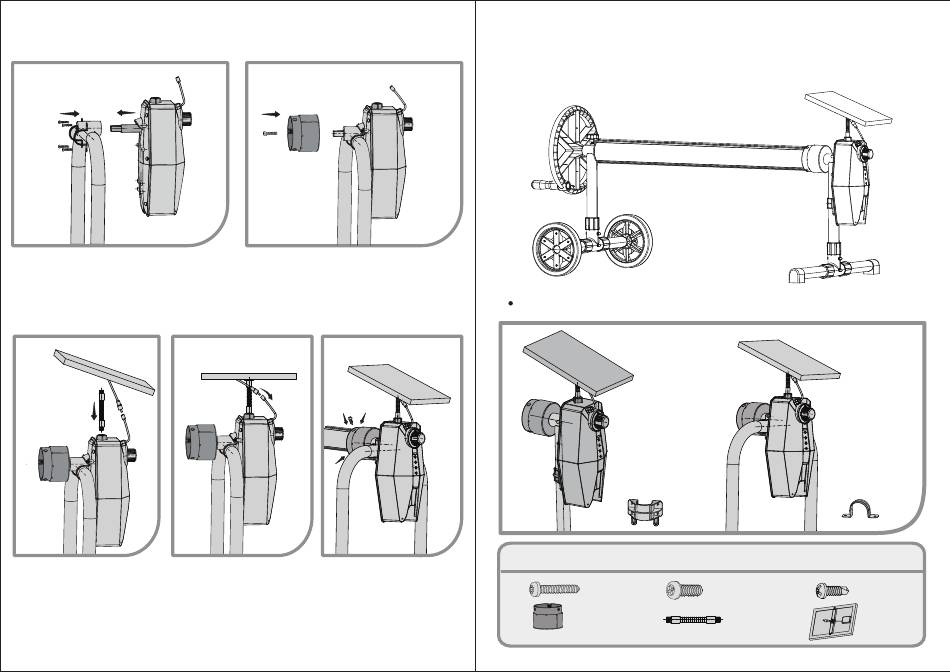

Step 1
E
A
F
B
Step 1: Take part A and inset it into the hole of Part B.
Take part E and secure the automatic machine
on frame (part B) with four M5 metal screws(part F).
Step 3 Step 4
H
G
C
A
B
Step 3: Take part G and insert it Step 4: Connect the line of part H
into the hole on the top of
electric machine. And then
connect part H（solar panel）
with the other end of part G.
Step 2
C
D
B
Step 2: Take Part C and connect it with part A , Secure
the assembly with the metal screw D (M6 screw).
Step 5
H
G
I
I
C
C
I
A
B
B
Step 5: Fix part C and the tube with
with the line on electric Part I
machine, and then fix the
waterproof cap tightly.
Electric Pool Cover Reel Instruction
A
NOTE：The electric machine should be assembled on the other side of the handle wheel.
H
G
A
F
C
E X 1
SPARE PARTS LIST
X 4 D X 1
X 1 G X 1
E X 2
I X 3
H X 1
