Summary of Contents for CAME MTMA/01

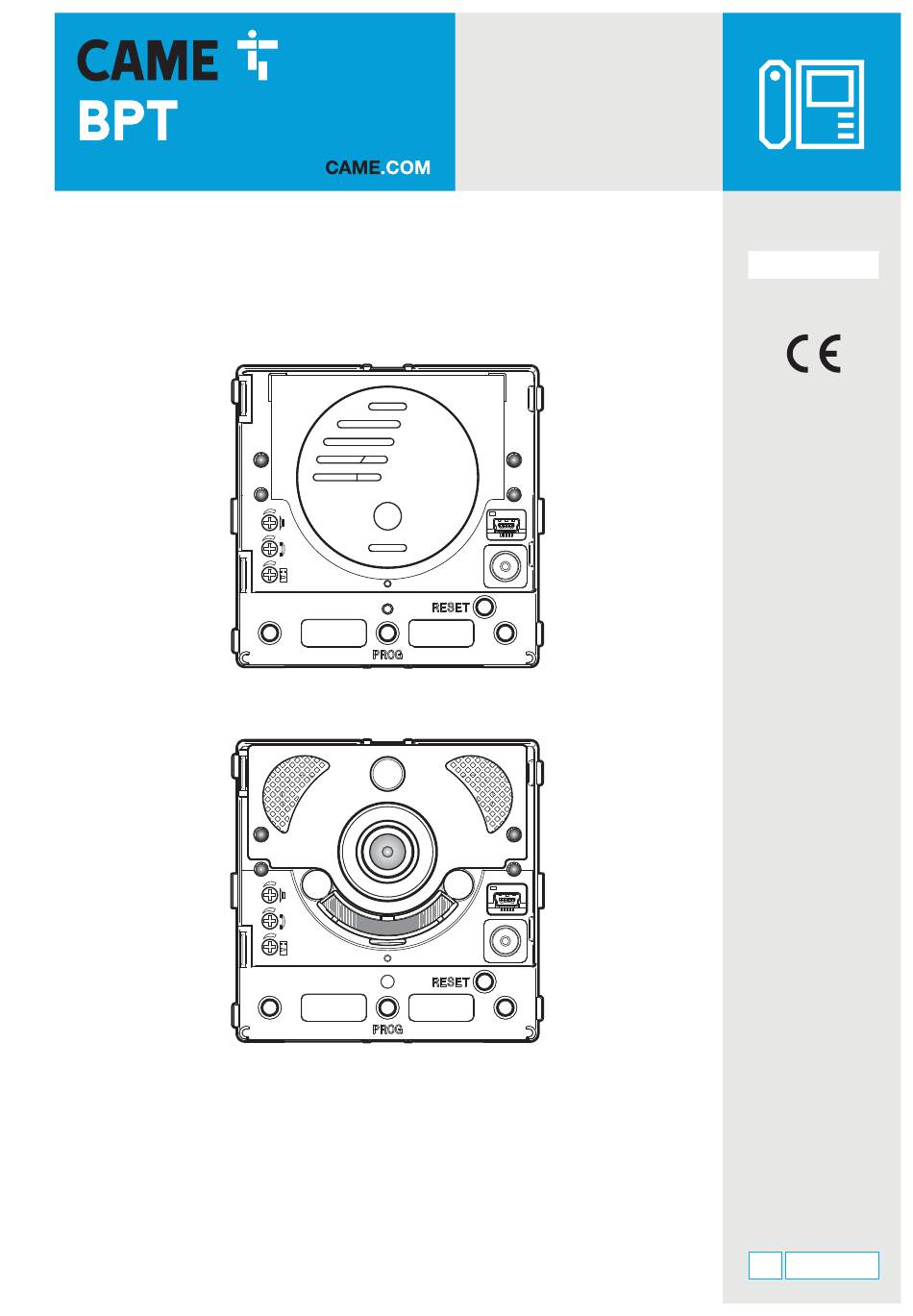

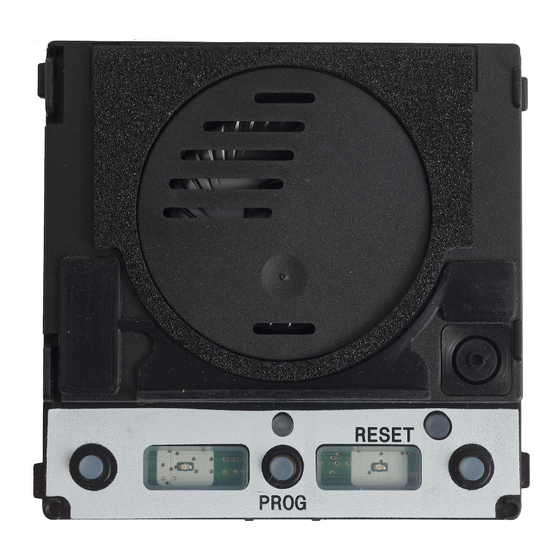

- Page 1 Communication unit for X1 systems FA14079-EN MTMA/01 - MTMV/01 EN English PROGRAMMING MANUAL...
- Page 2 General precautions • Read the instructions carefully before beginning the installation and carry out the procedures as specifi ed by the manufacturer. • The installation, programming, commissioning and maintenance of the product must only be carried out by technicians who are qualifi...
- Page 3 PROGRAMMING ENTRY PANELS WITHOUT VA/01 OR A/01 Programming for the first time Entering programming mode on the entry panel for at least 3 seconds and release Press and hold the PROG button within 6 seconds. >3’’ >3’’ PROG The LEDs and the button LEDs fl...
- Page 4 Exiting programming Press the PROG button briefl y . The LEDs on the entry panel <1’’ <1’’ switch off . PROG Adjusting the brightness and colour of the module backlight During call programming ①, you can adjust the brightness and colour of the module backlight.
- Page 5 Enabling/disabling Press the PROG button on the entry panel and hold for at least 20 seconds The red and yellow LEDs fl ash quickly for 3 seconds NOTE: If the intercommunicating function is disabled, follow this procedure to enable it, and vice versa. The yellow LED comes on for 2 seconds to show the function has been enabled, or the red LED comes on for 2 seconds to show...
- Page 6 Programming buttons 2 P.E. 2 P.E. 2 P.E. Press the fi rst call button on each unit (see “call number” section) until the blue LED and the button LEDs stop fl ashing. NOTE. The LED lights on the unit remain on to show that the buttons have been programmed correctly.
- Page 7 Adjusting the brightness and colour of the module backlight a a , you can control the brightness During call programming and colour of the unit backlight. Press the left call button to select b b , and the right call button to select blue c c .
- Page 8 CAME S.p.A. Via Martiri Della Libertà, 15 31030 Dosson di Casier - Treviso - Italy tel. (+39) 0422 4940 - fax. (+39) 0422 4941...
