Summary of Contents for Magikist iCoin CP900U

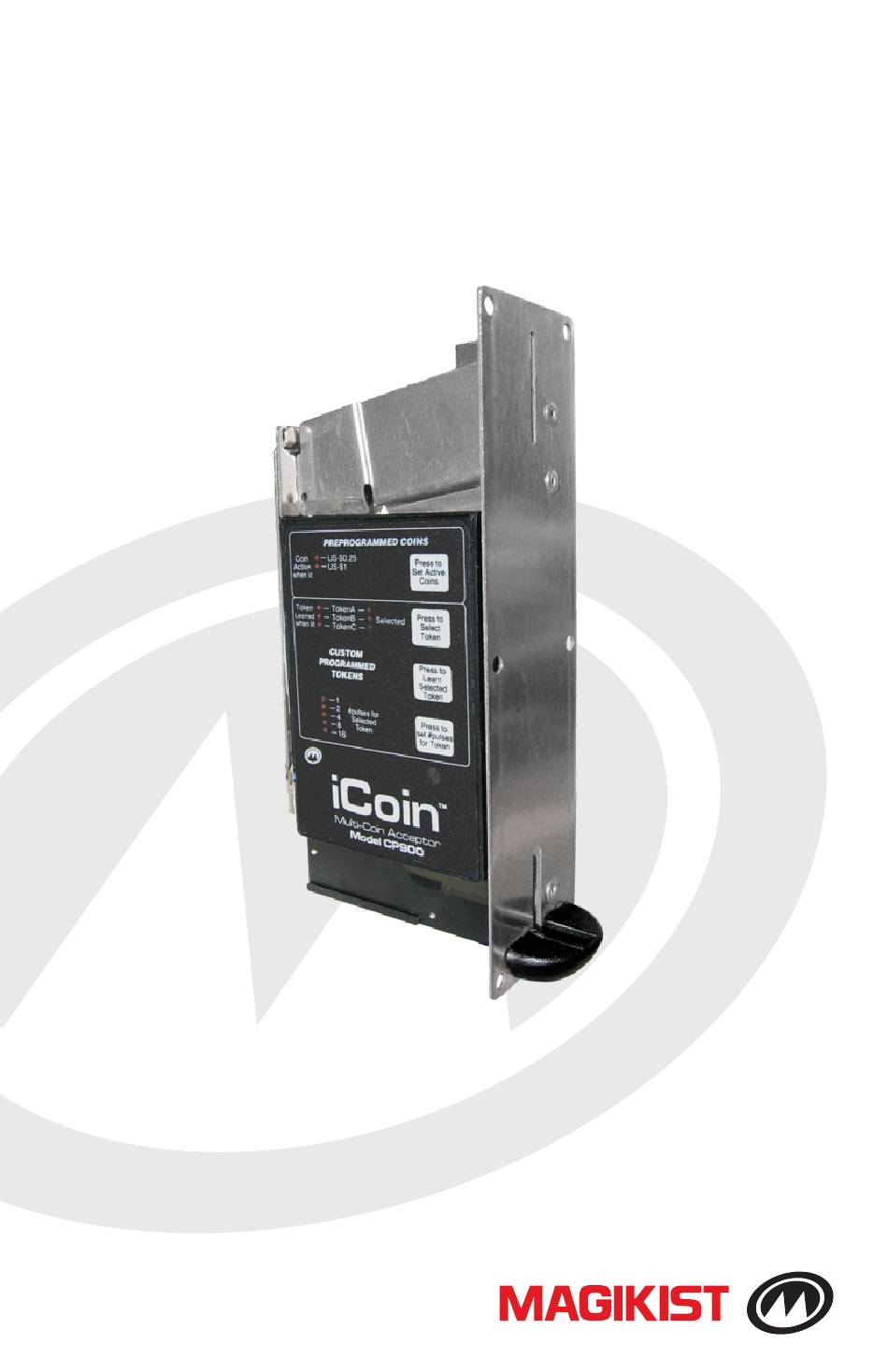

- Page 1 iCoin Model CP900U Electronic Multi-Coin Acceptor Instruction Manual v 1.2...
-
Page 3: Electrical Connection
1A, 125VAC, 60VDC to pulse. Following are the wiring connections for several brands of timers. If your timer is not listed, consult your supplier for further information. Magikist MagikTimer MT580 or iTimer MT580U YELLOW-24VAC HOT #2 terminal BLACK-COMMON #3 terminal... -
Page 4: Display Panel And Buttons
Grace Timer & PEM7 timer YELLOW-#3 terminal BLACK-#1 terminal BLUE-#4 terminal Dixmor DigitTimer 3 YELLOW-red wire on timer BLACK-green wire on timer BLUE-brown wire on timer Ginsan GS7 timer YELLOW-24VAC #3 terminal BLACK-24VAC #1 terminal BLUE-#4 terminal DISPLAY PANEL AND BUTTONS The iCoin utilizes a display panel and pushbuttons for setup and self-diagnostics. - Page 5 example, if the indicator lights for US-$0.25 and US-$1 are lit as in figure 5.1, then the iCoin will accept both the U.S. quarter and the $1 coin. If only the indicator light for US-$0.25 is lit, as in figure 5.2, then the iCoin will accept only the U.S.
- Page 6 TokenB, or TokenC is lit, then that token has already been learned. For example, figure 6.1 shows a setting where TokenA and TokenC have been learned. All learned tokens will be accepted by the iCoin. The currently lit indicator light under Selected shows which token is currently selected.
-
Page 7: Pulse Speed
You may at anytime "unlearn" a token. Make sure that the token you wish to erase is the currently selected token. Then press the Press to Learn Selected Token pushbutton. The indicator light under the Learned column next to the currently selected token will begin to flash. - Page 8 For the first second after power up, the indicator light 1 for #pulses for Selected Token shows the current pulse speed setting. If this light is on, pulse speed is normal. Conversely, if this light is off, pulse speed is slow. To change the pulse speed setting of the iCoin from its current setting, first verify what the current setting is by examining the indicator light 1 for #pulses for Selected Token at power up.
- Page 9 right side of the display panel as shown in figure 10.1, the hinged door will pull back to allow cleaning and removal of damaged coins. figure 10.1...
- Page 10 APPENDIX For future reference, write down the serial# located on the bottom of the black box of the coin acceptor. In addition, when learning tokens, record the details of each token on the following lines: SERIAL# ___________________________________ TokenA Description ____________________________________________ TokenB Description ____________________________________________ TokenC Description ____________________________________________...
