Summary of Contents for EPS Smart View DVA300

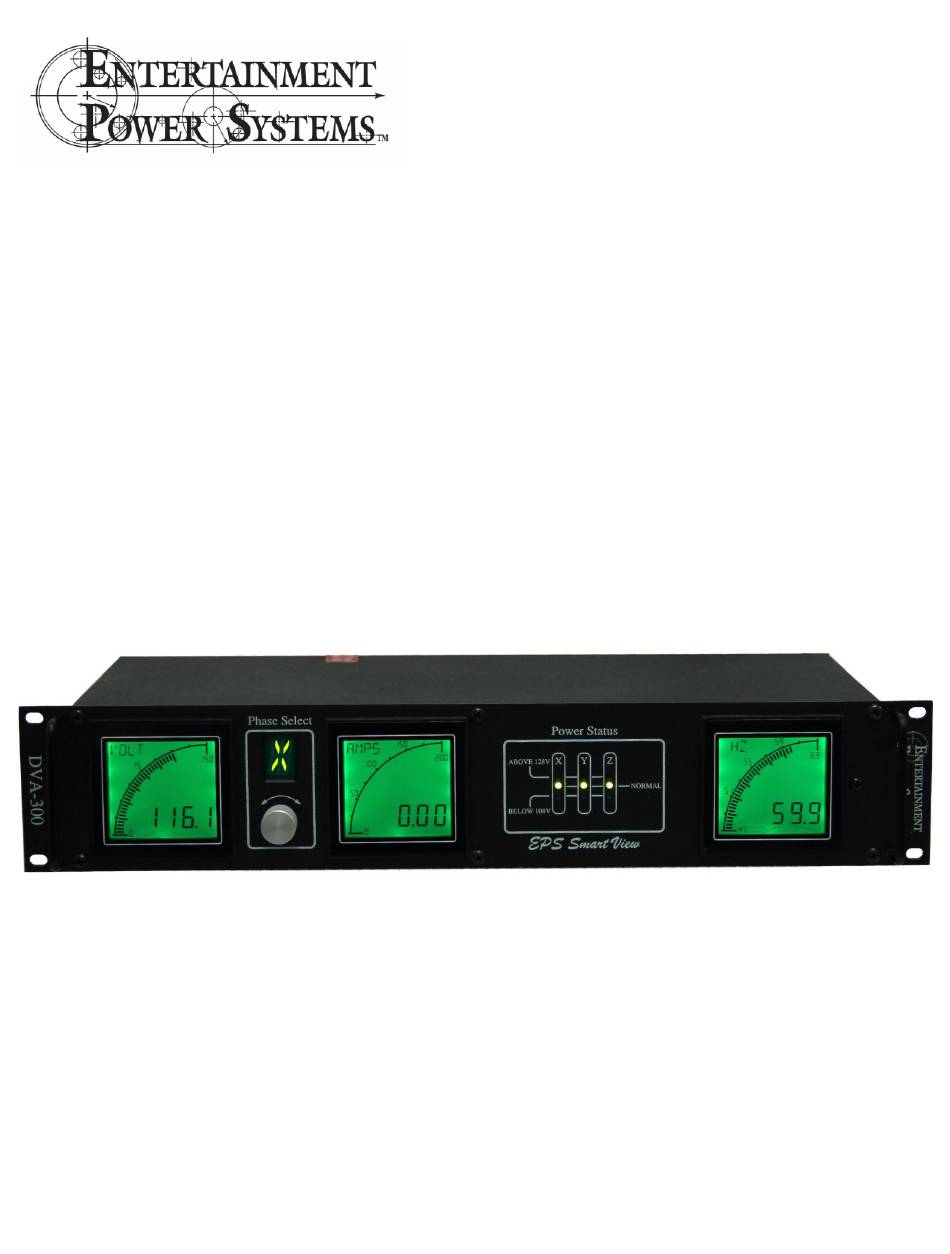

- Page 1 EPS Smart View™ 3-Phase Power Meter DVA300 User Manual Version 1.17 08-14-2019...
-
Page 2: Box Contents

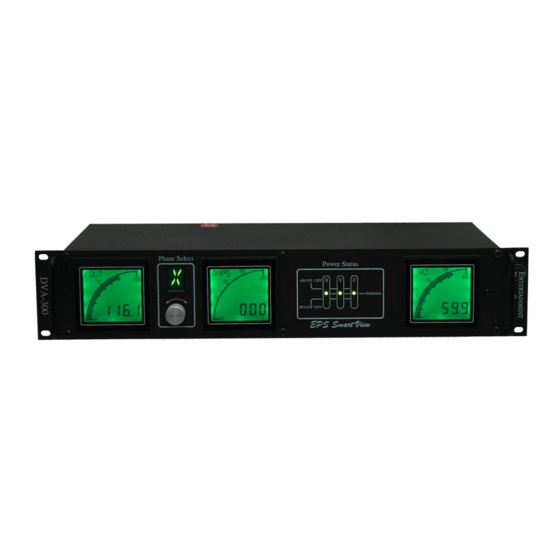

Description Entertainment Power Systems EPS DVA300 Smart View Power Meter is a UL Listed rack mount 3-phase power meter designed for use in portable or installed applications. This device performs voltage, frequency and current measurement functions. Split core current transformers are available for either 200A or 400A metering capabilities. -
Page 3: Definitions And Symbols
DVA300 User Manual Safety Definitions and Symbols HIGH VOLTAGE: This symbol indicates high voltage. It calls your attention to items or operations that could be dangerous to you and other persons operation this equipment. Read the message and follow the instructions carefully CAUTION: Indicates a potentially hazardous situation which, if not avoided, can result injury, or damage to the product. - Page 4 DVA300 User Manual Safety (continued) Safety Instructions and Information - Read before installation This meter is suitable for use in dry locations only - IP20 (NEMA 1) If this meter is used in a manner not specified in this manual, the protection provided by the equipment may be impaired.
-
Page 5: Front Panel Layout
Front Panel layout 1) Volt meter 2) Phase selector rotary switch 3) Phase indicator screen 4) Amp meter 5) EPS Smart View™ power monitor 6) Frequency meter Rear Panel layout 7) Protective Earthing connection 8) Voltage input receptacle 9) Current Transformer input receptacle... -
Page 6: Installation
DVA300 User Manual Installation HIGH VOLTAGE: HAZARD OF ELECTRICAL SHOCK. DISCONNECT INCOMING POWER FROM THE DEVICE TO BE METERED BEFORE INSTALLING or ADOPT SAFE OPERATING PROCEDURES WHEN WORKING ON HAZARDOUS LIVE INSTALLATION DURING APPLICATION AND REMOVAL OF THE CURRENT TRANSFORMERS. Part 1 - Installing Current Transformers Use of the incorrect current transformer may cause damage to the meter. - Page 7 DVA300 User Manual Installation (continued) HIGH VOLTAGE: HAZARD OF ELECTRICAL SHOCK. DISCONNECT INCOMING POWER FROM THE DEVICE TO BE METERED BEFORE INSTALLING or ADOPT SAFE OPERATING PROCEDURES WHEN WORKING ON HAZARDOUS LIVE INSTALLATION DURING APPLICATION AND REMOVAL OF THE CURRENT TRANSFORMERS.
- Page 8 DVA300 User Manual Installation (continued) Part 2 - Connecting to the Voltage Source HIGH VOLTAGE: HAZARD OF ELECTRICAL SHOCK. DISCONNECT INCOMING POWER FROM THE DEVICE TO BE METERED BEFORE INSTALLING The installer must determine the appropriate method of connecting the meter voltage leads to the voltage source.
-
Page 9: Operation
DVA300 User Manual Operation Power On - The DVA300 is powered on automatically when the equipment to be metered is powered on. There is no power switch. Selecting a Phase or Neutral to be monitored - The rotary selector switch allows the user to select a phase or Neutral to be monitored. - Page 10 DVA300 User Manual Operation (continued) EPS Smart View™ Smart View™ allows users to monitor voltage conditions of all three phases at a glance. Correct Voltage - Normal Operation When voltage is within range (108V to 128V), the Green - Normal LED will be lit for that phase.
-
Page 11: Specifications
Further details can be found at https://www.creativestagelighting.com/support/warranties/ Contact Us We’d love to hear from you! Please contact us with any questions or concerns regarding this meter. Creative Stage Lighting Co., Inc. 149 State Route 28N PO Box 567 North Creek, NY 12853 518-251-3302 eps@creativestagelighting.com...
