VeGue VS-6633 Instruction Manual

Trouble shooting guide

Common
Possible Cause
problems
There is
1. No input source.
no sound
2. The main volume is at the
when
power is
minimum position.
on
1.Volume is adjusted to max.
Distortion
of sound
2.Speaker may be damaged.
1. The microphone switch is not
on.
2. Mic volume is at 0 position.
Mic
is silent 3. Low battery of wireless
microphone.
1.USB song format is wrong.
2. Improper operation leads to
MP3
procedural chaos.
is silent
3. The USB /TF card is not
inserted properly.

Main technical specifications

Output power-----------------------------------
Input sensitivity-----------------------------
SNR-----------------------------------------
Frequency response-----------------------
Power supply----------------------------------
*Above specifications are the specifications of the sampling machine and are for reference purpose only.
*Because of continuous product improvement.specifications will keep changing at any time without prior
notification.
Solution
1. Use better music signals.
2. Adjust the volume appropriately.
1.Turn down the main volume.
2. Check whether the speaker is
damaged or not.
If it so, it needes to be repaired.
1. Turn on the microphone switch.
2. Adjust the microphone volume
appropriately.
3. Replace the wireless microp-
hone battery.
1. Convert the format to MP3.
2. Restart the machine.
3. Unplug and re-plug into
the USB/TF card.
200W
500±30mV
≥65dB
70Hz~20KHz
DC 15V
Instruction Manual
VS-6633 VS-6633

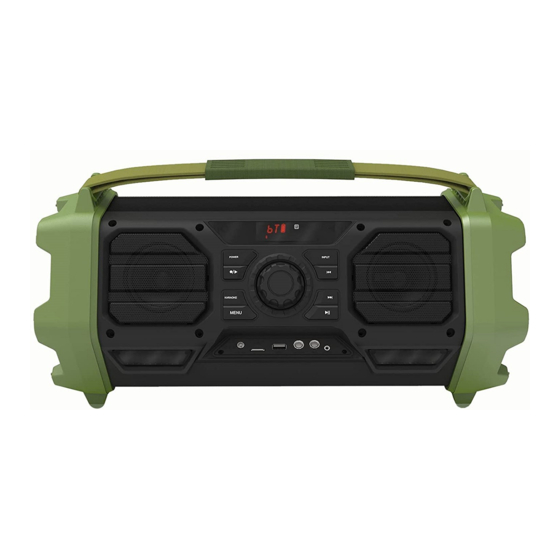

Portable BT speaker system
Portable BlUEBOOTH speaker system

Common function description

Vol：Adjust volume
Treble：Adjust treble
Bass： Adjust bass
Mic Vol：Adjust microphone volume
Echo：Adjust echo
Mic：Wired microphone input

Product features

This system can be used with PC, DVD, VCD, MP3, Electronic Piano and any device with
audio output.
The amplifying circuit is designed with high performance and high fidelity, and equipped with
professional and high quality speaker, it can make the sound field positioning clear and layered.
The system voice effect is outstanding, the bass is surging and shocking, the middle tone is
strong and bright, the treble is crisp and pleasant.
Professional electronic frequency division circuit, so that the division point of the machine more
accurate, better effect.
The use of professional design and manufacture of large capacity batteries, as well as audio
power supply capacitor makes the local power reserve margin more larger,more stable,better
dynamic,higher SNR.

Charging instructions

When charging, use the power transformer that comes with the package to connect AC 100V
~ 240V voltage for charging. The charging time should be 6 ~ 8 hours. After being fully charged,
unplug the power supply to avoid damage to the battery due to long-term charging.
Battery level indicator: There is a battery level indicator on the display.
When the battery power is too low, the battery indicator icon will flash, please
charge it in time. The red light on the display will light up when charging, and
the blue light on the display will light up when fully charged.
Note: If the battery is used out, please recharge the battery within 48
hours.Do not leave the empty battery for a long time, otherwise the battery will be
damaged.
