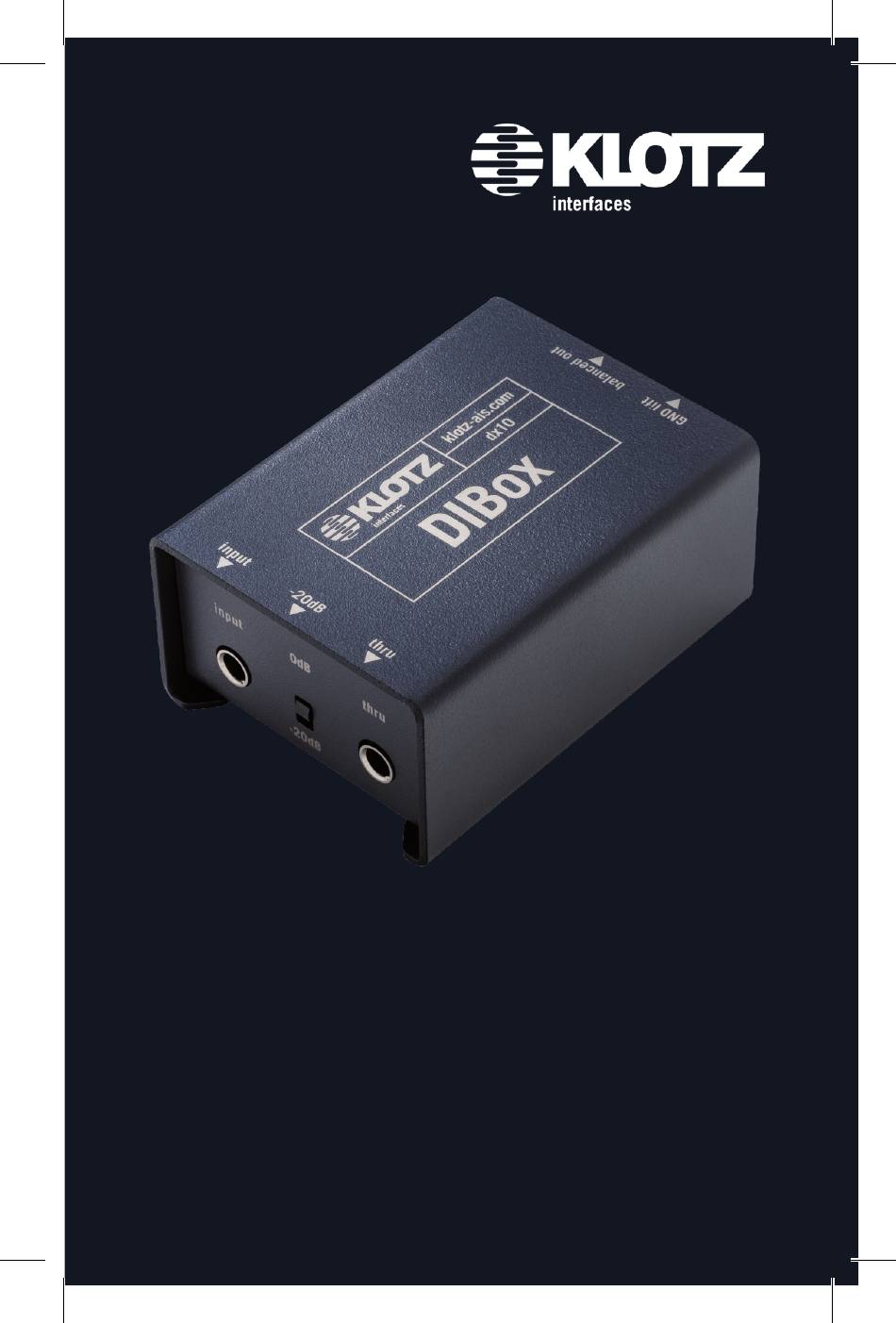

- Page 1 bedienungsanleitung...
-
Page 2: Table Of Contents
KLOTZ DX10 passive di-box instruction manual english contents introduction connections and controls application examples re-amping FAQs technical specs and dimensions warranty bedienungsanleitung deutsch... - Page 3 Thank you for choosing this KLOTZ AIS product! Our KLOTZ DX10 passive DI Box is a top-quality product made in Germany. made in Every product from our company undergoes rigorous material and functional testing. KLOTZ AIS therefore grants a 5-year warranty on the KLOTZ DX10 assuming correct use of the product.
- Page 4 The KLOTZ dx10 is a passive DI box; unlike active DI boxes, it does not require an external power supply. Just connect...
-
Page 5: Connections And Controls

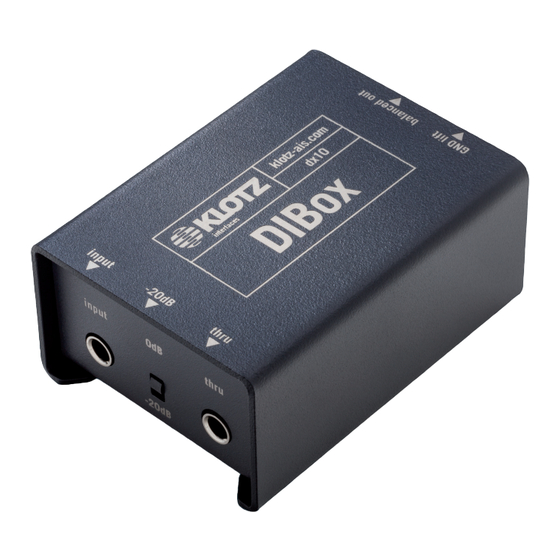

connections & controls input view input thru instrument input instrument output 0 dB/- 20 dB pad switch, reduces input level by 20 dB output view lift/Gnd ground lift (isolates the ground connection) to prevent ground loops balanced out Recessed sockets and switches offer excellent protection from accidental use... -
Page 6: Application Examples
Before you connect the KLOTZ dx10 with your equipment, set the volume of your instruments and amplifiers and your mixer faders to “0” or “-∞”. This prevents that notorious “pop” when you plug in your instrument, as well as protecting your ears – and your PA system. -
Page 7: Re-Amping
In re-amping, a previously recorded guitar signal is retrans- mitted through the guitar amp and re-recorded. 1. Set up your system as usual with the KLOTZ dx10 and make a “clean” recording of the signal from “Balanced Out” on a separate track. -
Page 8: Faqs
FAQs Why is the output of the KLOTZ dx10 not as loud as signals from other sources such as a keyboard? The KLOTZ dx10 is a passive DI box, designed to output a balanced signal at mic level. It is compatible with standard mic inputs on a mixer. -
Page 9: Technical Specs And Dimensions
technical specs and dimensions housing: extremly solid V2A steel frame dimensions: L = 103 mm; W = 75 mm; H = 49 mm L = 103 mm technical data unbalanced input and output: 6.3 mm jack socket balanced output: XLR 3p. male max. - Page 10 We applied the same high quality standards when choosing the other components. The ultra-rugged housing easily copes with the stresses and strains of live performance. We’re so convinced by our quality that every KLOTZ DX10 carries a 5-year warranty!
