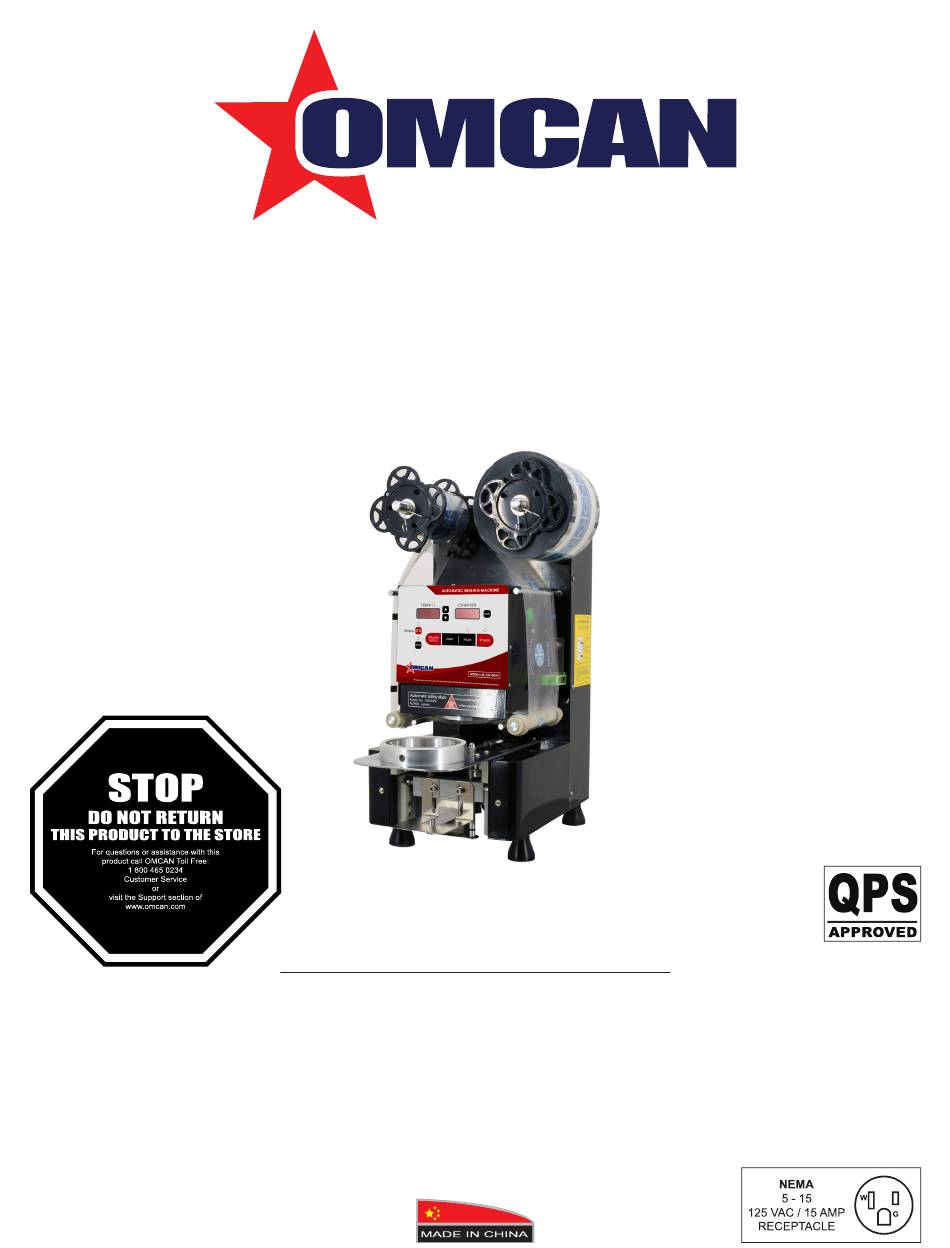

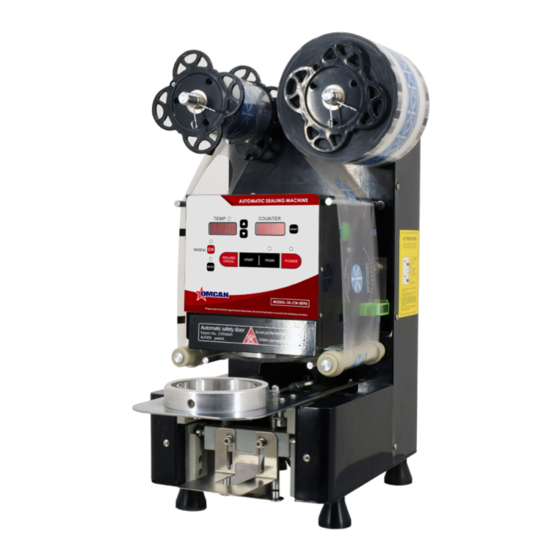

- Page 1 Cup Sealer Model SE-CN-0095 Item 44644 Instruction Manual Revised - 06/25/2021 Toll Free: 1-800-465-0234 Fax: 905-607-0234 Email: service@omcan.com www.omcan.com...
-
Page 2: Table Of Contents
Table of Contents Model SE-CN-0095 Section Page General Information --------------------------------------------------------------------------- 3 - 4 Safety and Warranty --------------------------------------------------------------------------- 4 - 5 Technical Specifications -------------------------------------------------------------------------- 5 Installation -------------------------------------------------------------------------------------------- 6 Operation ----------------------------------------------------------------------------------------- 7 - 8 Maintenance ----------------------------------------------------------------------------------------- 8 Troubleshooting -------------------------------------------------------------------------------- 8 - 9... -
Page 3: General Information
If the package has suffered rough handling, bumps or damage (visible or concealed), please note it on the bill of lading before accepting the delivery and contact Omcan within 24 hours, so we may initiate a claim with the carrier. A detailed report on the extent of the damage caused to the machine must be filled out within three days, from the delivery date shown in the shipping documents. -
Page 4: Safety And Warranty
Si el paquete ha sufrido un manejo de poco cuidado, golpes o daños (visible o oculto) por favor anote en la factura antes de aceptar la entrega y contacte Omcan dentro de las 24 horas, de modo que podamos iniciar una reclamación con la compañia. -
Page 5: Technical Specifications
Safety and Warranty Within the warranty period, contact Omcan Inc. at 1-800-465-0234 to schedule a drop off to either an Omcan authorized service depot in the area, or to an Omcan Service warehouse to repair the equipment. Unauthorized maintenance will void the warranty. Warranty covers electrical and part failures, not improper use. -
Page 6: Installation
Installation Please follow the below procedure: Please note the relative positions between the membrane and all the 6 guide pins. To make sure the rotation of the membrane is driven by the roller, the slot on the pressing board should hold the screw of the active position ring. -
Page 7: Operation
Operation The machine is to be powered with by 110V AC with a grounded wire. When the power light flashes it means that the machine is powered and in standby mode. Press the power button, the power light turns on. Press the pause button, all operation is paused and held. -
Page 8: Maintenance
Operation CUSTOM PARAMETER SETTING The sealing time, giving in time and giving out time can be user defined. There is an option for using or not using the electrical eye, which is useful for the polished membrane, aluminum membrane, ect. Parameters Code Meaning... - Page 9 Troubleshooting ADDITIONAL INCORRECT OPERATIONS 1. The spring of the driven stick is not installed correctly or compressed tightly. 2. The membrane is not installed in the U-type slot of the electrical eye. 3. The tracking symbol (a square box) on the membrane is not on the light path of the electrical eye. 4.
-
Page 10: Parts Breakdown
Parts Breakdown Model SE-CN-0095 44644... - Page 11 Parts Breakdown Model SE-CN-0095 44644...
- Page 12 Parts Breakdown Model SE-CN-0095 44644 Item No. Description Position Item No. Description Position Item No. Description Position AG497 Main PCB (Big PCB) for 44644 AG508 Input and Output Switch for 44644 AG519 Upper Mold for 44644 AG498 PCB Displayer (Panel PCB) for 44644...
-
Page 13: Electrical Schematics
Electrical Schematics Model SE-CN-0095 44644... -
Page 14: Notes
Notes ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________... -
Page 15: Warranty Registration
Warranty Registration Thank you for purchasing an Omcan product. To register your warranty for this product, complete the information below, tear off the card at the perforation and then send to the address specified below. You can also register online by visiting: Merci d’avoir acheté... - Page 16 Since 1951 Omcan has grown to become a leading distributor of equipment and supplies to the North American food service industry. Our success over these many years can be attributed to our commitment to strengthen and develop new and existing relationships with our valued customers and manufacturers.
