Summary of Contents for Amit RRAS-MCT/A
- Page 1 RRAS-MCT/A IP phone set for rolling stock Operation manual Version 1.00 rras-mcta_g_en_100...
- Page 2 RRAS-MCT/A AMiT, spol. s r.o. does not provide any warranty concerning the contents of this publication and reserves the right to change the documentation without obliga- tion to inform any body or authority about it. This document can be copied and redistributed under following conditions: 1.
-
Page 3: Table Of Contents
RRAS-MCT/A Contents History of revisions ..................4 Related documentation ................... 4 Introduction ..................5 Technical parameters ................6 2.1. Dimensions ..................... 7 2.2. Recommended drawing symbol ..............8 Compliance assessment ..............9 3.1. Other tests ...................... 9 IP phone set front panel ..............10 4.1. -
Page 4: History Of Revisions
RRAS-MCT/A History of revisions Document name: rras-mcta_g_en_100.pdf Author: Lukáš Čeřovský Revision Date Changes 23. 5. 2011 New document Related documentation Operation manual ACASYS-AS file: acasys-as_g_en_xx.pdf Applicat o ote A es o us ther et et ork file: ap0016_en_xx.pdf rras-mcta_g_en_100 4/19... -
Page 5: Introduction

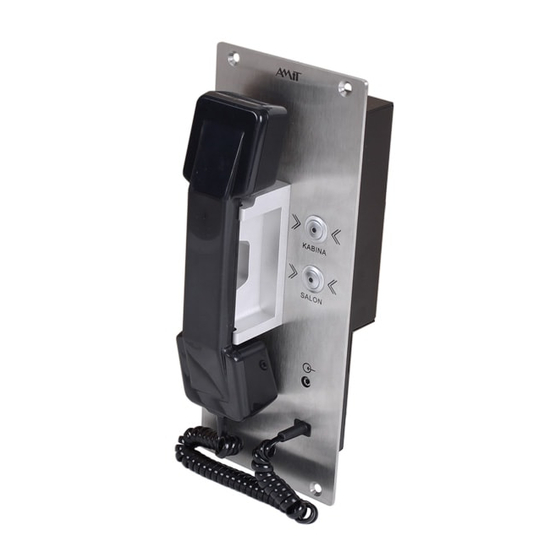

RRAS-MCT/A 1. Introduction RRAS-MCT/A is a communication device for rolling stock, determined for pas- senger area. Receiver handset with magnetic holder Basic features 2 illuminated control button Attaching of external speaker for ringing and listening Ethernet 100 Mbps interface ... -
Page 6: Technical Parameters
RRAS-MCT/A 2. Technical parameters Processor STM32F207 Internal FLASH memory 512 KB Internal RAM 128 KB EEPROM 2 KB Receiver Cable maximum length 100 cm handset Handset fixation Magnetic holder Handset detection Magnetic contact Controls Quantity Type Antivandal push button Illumination... -
Page 7: Dimensions
The equipment meets the SIL0 classification according to EN 50129:2003 Railway applications – Communication, signalling and processing systems – Safety-related electronic systems for signalling. 2.1. Dimensions 17,6 44,1 105,6 Fig. 2 - RRAS-MCT/A dimensions 7/19 rras-mcta_g_en_100... -
Page 8: Recommended Drawing Symbol
RRAS-MCT/A 2.2. Recommended drawing symbol Following drawing symbol is recommended for RRAS-MCT/A IP phone set. On- ly part of it will be visible in following examples. RRAS-MTC/A RJ45 SPK+ SPK- Fig. 3 - Recommended drawing symbol for RRAS-MCT/A rras-mcta_g_en_100 8/19... -
Page 9: Compliance Assessment
RRAS-MCT/A 3. Compliance assessment The equipment meets the claims of Czech government decree NV616/2006; the compliance assessment has been performed in accordance with harmonized standard EN 50121-3-2:2006. Tested in accordance Type of test Classification with standard EN 55011:2007 Radio disturbance complies EMC –... -
Page 10: Ip Phone Set Front Panel
RRAS-MCT/A 4. IP phone set front panel On the device front panel is located the handset with holder, control buttons and 3.5 mm jack for external sound source: Cabin call button Saloon message button External audio input Fig. 4 - IP phone set front panel 4.1. -
Page 11: Power Supply
RRAS-MCT/A 5. Power supply The RRAS-MCT/A IP phone set can be powered by 24 V DC vehicle onboard network. Power supply Fig. 5 - Power supply connector location Wiring RRAS-MTC/A example RJ45 24 V= SPK+ SPK- Fig. 6 - IP phone set powering... -
Page 12: Speaker Output
RRAS-MCT/A 6. Speaker output Speaker connection Fig. 7 - Location of connector for external speaker Wiring of X1 Terminal Label Meaning connector Module chassis. Power supply, ground Power supply, +24 V DC SPK- Cabin speaker SPK+ Cabin speaker RRAS-MTC/A Reproduktor FR8WP8OHM (8 ... -
Page 13: Ethernet
RRAS-MCT/A 7. Ethernet The Ethernet interface connector is located on IP phone set housing rear side. LED indicators are built in Ethernet connector body. Ethernet Fig. 9 - Location of Ethernet line connector Line state Activity of Ethernet line is indicated by LEDs (LNK and ACT) on Ethernet line indicator connector. -
Page 14: Connectors And Terminals Layout
RRAS-MCT/A 8. Connectors and terminals layout Power supply Ethernet Fig. 10 - Connectors and terminals layout rras-mcta_g_en_100 14/19... -
Page 15: Configuration Settings
RRAS-MCT/A 9. Configuration settings All IP phone set configuration is performed via Ethernet interface. 9.1. Factory settings The IP ho e set s tted th „R STOR “ butto to et to a tory sett . The button should be pressed while switching the phone set supply voltage on. -
Page 16: Mounting
RRAS-MCT/A 10. Mounting RRAS-MCT/A IP phone set is designed to be mounted into wall in passenger area. Phone set is vertically oriented. 90,0 108,0 Fig. 12 - Mounting aperture and holes for RRAS-MCT/A Fixing Fasten the IP phone set by 4 bolts M6 with raised countersung head, according to DIN 966. -
Page 17: Ordering Information And Completion
RRAS-MCT/A 11. Ordering information and completion Phone set RRAS-MCT/A Phone set for rolling stock, full WAGO connector set, Operation manual, Warranty card Speaker FR8WP8OHM/B Speaker 8 ohm, black color FR8WP8OHM/W Speaker 8 ohm, white color FR8WP TES Gasket for FR8WP 11.1. -
Page 18: Maintenance
RRAS-MCT/A 12. Maintenance Warning The maintenance mentioned above can be performed by manufacturer or authorized service only. Cleaning Time after time, with regard to way of using it is necessary to remove dust from device. The equipment can be cleaned by dry soft brush or vacuum cleaner, only when turned-off and disassembled. -
Page 19: Waste Disposal
RRAS-MCT/A 13. Waste disposal Electronics The disposal of electronic equipment is subject to the regulations on handling disposal electrical waste. The equipment must not be disposed off in common public waste. It must be delivered to places specified for that purpose and recycled.
