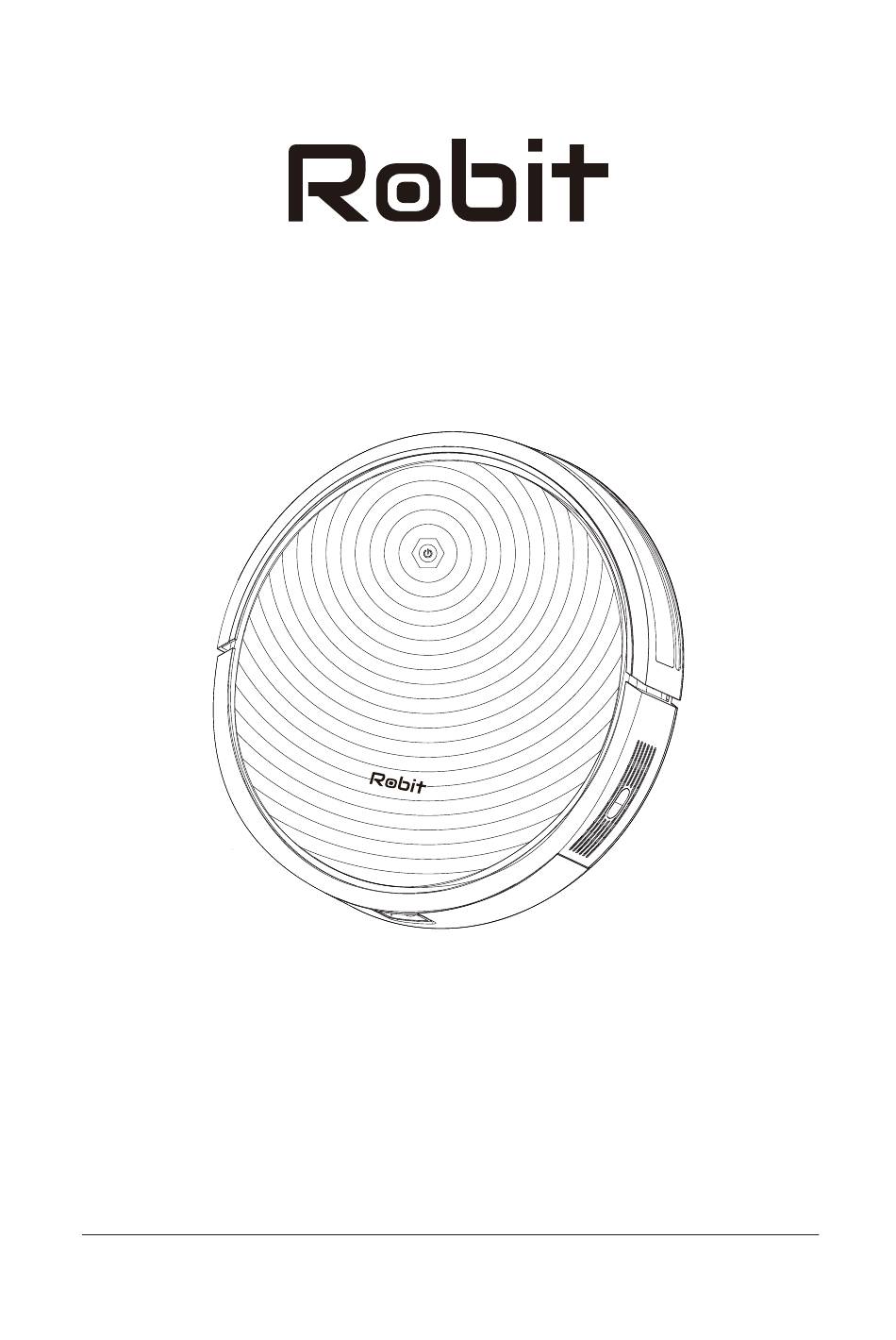

- Page 1 User Manual R3000 Robot Vacuum Cleaner...
-
Page 2: Table Of Contents
Table of Contents Important Safety Instructions ............P2-P4 About Your Robit R3000 Robot ...........P5-P8 Package Contents ................P5 Product Diagram ................P6 Specifications ..................P8 Instructions of Indicator Light ............P8 Using Your Robit R3000 Robot ..........P9-P17 Note Before Use ................P9 Preparation Before Use ..............P10 Operation .................. -
Page 3: Important Safety Instructions
Important Safety Instructions To reduce the risk of injury or damage, please kindly read these safety instructions before using, and carefully keep it for further reference. Cautions 1.1 Please use this product according to the instructions. Any operation that is not in accordance with this manual may cause damage to this product. 1.2 The product cannot be operated and used by children under 8 years old or mentally impaired people. - Page 4 Dangerous 2.1 Do not use the product in an environment with open flames or fragile items. 2.2 The working temperature range is -10℃ - 50℃, do not use it in low temperature or high temperature environment. 2.3 Please do not place the hair, clothes, fingers and other parts of the human body near the openings and moving parts of the product.
- Page 5 Cautions 4.1 Before cleaning and maintaining the product, be sure to unplug it from the power outlet and turn off the power switch. 4.2 Do not allow the robot to inhale liquids such as water, otherwise the product may be damaged. 4.3 Do not disassemble the battery of this machine without permission.
-
Page 6: Package Contents
About Your R3000 Robot Vacuum Cleaner Package Contents Robit R3000 Charging Base Remote Control Adapter Cleaning Brush Roller Brush Side Brushes Filter Dust Collector Product Diagram Host chart ON/OFF... - Page 7 Infrared Receiving Sensor Downward Sensor Universal Wheel Electrode Contact Pins Electrode Contact Pins Side Brushes Side Brushes Downward Sensor Downward Sensor Battery Cover Driving Wheel Driving Wheel ON/OFF Roller Brush Dust Collector Charging Dock Signal Emission Area Charging Indicator Electrode Contact Pins...
-
Page 8: Specifications
NOTE: Install a pair of AAA batteries before using the remote control for the first time, please make sure the polarity of the battery is installed correctly. When using the remote control, please point to the robot vacuum, the working distance is 0-5 meters. Specifications Host Model R3000 Input 19V 0.6A Rated Voltage 14.4V Rated Power Battery DC14.4V Li-ion battery 2600mAh... -
Page 9: Instructions Of Indicator Light
When the product is not on the charging base Light off and inactive within 5 minutes, the indicator light will automatically turn off Solid Orange Low Power/ Searching Charging Dock Breathing Red or Solid Red The robot has a problem Using Your R3000 Robot Note Before Use... -
Page 10: Preparation Before Use
Keep the robot away from space lower than 2.4inch/ 80mm to prevent it from being stuck. R3000 robot has anti-drop sensors to prevent it from falling down from heights. It is recommended to set up physical barriers to block off areas where the robot may fall. - Page 11 Connect the plug of the adapter to the power socket of the charging base, and the other end to the wall socket. Warm Reminders: Make sure that the charging base is on when the power is turned on, otherwise, the product cannot be automatically recharged.
-
Page 12: Operation
Operations Guide Start Cleaning Press the once to activate the host. Press the on the host or the on the AUTO remote control to start automatic cleaning. Stop Cleaning Press the on the host or the on the remote control to pause the robot vacuum being cleaned. -
Page 13: Cleaning Mode
Cleaning Mode Automatic Cleaning Mode Press the on the main unit or the on the remote control to start auto- AUTO matic cleaning. If the battery is low before the cleaning is completed, the host will return to the charging base for charging. Warm Reminder: During the recharging process, there may be a phenomenon that the charging base cannot be found. - Page 14 When a specific room needs to be cleaned, press the button on the remote control. Tips: In this mode, the R3000 robot will stop after cleaning about 30 minutes. Please make sure the door is closed to prevent the R3000 from leaving the room.
- Page 15 Time and Schedule Cleaning The host can make schedule settings for the cleaning time. The schedule timing function can only be realized by the remote control. Before making the schedule timing, please ensure that the time of the remote control is consis- tent with your local time.
-
Page 16: Cleaning And Maintenance
Scheduled Cleaning Setting Press the on the remote control, and then start showing one hour in the display to set the cleaning schedule. Press the to select the minute or hour setting. Press the set the desired time. Press the again, when the cleaning plan setting is completed, the machine will emit a beep. - Page 17 Clean Dust Box 1. Press the dust box release 2. Open the lid of the dust box to button to remove it. empty it. Clean Filter 1. Pull the white label to remove 2. Shake off the dust on the filter. the filter.
-
Page 18: Clean Side Brushes
Clean Side Brushes, Roller Brushes, Universal Wheels and Sensors 1. Remove the roller brush and clean the dust suction channel with a cloth. 2. Clean the roller brush. 3. Remove the side brush. Clean Remove the hair from the roller the side brush with a cloth. -
Page 19: Clean Downward Sensor
Trouble Shooting When the machine breaks down, the red LED will flash or be always on when the LED is broken, and it will be accompanied by a beeping sound. Please refer to the following sounds and light flashing tips to solve the problem of the robot vacuum. - Page 20 Prompt Solution 1. Make sure the main switch at the bottom of the host is turned on 2. Make sure the battery is fully charged The host cannot be 3. Replace the remote control with a pair of AAA batteries activated 4.
-
Page 21: Robit Customer Care
Warm Tip: Be sure to use your product as directed. Limitations Our return and exchange service is limited to all purchases made from Robit Direct on Amazon. If you purchased through a different retailer or other stores, please contact them directly.
