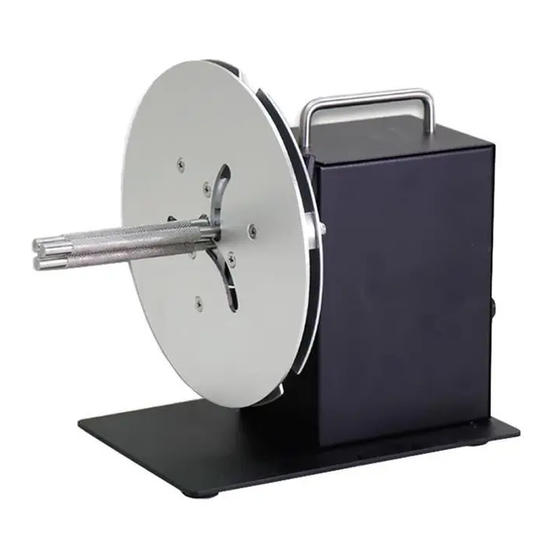

Argox R-412 User Manual

Adjustable Core
Label Rewinder
R-412
User's Guide
Part No: 00-00R4C-030
Revision Date: Jan. 2019

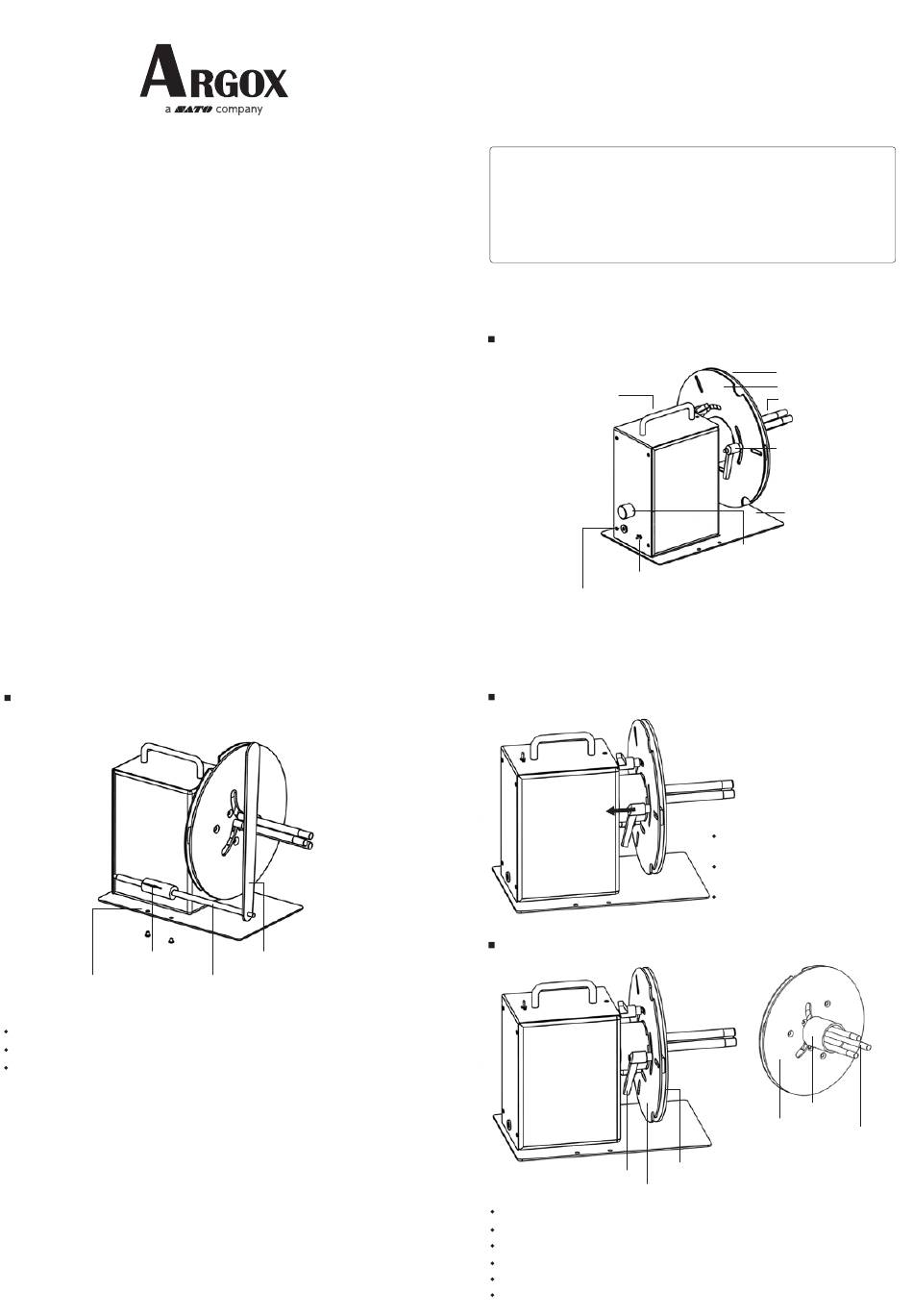

Installation of paper guide module
Fastening screw
Fixed hole position
Hold the paper guide stick against the base plate
Loosen the fastening screw to adjust the width
Move the moveable paper locator to adjustable spindle while rewinding
1
Moveable paper locator
Paper guide stick
3
Thank you for purchasing adjustable core rewinder!
As the company's products is in improving, the product
you purchased may be slightly different from the
instructions in the manual.
Installation Notes
Parts
Handle
Positive and negative switch
Power connector
Adjustable handle adjustment
Core size adjustment and paper core installation or unloading
Adjustable handle
Adjustable disc
Pull the paper core into the adjustable spindle and close to the disc
Rotate 3 adjustable handles counterclockwise to fully release
Grasp the disc
Rotate the adjustable disk
Hold the paper core completely and lock the adjustable handle
Remove one or more adjustable handles to remove the paper core
Disc
Adjustable disc
Adjustable spindle
Adjustable handle
Base plate
Speed adjustable button
2
Adjustable handle too loose or too tight
Pull the adjustable handle in the
direction of the arrow
Rotate the adjustable handle clockwise
or counterclockwise
Adjust to the appropriate position to
release the adjustable handle
Paper core
Disc
Adjustable spindle
Disc
4
